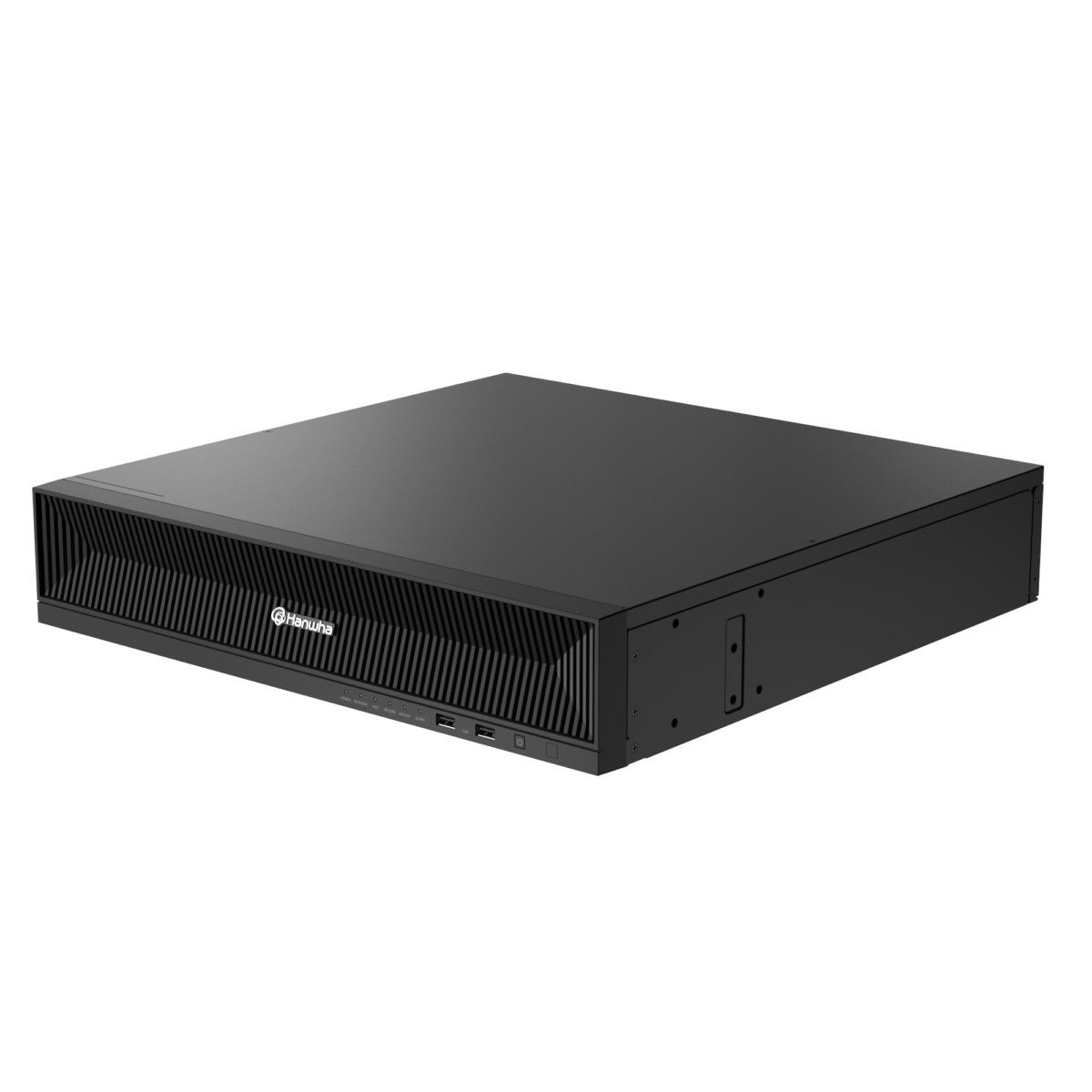

Hanwha Vision XRN-6420B2-20TB 64 Channel NVR with 12th Genration Intel® Processor with 20TB

Name: Hanwha Vision XRN-6420B2-20TB 64 Channel NVR with 12th Genration Intel® Processor with 20TB
Brand: Hanwha Vision
SKU: XRN-6420B2-20TB
Price: 5643.60 USD
Availability: InStock

SKU

XRN-6420B2-20TB

Be the first to review this product

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Hanwha Vision XRN-6420B2-20TB 64 Channel NVR with 12th Genration Intel® Processor with 20TB XRN-6420B2-20TB by Hanwha Vision

Model No

XRN-6420B2-20TB

$5,643.60

Add to Quote

Volume
Discounts

Free System
Design

Lifetime
Tech Support

Free Shipping
Over $450*

Additional Options

Included HDD

No HDD 8TB 10TB 16TB 20TB 32TB 40TB 48TB 60TB 64TB 80TB

Add to Wishlist Add to Compare

Product Highlights

64CH, 32MP resolution
SATA 8 HDD Bays (up to 80TB)
Up to 520Mbps recording / transmission bandwidth
Easy Channel/Event/Alarm configuration
Virtual Channel View

Add to Wishlist Add to Compare

Speak to an expert

Call: 800.955.5201 | Request A Call | Live Chat | Message Support

Details

64 Channel NVR with 12th Genration IntelÂ® Processor with 20TB

The Hanwha Vision XRN-6420B2-20TB is a cutting-edge 64 channel NVR featuring a powerful 12th generation Intel processor, designed for enhanced cybersecurity and operational efficiency. With its NDAA compliance and unique features like the camera setting palette, this NVR simplifies installation and enhances monitoring capabilities for any security setup.

NVR Functions

Alarm Notification by E-mail

Compression Supported

DDNS Functionality

H.264 Compression

H.265 Compression

MJPEG Compression

Supports PTZ Control

Supports the Full HD Output (HDMI)

Two-way Audio

NVR Features


64CH, 32MP resolution	Virtual Channel View
SATA 8 HDD Bays (up to 80TB)	Up to 520Mbps recording / transmission bandwidth
Easy Channel/Event/Alarm configuration

Specifications

SKU	XRN-6420B2-20TB
Manufacturer	Hanwha Vision
IP Channels	64 Channels
Harddrive Size	20TB
Protocols	Samsung protocols, ONVIF Protocols
Features	Alarm Notification by E-mail, Audio, Compression Supported, DDNS Functionality, H.264 Compression, H.265 Compression, MJPEG Compression, Supports PTZ Control, Supports the Full HD Output (HDMI), Two-way Audio
Resolution	32MP ~ CIF
Compression	H.265, H.264, MJPEG
Bandwidth	Distributed mode : Up to 520 Mbps, Normal mode : Up to 300 Mbps
Operating temperature	0°C to +40°C(32℉ to 104℉)
Dimensions	438 x 86 x 434.9 mm
Voltage	100 ~ 240 VAC ±10%; 50/60 Hz, 1.5A
Power Consumption	Max. 143W (488BTU with HDD 8ea)
SATA	SATA 8ea(Max. 80TB)
USB	4EA(Front 2 x USB 2.0, Rear 2 x USB 3.0)
Audio	Out 1EA (3.5mm Audio Jack)
Compression Supported	Yes
DDNS Functionality	Yes
Supports the Full HD Output (HDMI)	Yes
Two Way Audio	Yes
Supports PTZ Control	Yes
H.264 Compression	Yes
H.265 Compression	Yes
MJPEG Compression	Yes
