Samsung WRR-P-S206S-352TB Wisenet WAVE Optimized 2U Rack Server, 352TB
SKU
WRR-P-S206S-352TB
Model No
WRR-P-S206S-352TB
$41,406.77
Product Highlights
- Preloaded and configured with Wisenet WAVE video management system
- 470 Mbps of recording throughput
- Pre-configured for RAID 6
- Up to 416TB of Raw Storage, 26 hot-swap hard drives
- Supports RAID 0, 1, 5, 6, 10 configurations
Speak to an expert

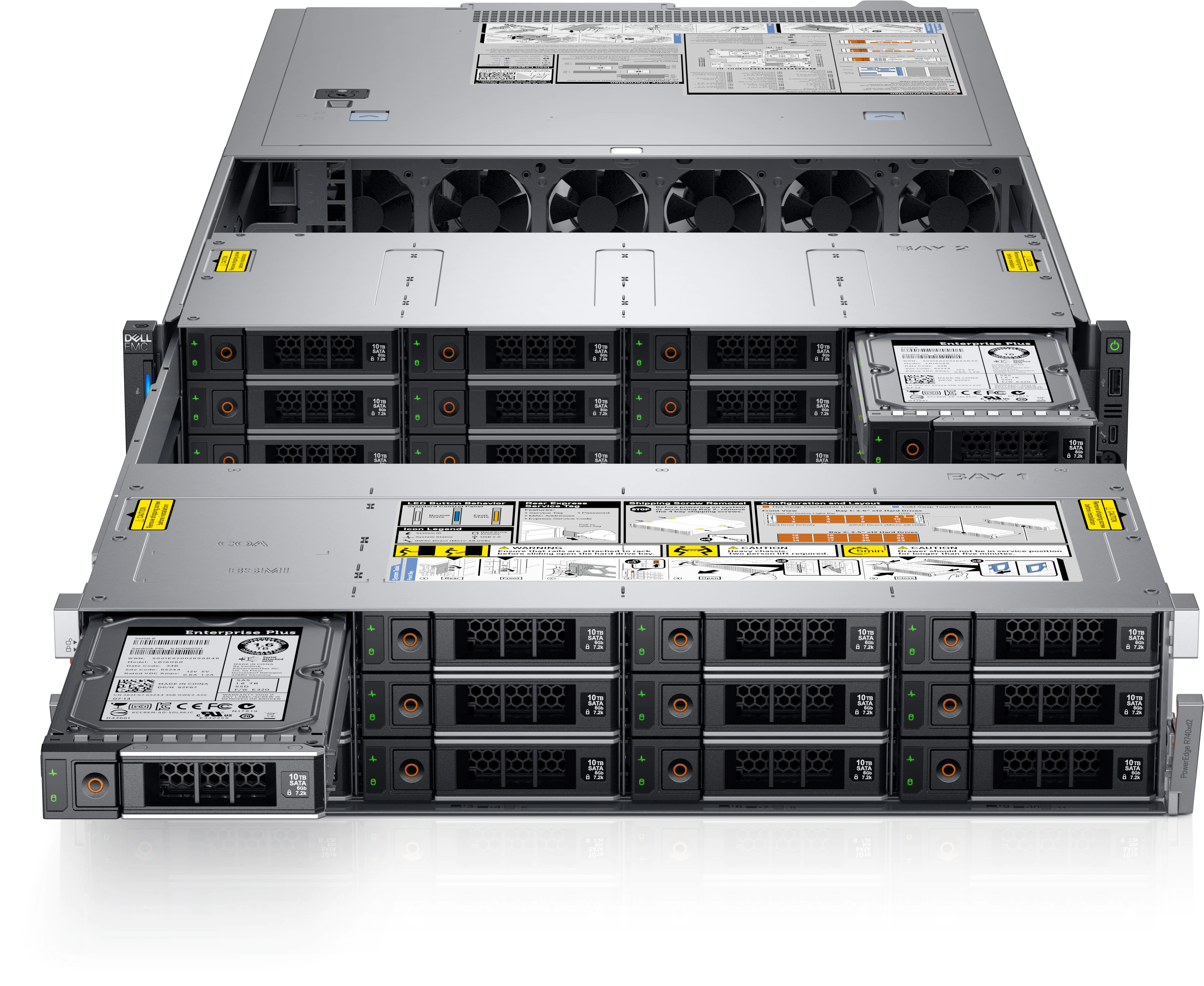

This Hanwha Vision WRR-P-S206S-352TB Wisenet WAVE Optimized 2U Rack Server is designed for entry-level deployments that require reliable, high-capacity video storage. With a robust Intel® Xeon® Silver 4216 Series Processor and 32GB of DDR4 RAM, it offers powerful performance and scalability. The server features up to 416TB of raw video-optimized storage supported by 24/7 duty cycle SATA drives, making it ideal for continuous data recording. Its pre-installed Wisenet WAVE video management system ensures quick setup and deployment, while the 5-year warranty provides peace of mind.
Hanwha Vision WRR-P-S206S-352TB Key Features
- Preloaded and configured with Wisenet WAVE video management system for seamless integration and easy deployment.
- 470 Mbps of recording throughput ensures high-performance video processing, capable of handling multiple streams.
- Pre-configured for RAID 6, offering a balance of performance and data redundancy for enhanced reliability.
- Up to 416TB of raw storage with 26 hot-swap hard drives allows for flexibility and easy maintenance without downtime.
- Supports various RAID configurations (0, 1, 5, 6, 10) for tailored storage solutions based on user needs.
- Equipped with SSD and 24/7 duty cycle SATA drives for optimal speed and reliability during continuous operation.
- Dedicated GPU for client applications enhances graphical performance for video playback and management.
- IPMI Management provides remote management capabilities for better operational control.
- Includes USB mouse and keyboard for immediate use right out of the box.
- Comes with Sliding Rack Rail and Cable Management Arm for organized installation and maintenance.
- 5-Year, On-site, Next Business Day, Keep Your Hard Drive Warranty guarantees support and service.
- Compatible with Wisenet and ONVIF conformant IP cameras for versatile surveillance options.
- Configured with Windows Server 2019 Standard to support a wide range of applications.
Hanwha Vision WRR-P-S206S-352TB Detailed Specifications
| Product Model | Hanwha Vision WRR-P-S206S-352TB |
| Processor | Intel® Xeon® Silver 4216 Series |
| RAM | 32GB DDR4 |
| Storage Capacity | Up to 416TB (raw) |
| Drive Configuration | 26 hot-swap SATA drives |
| Recording Throughput | 470 Mbps |
| RAID Support | 0, 1, 5, 6, 10 (Pre-configured for RAID 6) |
| Operating System | Windows Server 2019 Standard |
| Warranty | 5-Year, On-site, Next Business Day, Keep Your Hard Drive |
| Management | IPMI Management |
| Included Accessories | USB mouse, keyboard, Sliding Rack Rail, Cable Management Arm |
SKU  | WRR-P-S206S-352TB |
|---|---|
| Manufacturer | Hanwha Vision |
| Harddrive Size | 352TB |
| Protocols | Samsung protocols, ONVIF Protocols |
| Features | H.264 Compression, Redundant Power |
Compression  | H.264 |
| Bandwidth | Up to 470 Mbps |
| Operating temperature | Standard: 50°F ~ 95°F) (10°C ~ 35°C) at 10% to 80% RH with 84.2°F maximum dew point. Refer to manual for operating temperature derating. Extended: 40°F ~ 104°F (5°C ~ 40°C) at 5% to 85% RH with 84.2°F dew point. |
| Dimensions | 17.6" (448mm) x 31.9" (810mm) x 3.4" (86.8mm), *Not including handles, latches or bezel |
| Voltage | 115/230 VAC |
| Power Consumption | Maximum 1100W each PSU |
| Network | 2 x RJ45 Gigabit Ethernet / 2 x 10GbE SFP+ Ports |
| USB | 2 x USB 3.0 (Rear), 2 x USB 2.0 (Front), 1 x USB 3.0 (Internal) |
| Redundant Power | Yes |
| Supports the Full HD Output (HDMI) | Yes |
| H.264 Compression | Yes |
