Hanwha Vision WRR-P-E200L3-48TB Wisenet WAVE Optimized 1U Rack Server, 48TB
SKU
WRR-P-E200L3-48TB
Model No
WRR-P-E200L3-48TB
$7,631.16
Product Highlights

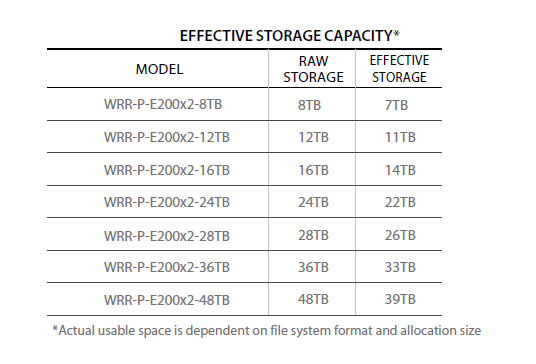

- Up to 48TB of Raw Storage
- 470 Mbps of recording throughput
- SSD & 24/7 Duty Cycle SATA Drives
- Dedicated GPU for client application
- Shallow Depth Server
Speak to an expert
This Hanwha Vision WRR-P-E200L3-48TB Wisenet WAVE Optimized 1U Rack Server is designed for affordable and reliable entry-level deployments, featuring up to 48TB of video-optimized storage with 24/7 duty cycle SATA drives. Powered by the latest Intel® Xeon® Processor and equipped with 16GB of DDR4 RAM, this server ensures high performance and scalability. A dedicated solid-state drive for applications guarantees fast boot and load times, while the included five-year on-site warranty provides peace of mind. Pre-configured with Wisenet WAVE VMS and four Professional licenses, this server allows for quick and easy deployment.
Key Features of Hanwha Vision WRR-P-E200L3-48TB Rack Server
- Up to 48TB of Raw Storage for extensive video data management, ensuring ample space for high-resolution recordings.
- 470 Mbps of recording throughput allows for smooth, uninterrupted video capture, making it ideal for security applications.
- SSD & 24/7 Duty Cycle SATA Drives provide reliable performance and optimized storage for continuous operation.
- Dedicated GPU for client application enhances graphics performance, improving user experience during video playback and analysis.
- Shallow Depth Server fits easily into standard racks, maximizing space efficiency in server rooms.
- Includes USB mouse and keyboard for immediate usability right out of the box.
- Includes Sliding Rack Rail with Cable Management Arm for organized installation and easy access to server components.
- 5-Year, On-site, Next Business Day, Keep Your Hard Drive Warranty ensures quick replacements and minimal downtime.
- Supports Wisenet and ONVIF conformant IP cameras for flexible integration with various surveillance systems.
- IPMI Management allows for remote monitoring and management, enhancing operational efficiency.
- Powered by Ubuntu Linux 20.04 LTS Operating System, providing a stable and secure environment for applications.
Detailed Specifications of Hanwha Vision WRR-P-E200L3-48TB Rack Server
| Model | WRR-P-E200L3-48TB |
| Storage Capacity | Up to 48TB |
| Recording Throughput | 470 Mbps |
| RAM | 16GB DDR4 |
| Processor | Intel® Xeon® Processor |
| Operating System | Ubuntu Linux 20.04 LTS |
| Warranty | 5-Year, On-site, Next Business Day |
| GPU | Dedicated for client application |
| IP Camera Support | Wisenet and ONVIF conformant |
| Management | IPMI Management |
| Included Accessories | USB mouse, keyboard, Sliding Rack Rail with Cable Management Arm |
SKU  | WRR-P-E200L3-48TB |
|---|---|
| Manufacturer | Hanwha Vision |
| Harddrive Size | 48TB |
| Protocols | Samsung protocols, ONVIF Protocols |
| Features | Supports the Full HD Output (HDMI) |
| Bandwidth | Up to 470 Mbps |
| Operating temperature | Standard: 50°F ~ 95°F (10°C ~ 35°C) at 10% to 80% RH with 84.2°F maximum dew point. Extended: 40°F ~ 104°F (5°C ~ 40°C) at 5% to 85% RH with 84.2°F dew point. |
| Dimensions | 19" (482.6mm) x 24.2" (614.68mm) x 1.67" (42.8mm) |
| Voltage | 100 ~ 240V AC |
| Power Consumption | Maximum 450W |

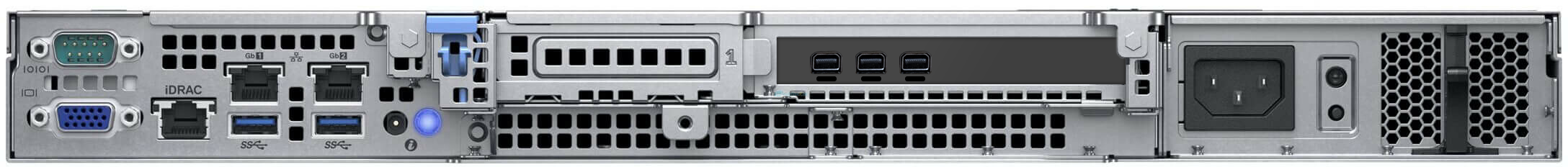

| Network | 2 x RJ45 Gigabit Ethernet |
USB  | 1x USB 2.0 (Front),1x USB 3.0 (Rear), 1x USB 2.0 (Rear) |
| Supports the Full HD Output (HDMI) | Yes |
