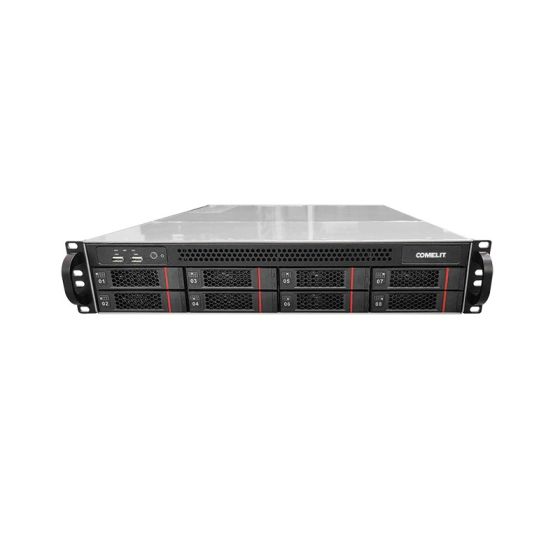

Comelit SRV-VMS1000A Management, Archive, Transfer Server

SRV-VMS1000A is an "All-in-One” management, transferral and archiving server / client. It incorporates housing for 8 HDD (3.5") of max. 10 TB each and is specifically designed for medium and large video surveillance applications. The pre-installed Comelit CCTV manager VMS software allows full management of the entire video surveillance system. Supports ONVIF protocol, automatic search for devices in the network and video analysis management. Incoming bandwidth 768 Mbps, outgoing bandwidth 256 Mbps, archiving bandwidth 512 Mbps, manages up to 1000 channels on the device, 256 devices and records up to 128 channels. ARM 8-core 64bit AI high-performance CPU, memory DDR4 8 Gb, VGA interfaces, 4x HDMI, 4x USB, 2x RJ45. Rack cupboard mounting backplates included. Not compatible with other servers in the Platform Products series.

Features

• CPU; ARM 8-core 64bit AI high performance
• OS; Linux
• Pre-installed VMS software; Comelit CCTV Manager VMS Pro (server)
• Memory; LPDDR4 8G, 64GB EMMC
• HDD; 8x SATA3.0, up to 10TB per HDD; Supports RAID 0,1,5,6,10
• Network Interface; 2x RJ45 10M/100M/1000M Ethernet ports
• Video Interface; HDMI1 (3840x2160, main output), VGA (1920x1080, main output), HDMI2 (3840x2160, spot monitor), HDMI3 (3840x2160, spot monitor), HDMI4 (1920x1080, spot monitor)
• 1-Audio Input
• Alarm Input/Output; 16 / 8
• Other Interfaces; 1x USB 3.0, 3x USB 2.0
