RVS Systems RVS-5530-05 MobileMule 5 Channel Mobile DVR with GPS and Live Video Remote Viewing
- 4-channel video inputs and additional ethernet port for IP camera
- Live video remote viewing
- Hard Drive- Up to 1TB
- SD Capacity - 128GB

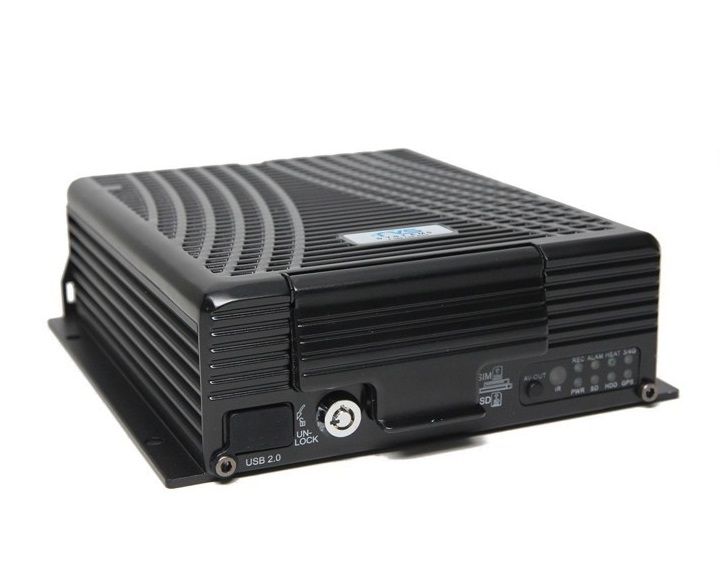

The RVS-5530-05 from RVS Systems is a mobile DVR designed for on-board vehicle recording which comes with remote live video viewing. Users can access, View, and download real-time footage from any location including inside the vehicle! Up to four cameras connect to four ports for simultaneous recording and a forward facing IP camera connects to an Ethernet port.
The system comes with GPS to record the vehicle location and driving route. Footage records on a 1TB Western Digital hard drive and for extra ease of mind, backup 128 GB of footage to an SD card (sold separately). Even in a power failure, you’ll be covered. With a solid and compact build, the MobileMule 5530 is vibration-proof, installation-friendly and combines powerful functions together with a stable performance.

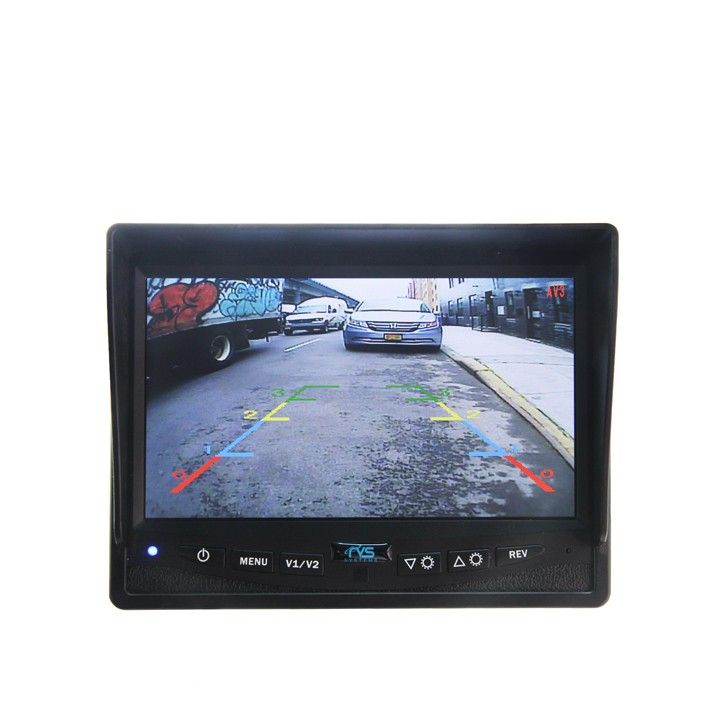

The DVR comes with a Western Digital Hard Drive which is 2.5 inch, 5400 RPM, SATA II 1TB hard drive which is built for reliability and can hold hundreds of hours of HD video and also with 7" LED Digital Panel Color Monitor with a Super Sharp Digital Display and a pixel resolution of 800 X 3 (RGB) X 480. The distance grid lines that come standard with this monitor can be turned on or off. It has built-in speakers and with RCA inputs can display any camera with RCA connections and wireless Jetpack.
RVS Systems RVS-5530-05 Camera Features
Features
- 4-channel video inputs: Connect up to four cameras for simultaneous recording, providing comprehensive coverage of your vehicle's surroundings.
- Live video remote viewing: Monitor and access real-time footage from anywhere, enhancing security and oversight.
- Hard Drive Capacity: A robust 1TB hard drive that can store hundreds of hours of HD video, ensuring you never miss important footage.
- SD Card Capacity: Additional support for 128GB SD card backup allows for extended monitoring and easy data access.
RVS Systems RVS-5530-05 Detailed Specifications
| Feature | Details |
| Model | RVS-5530-05 |
| Channels | 5 (4 channel video inputs + 1 Ethernet for IP camera) |
| Storage | 1TB Western Digital Hard Drive, 2.5 inch, 5400 RPM, SATA II |
| Backup Capacity | 128GB SD card support (sold separately) |
| GPS Functionality | Records vehicle location and driving route |
| Monitor | 7" LED Digital Panel Color Monitor, pixel resolution of 800 x 3 (RGB) x 480 |
| Audio | Built-in speakers |
| Camera Compatibility | RCA inputs for camera display and wireless Jetpack connectivity |
| Durability | Vibration-proof and installation-friendly design |
