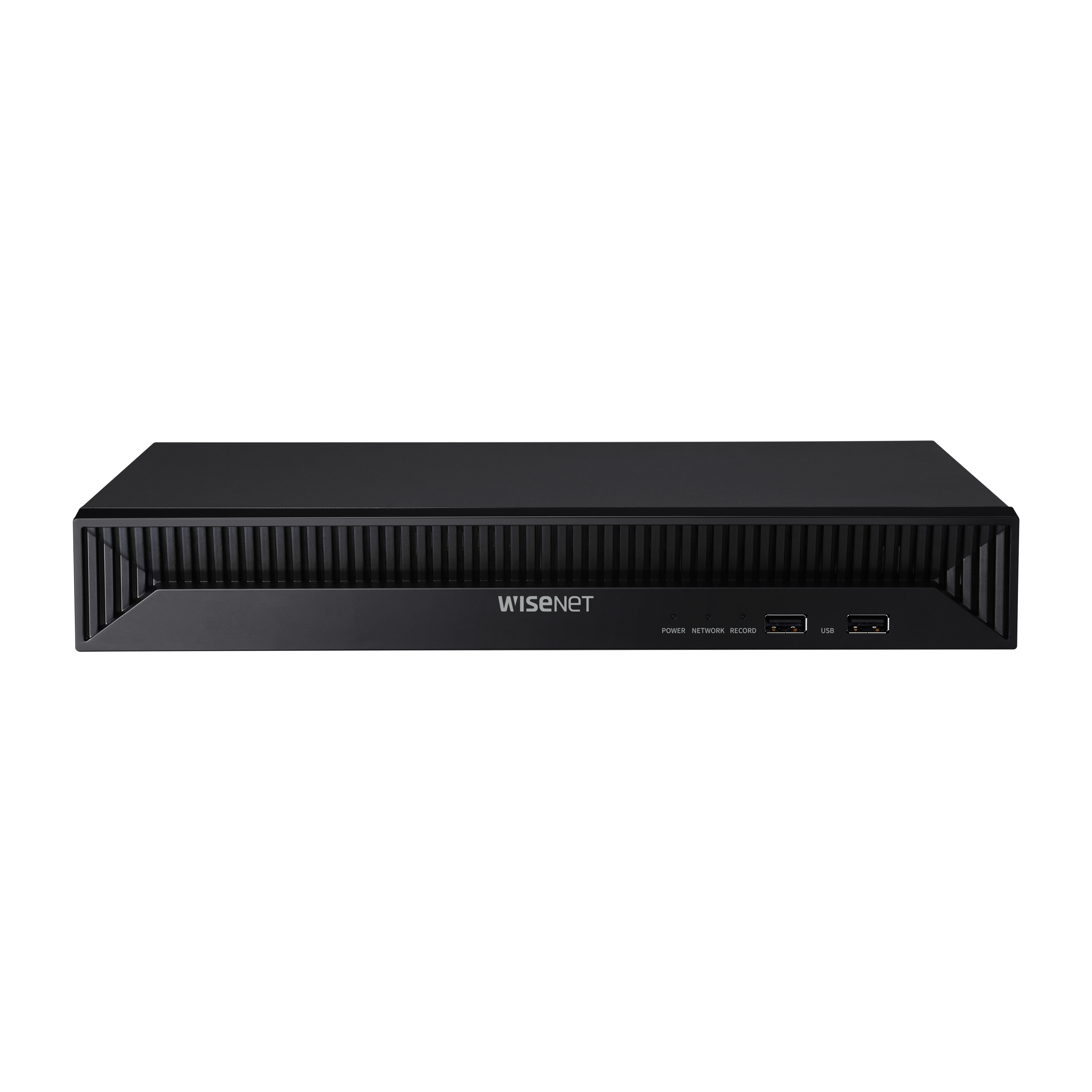

Hanwha Vision QRN-830S-6TB 8 Channel PoE NVR, 6TB
SKU
QRN-830S-6TB
Model No
QRN-830S-6TB
$1,148.17
Product Highlights
- Up to 8 channels, 8 megapixel supported
- H.265, H.264, MJPEG codec supported
- 80Mbps network camera recording
- Plug & play with 8 PoE+ ports, 65W budget
- Maximum 1 HDD (up tp 6Tb) supported
Speak to an expert
8 Channel PoE NVR, 6TB
- The QRN-830S-6TB from Hanwha Vision is a powerful 8 channel PoE NVR with a robust 6TB storage capacity, designed to efficiently manage and record high-resolution video surveillance. With its user-friendly plug-and-play setup and support for multiple codecs, this NVR ensures seamless integration and optimal performance for your security needs.
NVR Functions
Alarm Notification by E-mail
Compression Supported
DDNS Functionality
H.264 Compression
H.265 Compression
MJPEG Compression
Supports PTZ Control
Supports the Full HD Output (HDMI)
Two-way Audio
NVR Features
| Up to 8 channels, 8 megapixel supported | Maximum 1 HDD (up tp 6Tb) supported |
| H.265, H.264, MJPEG codec supported | HDMI local monitor with 4K resolution |
| 80Mbps network camera recording | P2P service (QR code connect) support for Wisenet mobile / Wisenet Viewer |
| Plug & play with 8 PoE+ ports, 65W budget | Dual track recording, 4K HDMI monitor out |
Additional Hanwha Vision Products
SKU  | QRN-830S-6TB |
|---|---|
| Manufacturer | Hanwha Vision |
| IP Channels | 8 Channels |
| Harddrive Size | 6TB |
| Protocols | Samsung protocols, ONVIF Protocols |
| Features | Alarm Notification by E-mail, Audio, Compression Supported, DDNS Functionality, H.264 Compression, H.265 Compression, MJPEG Compression, Supports PTZ Control, Supports the Full HD Output (HDMI), Two-way Audio |
Resolution  | 8MP |
| Compression | H.265, H.264, MJPEG |
| Bandwidth | Max. 128Mbps |
| Operating temperature | 0°C to +40°C(32℉ to 104℉) |
| Dimensions | 300 x 47.6 x 238.9 mm (11.8 x 1.9 x 9.4 inch) |
| Voltage | 54VDC / 1.55A |
| Power Consumption | Max 84W (287 BTU with 1HDD, PoE ON) |
| Network | PoE RJ-45 8EA (LAN, 10/100), RJ-45 1ea (LAN/WAN 1Gbps) |
| SATA | SATA 1ea(up to 6TB) |
| USB | 2EA(Front 2 x USB 2.0) |
| Compression Supported | Yes |
| Alarm Notification by E-mail | Yes |
| DDNS Functionality | Yes |
| Supports the Full HD Output (HDMI) | Yes |
| Two Way Audio | Yes |
| Supports PTZ Control | Yes |
| H.264 Compression | Yes |
| H.265 Compression | Yes |
| MJPEG Compression | Yes |
