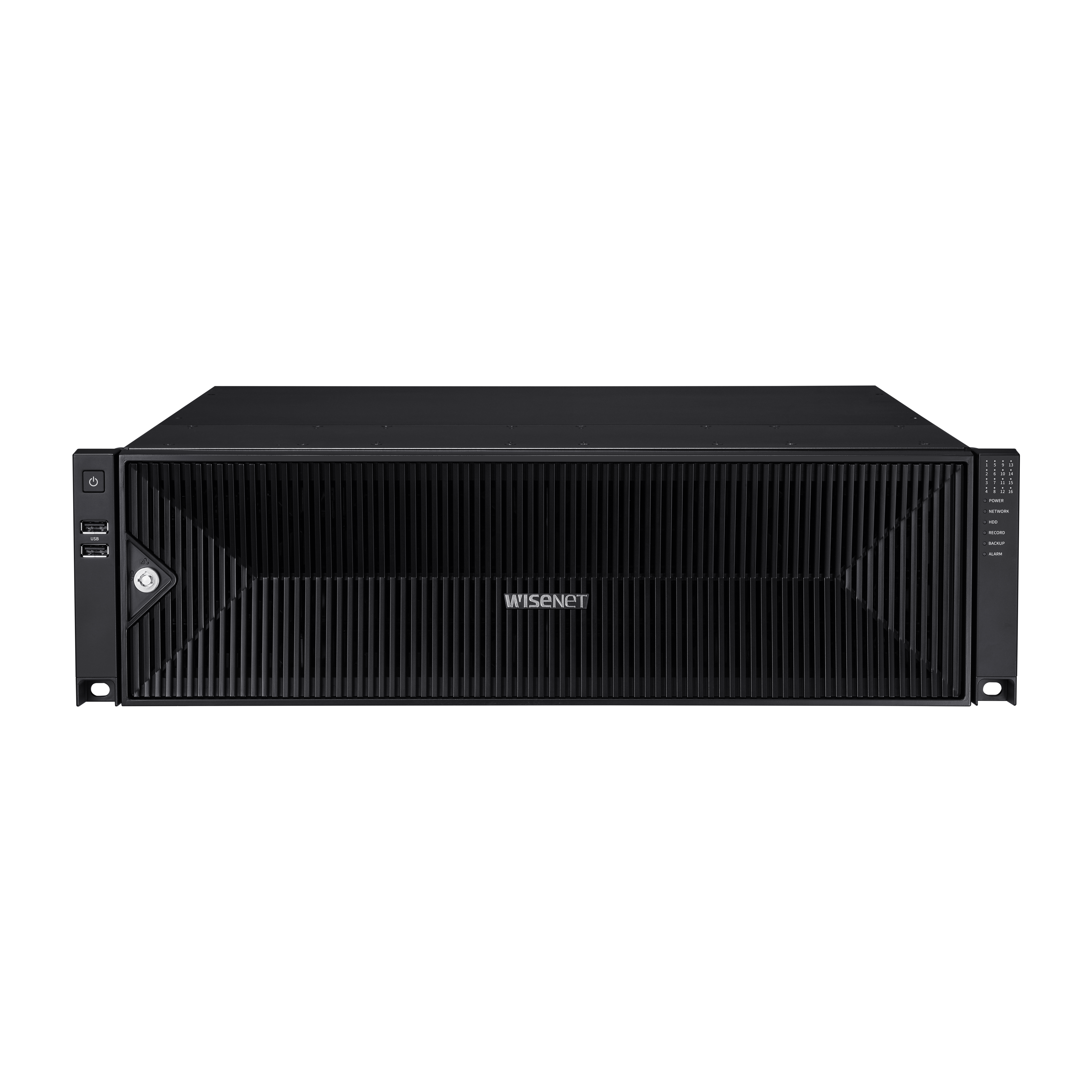

Samsung PRN-6400DB4-96TB 64 Channel 8K 400Mbps H.265 AI NVR, 96TB
SKU
PRN-6400DB4-96TB
Model No
PRN-6400DB4-96TB
$21,479.50
Product Highlights
- 8K NVR, up to 64 channels, License-free recording
- Supports H.265, H.264, & MJPEG CODECs,
- Up to 16 fixed internal SATA HDDs (10TB max per HDD), RAID 5 & 6 recording
- ARB (Automatic Recovery Backup)
- 400 Mbps recording / up to 32 Mbps playback
Speak to an expert
Hanwha Vision 64 Channel 8K 400Mbps H.265 AI NVR, 96TB
- The PRN-6400DB4-96TB from Hanwha Vision is a high-performance 64 channel 8K NVR that offers an impressive 400Mbps recording capability with H.265 compression technology. With a massive 96TB storage capacity and advanced AI features, this NVR is designed for seamless integration and superior surveillance performance.
NVR Functions
Alarm Notification by E-mail
Compression Supported
DDNS Functionality
H.264 Compression
H.265 Compression
MJPEG Compression
Supports PTZ Control
Supports the Full HD Output (HDMI)
Two-way Audio
NVR Features
| 8K NVR, up to 64 channels, License-free recording | HDMI/VGA dual display, max. resolution of 32MP recording/display |
| Supports H.265, H.264, & MJPEG CODECs, | Add AI search capabilities to select P, X and Q series Hanwha Cameras |
| Up to 16 fixed internal SATA HDDs (10TB max per HDD), RAID 5 & 6 recording | AI search (Wisenet AI cameras only) |
| ARB (Automatic Recovery Backup) | web UI 2.0 (no plugins required) |
| 400 Mbps recording / up to 32 Mbps playback | P2P / QR Code for easy connection to Wisenet Viewer / Wisenet Mobile |
| Dual stream recording, WiseStream technology | NDAA & FCC Compliant |
Additional Hanwha Vision Products
SKU  | PRN-6400DB4-96TB |
|---|---|
| Manufacturer | Hanwha Vision |
| NDAA | Compliant |
| IP Channels | 64 Channels |
| Harddrive Size | 96TB |
| Protocols | Samsung protocols, ONVIF Protocols |
| Features | Alarm Notification by E-mail, Audio, Compression Supported, DDNS Functionality, H.264 Compression, H.265 Compression, MJPEG Compression, Supports PTZ Control, Supports the Full HD Output (HDMI), Two-way Audio |
Resolution  | 32MP |
| Compression | H.265, H.264, MJPEG, WiseStream(H.265, H.264) |
| Bandwidth | Max. 64Mbps(64CH simultaneously) |
| Operating temperature | 0°C to +40°C(32℉ to 104℉ |
| Dimensions | 440.0 x 132.0 x 571.1mm |
| Voltage | 100 ~ 240 VAC ±10%; 50/60 Hz (Dual SMPS) |
| Power Consumption | Max. 285W (972.5 BTU with HDD 16ea) |
| Network | RJ-45 3EA (LAN/WAN, 1Gbps) |
| SATA | SATA 16ea (Up to 160TB) |
| USB | 4EA(Front 2 x USB 2.0, Rear 2 x USB 3.0) |
| Compression Supported | Yes |
| Alarm Notification by E-mail | Yes |
| DDNS Functionality | Yes |
| Supports the Full HD Output (HDMI) | Yes |
| Two Way Audio | Yes |
| Supports PTZ Control | Yes |
| H.264 Compression | Yes |
| H.265 Compression | Yes |
| MJPEG Compression | Yes |
