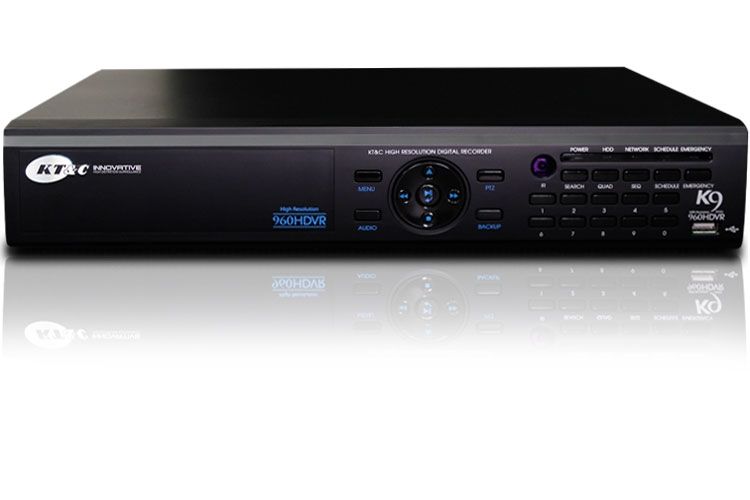

KT&C K9-A400-1TB 4 Channel 960H Real-time DVR, 1TB
SKU
K9-A400-1TB
Model No
K9-A400-1TB
$240.00
Product Highlights
- 4CH WD1 960 x 480 recording delivers 36% more detail than traditional 4 CIF (704 x 480)
- H.264 Compression for efficient HDD utilization
- WD1 real-time live display, recording and playback on all channels
- HDMI + VGA + BNC main monitor outputs support any type of display
- Call monitor: additional composite BNC output for sequential and/or event camera display
Speak to an expert
The K9-A400-1TB from KT&C is a sophisticated 4 Channel 960H Real-time DVR with a generous 1TB storage capacity, ideal for any security setup. It offers enhanced recording quality, versatile connectivity options, and user-friendly features that make monitoring and managing your security more efficient than ever.
Features
- Enhanced Recording: 4CH WD1 960 x 480 recording delivers 36% more detail than traditional 4 CIF (704 x 480)
- Efficient Storage: H.264 Compression for effective HDD utilization
- Real-time Performance: WD1 real-time live display, recording, and playback on all channels
- Versatile Outputs: HDMI + VGA + BNC main monitor outputs support any type of display
- Additional Monitoring: Call monitor with composite BNC output for sequential and/or event camera display
- High Bandwidth Recording: Simultaneous recording (480 NTSC / 400 PAL @WD1) with dual-codec for efficient remote viewing
- Pentaplex Operation: Simultaneous live monitoring, recording, playback, archiving, and remote viewing
- Smart Searching: Search video by date and time, alarm/event, or scan via color-coded graphical display
- Reliable Remote Access: Free DDNS Service eliminates the need for a static IP address
- User-friendly Interface: Intuitive GUI with graphical icons and visual indicators
- Expandable Storage: Accepts dual internal 3 TB HDDs, supports eSATA external HDD (up to 3 TB)
- Mobile App Support: Free iOS and Android app for live & playback viewing with audio and control features
- Diverse Control Options: Multiple control inputs: mouse, front panel, handheld IR remote controller
- Remote Configuration: Built-in web interface and free CMS program for configuration support
- Gigabit Ethernet: Interface for remote network viewing and control
- PTZ Control: On-screen PTZ control via mouse or front panel
- DVD Burner Option: Built-in DVD burner replaces one HDD (optional)
- Audio Features: Four channel audio recording capabilities and two-way audio
- USB Connectivity: USB 2.0 ports for video archive and mouse usage
- Multi-Monitor Support: Free Windows CMS displays up to 1024 cameras
- Mac Compatibility: Free MAC Client software for individual site connection
- Language Options: Multi-language support available
- Rack Mountable: 19” rack mountable with rack ears included
- Included Accessories: USB mouse, IR remote, and 4GB USB memory included
KT&C K9-A400-1TB Detailed Specifications
| Product Type | 4 Channel 960H Real-time DVR |
| Storage Capacity | 1TB HDD |
| Recording Resolution | WD1 960 x 480 |
| Compression Type | H.264 |
| Live Display & Playback | Simultaneous on all channels |
| Monitor Outputs | HDMI, VGA, BNC |
| Remote Access | Free DDNS Service |
| Audio Recording | Four channel recording capabilities |
| Control Options | Mouse, IR remote, front panel |
| Networking | Gigabit Ethernet |
| Mobile App | Free iOS and Android compatible |
| Weight | 4.5 lbs |
| Dimensions | 15" x 12" x 2.5" |
SKU  | K9-A400-1TB |
|---|---|
| Manufacturer | KT&C |
Number Of Channels  | 4 Channel |
| Video Output Connection | BNC, HDMI, VGA |
| Recording FPS (Per Channel) | 30 FPS @ 960H |
| Compression Method | H.264 |
| Computer Connectivity | MAC OSX, Windows PC |
| Mobile Platform | Android, Iphone |
| Mobile connectivity | Mobile Apps |
| External Backup | DVD, eSATA, USB |
| Harddrive Size | 1TB |
| Alarm In/Out | 4/1 |
| Features | Audio, Audio Recording Capability, Bi-Directional Audio Communication, Dual Streaming, Email Notifications, Free DDNS, Multi-Language Support, Multi-Zone Video Motion Detection, OSD PTZ Controls, PTZ Support, Rack Mountable, USB Mouse & IR Remote Control Included |
| Audio Input (RCA) | 4 x RCA Line Level Inputs |
| Control PTZ via OSD | Yes (via both local and remote interfaces) |
| Maximum Recording Rate & Resolution | 120 FPS @ 960H |
| Monitor Output | HDMI / VGA (1080p – 1920 x 1080) & BNC (CVBS) |
| Network | 1 Gigabit Ethernet |
| Pre-event & Post-event Recording | Pre (10 second) & Post (30 second ~ 30 minute) |
| Record Speed (NTSC/PAL) fps max. | 120 NTSC / 100 PAL |
| Supported PTZ Protocols | Pelco D & P, Fastrax, Samsung, Philips, Honeywell, LG, DM; others (consult User Guide) Separate reverse control option for pan and tilt |
| Video Input / Loop Output | 4 Channel |
| Video Inputs | 4 Channel |
| Audio | Yes |
| PTZ Support | Yes |
| Rack Mountable | Yes |
| Bi-Directional Audio Communication | Yes |
| Audio Recording Capability | Yes |
| Multi-language Support | Yes |
| USB mouse & IR remote Control Included | Yes |
| OSD PTZ Controls | Yes |
| Dual Streaming | Yes |
| Email Notifications | Yes |
| Free DDNS | Yes |
| Multi-Zone Video Motion Detection | Yes |
