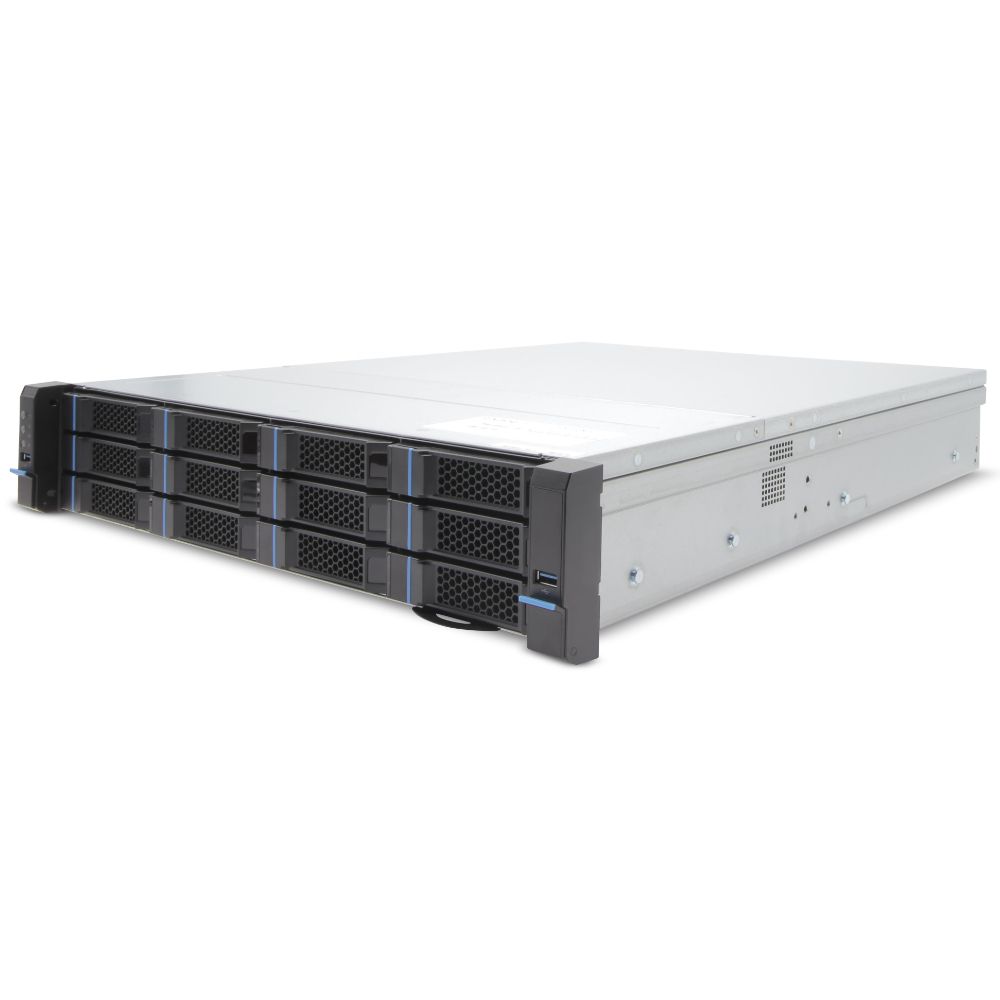

Exacq IP01-80T-FAL IP 2U Rackmount Frontload A-Series NVR with 1 IP Professional License (150 max), Linux, 80TB
SKU
IP01-80T-FAL
Model No
IP01-80T-FAL
$23,241.00
Product Highlights
- Configure from 64 to 240TB, multiple Operations Systems and camera licenses
- High performance throughput up to 750 Mbps
- 1 camera license of either Professional or Enterprise preloaded with a nonexpiring SSA included
- Configurable up to RAID 6 for storage and RAID1 for OS redundancy
- Performing system maintenance has never been easier with front up to 12 hot swappable drives
Speak to an expert
The Exacq IP01-80T-FAL is a robust 2U rackmount NVR designed for high-performance video surveillance. With an impressive 80TB of storage and an expandable capacity of up to 240TB, it supports large-scale deployments while ensuring seamless operational efficiency and ease of maintenance. Ideal for professional security applications, this NVR is equipped with cutting-edge technology to manage multiple camera licenses and ensure reliable performance in demanding environments.
Exacq IP01-80T-FAL Camera Features
- Expandable Storage: Configure from 64 to 240TB, allowing flexibility in storage capacity to meet various surveillance needs.
- High Throughput: Achieve high performance throughput of up to 750 Mbps, ensuring smooth video streaming and recording even with multiple cameras.
- Preloaded Camera License: Comes with 1 camera license of either Professional or Enterprise edition, preloaded with a non-expiring SSA for immediate use.
- RAID Configuration: Supports configurable RAID 6 for storage and RAID 1 for operating system redundancy, providing data protection and reliability.
- Easy Maintenance: Features front access with up to 12 hot-swappable drives, simplifying system maintenance and upgrades without downtime.
Exacq IP01-80T-FAL Detailed Specifications
| Model | Exacq IP01-80T-FAL |
| Storage Capacity | 80TB (expandable up to 240TB) |
| Max Throughput | 750 Mbps |
| Camera Licenses | 1 Professional/Enterprise license included |
| RAID Configuration | RAID 6 for storage, RAID 1 for OS redundancy |
| Drive Access | Front access, up to 12 hot-swappable drives |
| Operating System | Linux |
SKU  | IP01-80T-FAL |
|---|---|
| Manufacturer | Exacq |
| NDAA | Compliant |
| Harddrive Size | 80TB |
| Protocols | EXACQ Protocols |
| Features | Compression Supported, H.264 Compression, H.265 Compression, MJPEG Compression, Supports the Full HD Output (HDMI) |
Compression  | H.265|H.264|M-JPEG |
| Operating temperature | 40°F - 95°F 4.5°C - 35°C |
| Dimensions | D: 584.2 mm (23 in), W: 482.6 mm (19 in), H: 88.9 mm (3.5 in) |
| Voltage | 100-240vac |
| Compression Supported | Yes |
| Supports the Full HD Output (HDMI) | Yes |
| H.264 Compression | Yes |
| H.265 Compression | Yes |
| MJPEG Compression | Yes |
