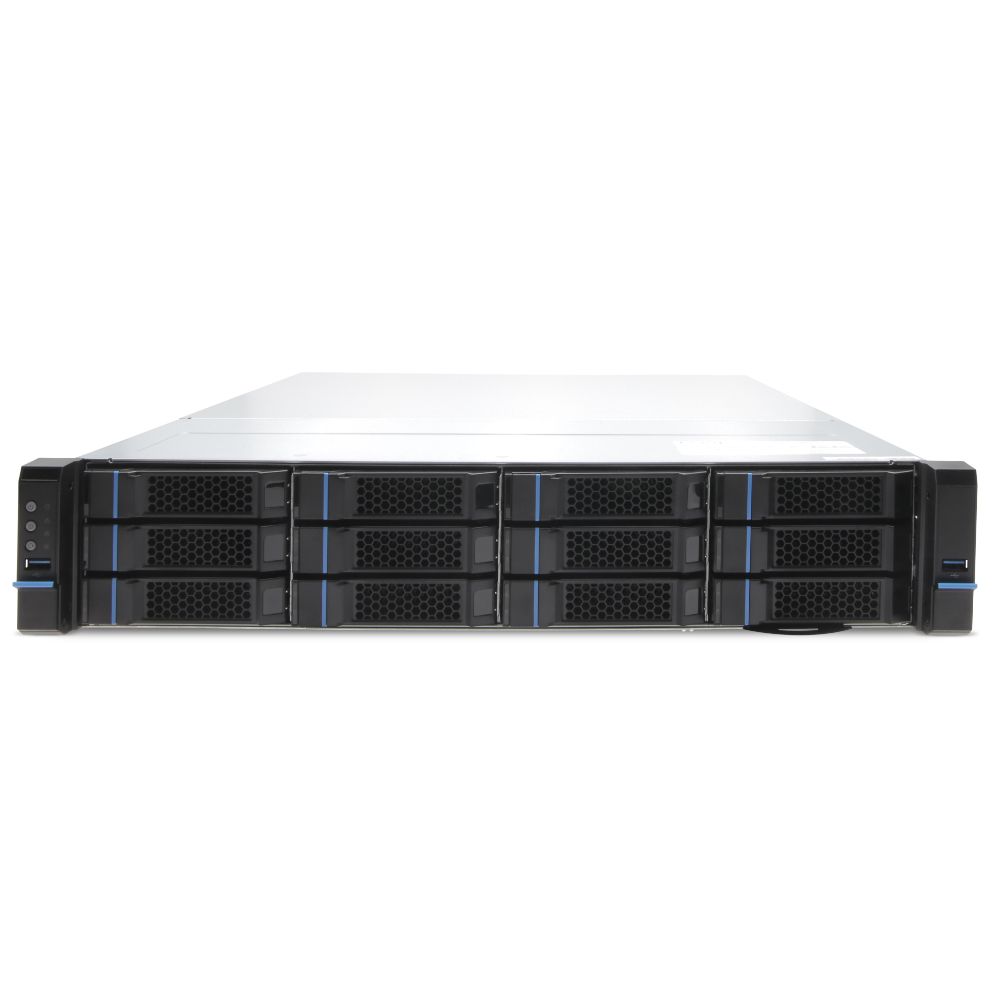

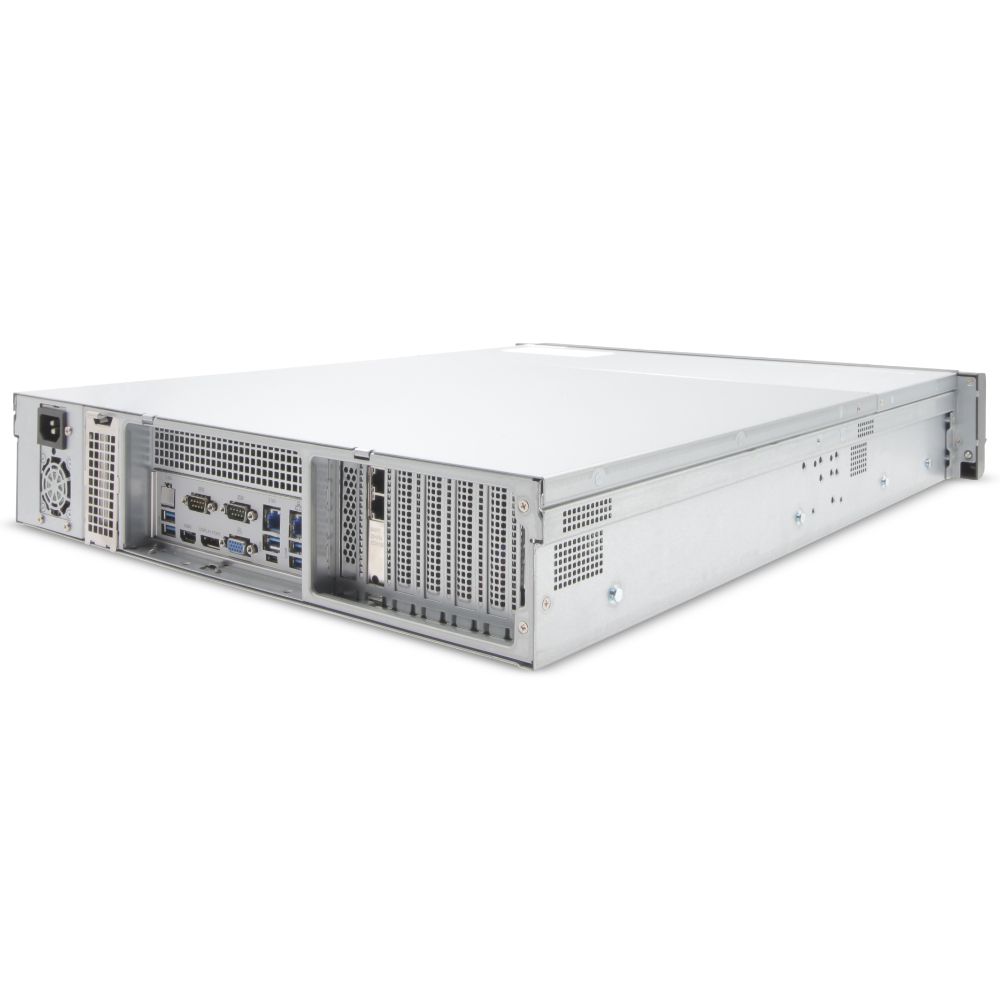

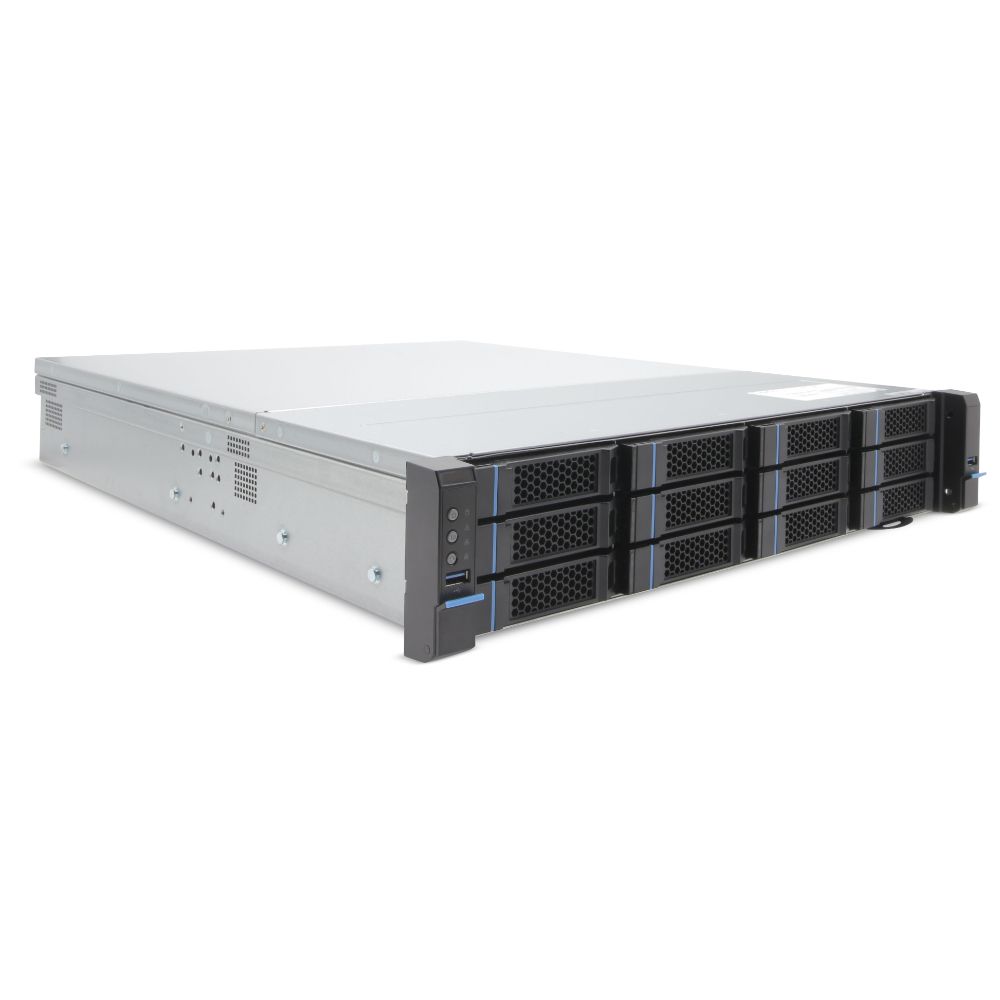

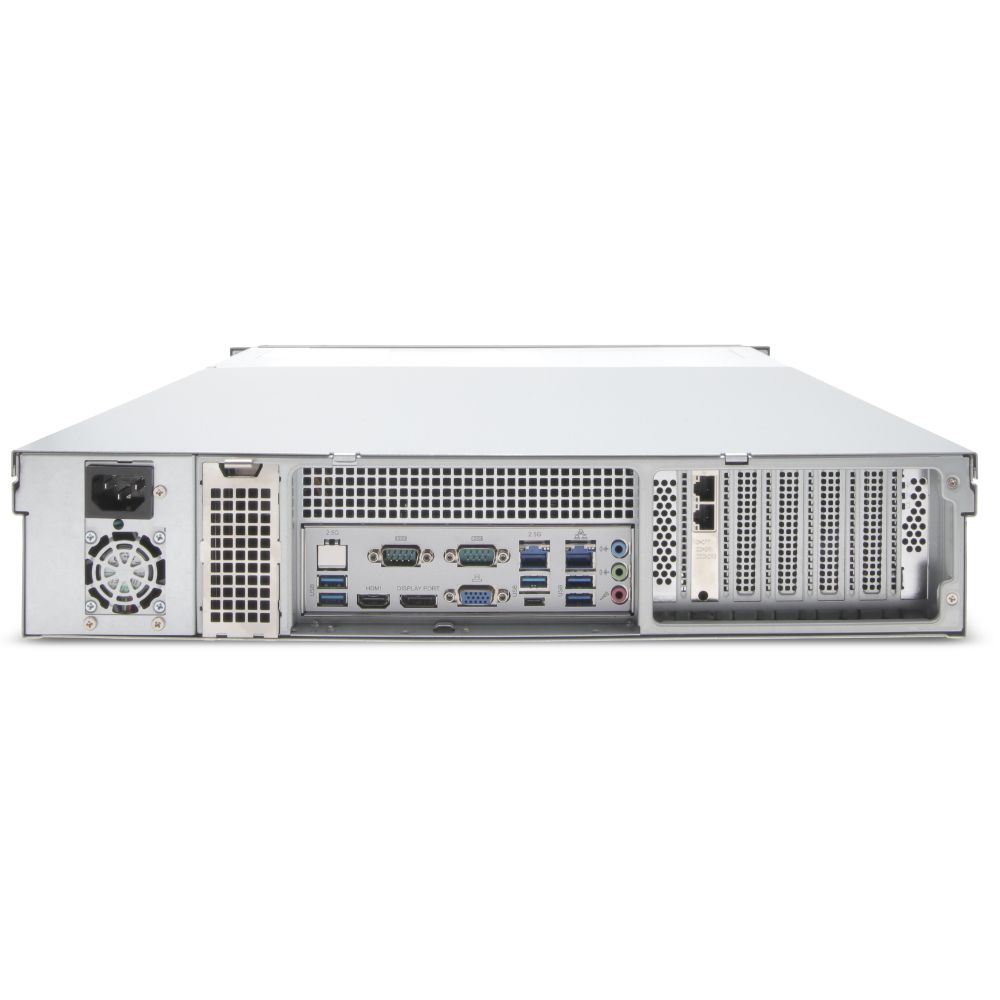

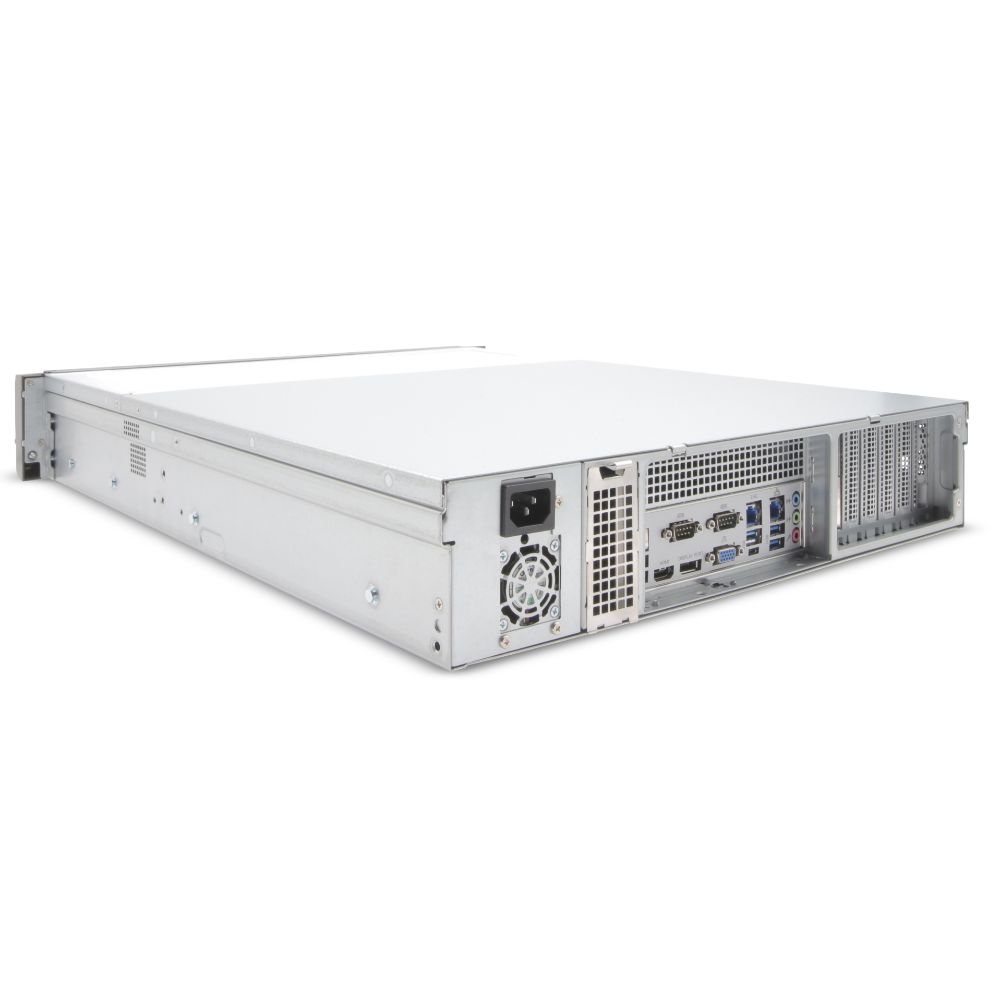

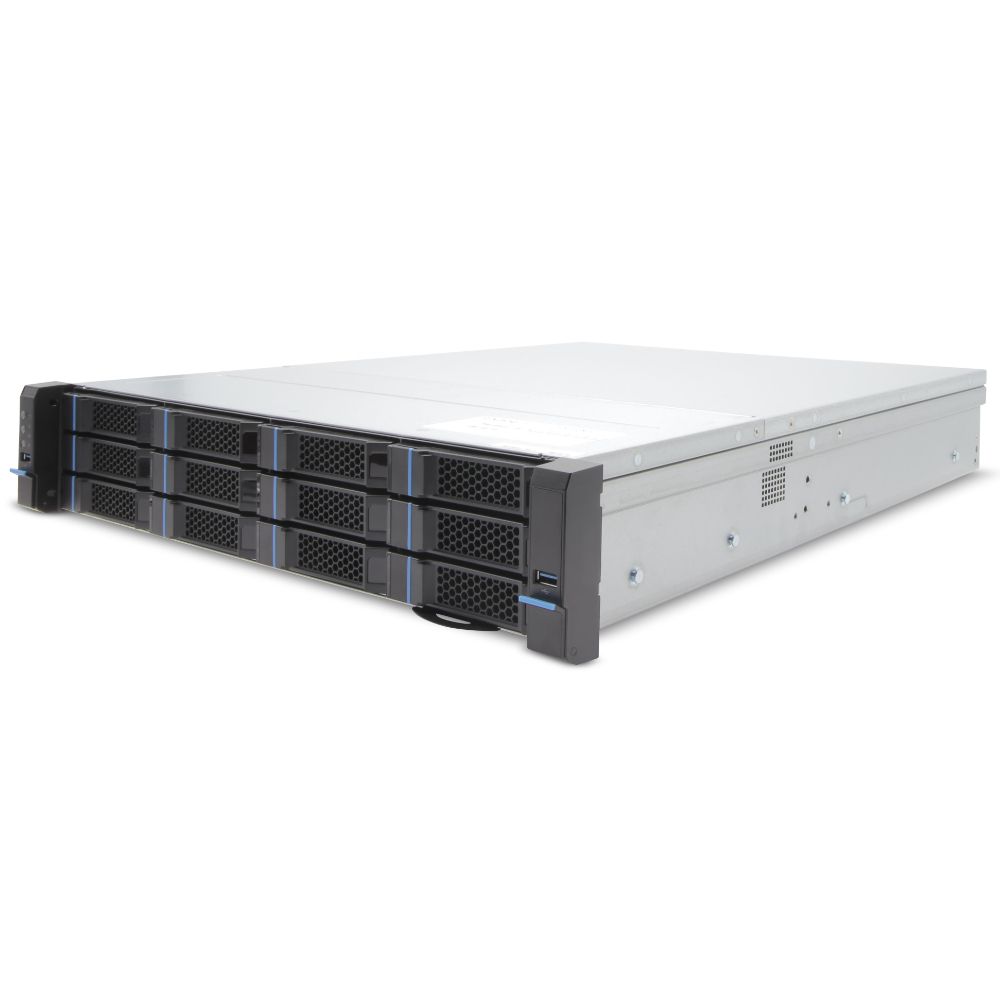

Exacq IP01-80T-FAL-E IP 2U Rackmount Frontload A-Series NVR with 1 IP Enterprise License (150 max), Linux, 80TB

The IP01-80T-FAL-E from Exacq is an IP 2U rackmount frontload A-Series exacqVision NVR with 1 IP Enterprise license (150 max), 80TB RAID5 configured storage (70TB usable). Linux Ubuntu 22.04 LTS OS on SSD, 16GB RAM, Dual 2.5GbE on-board, 6 x USB, 1 x HDMI, 1 x DP, 1 x VGA. Includes rackmount sliding rail kit, mouse and keyboard. Pre-installed exacqVision VMS software with Lifetime SSA and 5 year RMA hardware warranty.

Proven Performance

• Continuously record up to 700 Mbps of video for high concentration of IP cameras
• Record up to 150 IP cameras per video server
• Stream up to 1,800 frames per second of live/recorded video to web/mobile clients
• Stream live/recorded video up to 100 simultaneous PC clients
• Optional quad network interfaces for fastest archiving or mass client performance

Designed Video Server Reliability

• Minimize system boot time and failure risk with a high reliability solid-state operating system drive, redundant OS drives optional
• Continuous duty video recording grade hard drives optimized for reduced vibration and heat
• Uninterrupted operation and video preservation in event of video drive failure via optional RAID 6 and OS drive failure via RAID 1 on SSD OS drives
• Protects against single power failure with optional redundant power supplies
• Monitors hardware health in exacqVision client and with email/text notifications

Designed Video Server Reliability

• Kantech EntraPass Corporate Edition access control system pre-licensed on exacqVision Windows A-Series NVRs
• Easily scales from controlling a few doors to thousands of doors and managing thousands of cards at multiple locations
• Add an unlimited number of cardholders with up to 5 cards each
• Improve response time to critical alarms and events by monitoring and controlling doors from exacqVision while viewing associated cameras

Capacity for Mainstream Recording

• Includes 1 IP camera license, either Professional or Enterprise
• Compatible with thousands of IP camera models from leading manufacturers like Illustra, Axis, Arecont and more
• Store up to 288TB of video
• Compatible with all exacqVision video recorders and video management software for maximum scalability

Features

• Configure from 64 to 240TB, multiple Operations Systems and camera licenses
• High performance throughput up to 750 Mbps
• 1 camera license of either Professional or Enterprise preloaded with a nonexpiring SSA included
• Configurable up to RAID 6 for storage and RAID1 for OS redundancy
• Performing system maintenance has never been easier with front up to 12 hot swappable drives
• Add the power of tested and certified video analytics, access control, POS applications and hundreds of 3rd party cameras
