Digital Watchdog DW-BJRR2U140T Blackjack Rack 2U 12-Bay NVR Server, 16GB RAM, Single Processor, Windows 10 OS, 140TB HDD
SKU
DW-BJRR2U140T
Model No
DW-BJRR2U140T
was $36,715.16 Special Price $29,799.84
Product Highlights
- Supports all ONVIF conformant IP cameras
- 140TB raw internal storage
- Record and manage single- and multi-sensor IP cameras of any resolution up to 600Mbps throughput
- Hot Swappable HDDs
- OS RAID 1, Data RAID5, RAID6 options
Speak to an expert

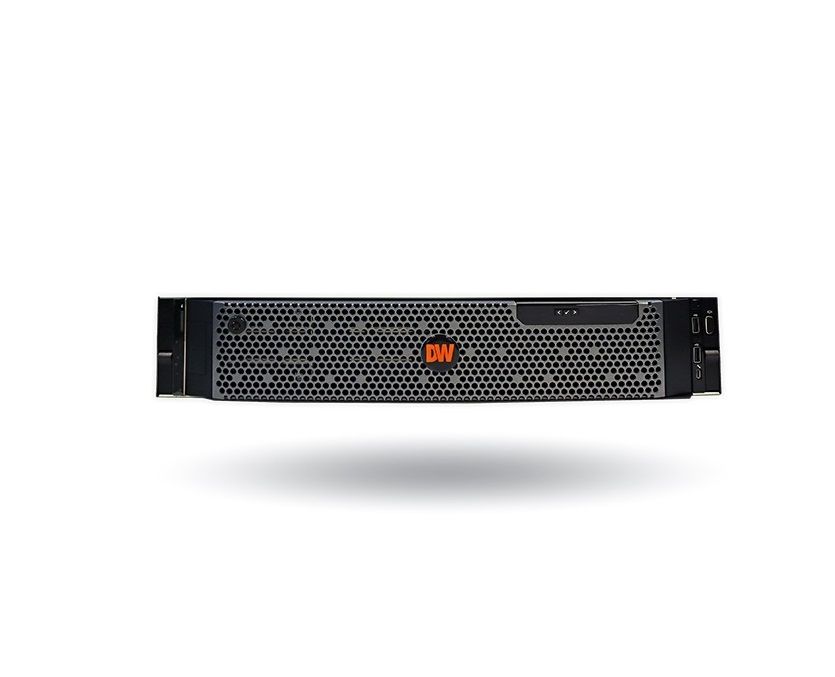

The DW-BJRR2U140T from Digital Watchdog is a blackjack rack 2U 12-bay NVR server featuring 16GB RAM, a single processor running Windows 10 OS, and a massive 140TB of raw storage (120TB usable with RAID5). This server is designed for high-performance recording of multiple IP cameras at up to 600Mbps throughput while ensuring data security and compliance with industry standards.
Digital Watchdog DW-BJRR2U140T Key Features
- Max throughput and IP camera support: Capable of recording and managing single-sensor and multi-sensor IP cameras of any resolution, ensuring versatile usage for various surveillance needs.
- Next business day onsite hardware repair: Rapid response service for hardware issues, minimizing downtime and maintaining operational efficiency.
- Keep Your Drive Warranty: Users can keep replaced hard drives, ensuring data security without the risk of losing critical information.
- DW Spectrum IPVMS: Highly customizable video management platform enables tailored solutions for any surveillance project.
- Designed and commissioned in the U.S.A: Ensures high standards of quality control and performance from a trusted source.

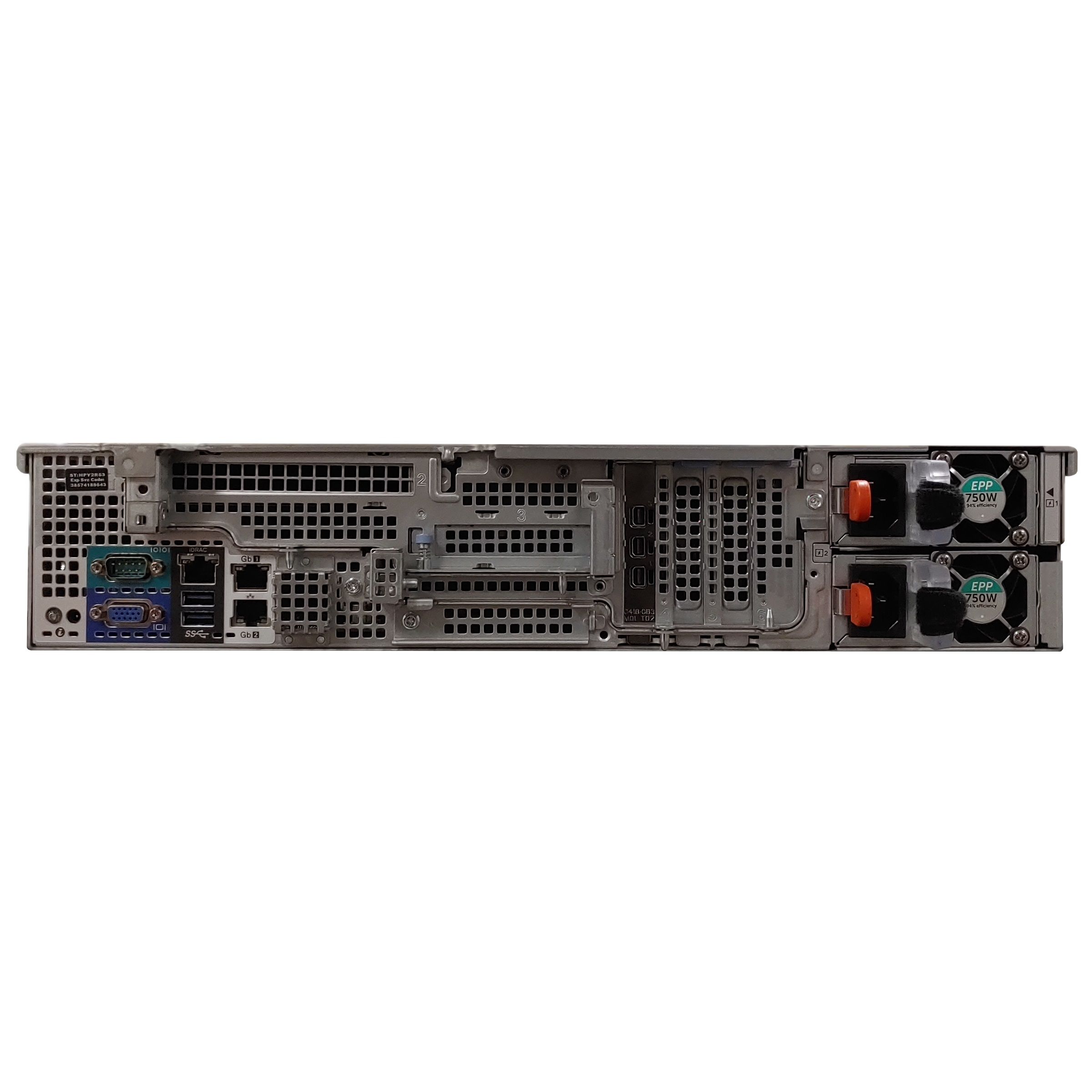

- Dual network cards: Optimizes network bandwidth, allowing for a dedicated surveillance network to prevent interference with main network traffic.
- Dual power supply: Provides redundancy to enhance reliability and minimize interruptions.
- Hot-swappable HDDs: Facilitates easy drive replacement without downtime, ensuring continuous operation.
Digital Watchdog DW-BJRR2U140T Detailed Specifications
| Model | DW-BJRR2U140T |
| Type | 2U Rack 12-Bay NVR Server |
| RAM | 16GB |
| Processor | Intel Xeon |
| Operating System | Windows 10/Windows Server/Ubuntu Linux |
| Raw Storage | 140TB |
| Usable Storage | 120TB (RAID5) |
| Througput | Up to 600Mbps |
| Hot-swappable Drives | Yes |
| Network Ports | 2x 1G, 4x 1G Ethernet ports |
| Included Licenses | 8 recording channels (2 4-channel licenses) |
| Warranty | 5-year, Next Business Day, Keep Your Hard Drive |
| Compliance | NDAA/TAA compliant, UL listed |
SKU  | DW-BJRR2U140T |
|---|---|
| Manufacturer | Digital Watchdog |
| NDAA | Compliant |
| Harddrive Size | 140TB |
| Protocols | Digital Watchdog Protocols, ONVIF Protocols |
| Features | Redundant Power |
| Operating temperature | 41°F~104°F (5°C~40°C) |
| Dimensions | 18.97” x 28.4” x 3.41” (482 x 721.62 x 86.8mm) |
| Power Consumption | 800W dual power supply* |
| Memory | 16GB |
| Redundant Power | Yes |
