Digital Watchdog DW-BJRR2U100TS6 Blackjack Rack 2U 12-Bay NVR Server, 16GB RAM, Single Processor, Windows Server OS, 100TB HDD
SKU
DW-BJRR2U100TS6
Model No
DW-BJRR2U100TS6
$46,204.00
Product Highlights
- Supports all ONVIF conformant IP cameras
- 100TB raw internal storage
- Record and manage single- and multi-sensor IP cameras of any resolution up to 600Mbps throughput
- Hot Swappable HDDs
- OS RAID 1, Data RAID5, RAID6 options

Speak to an expert

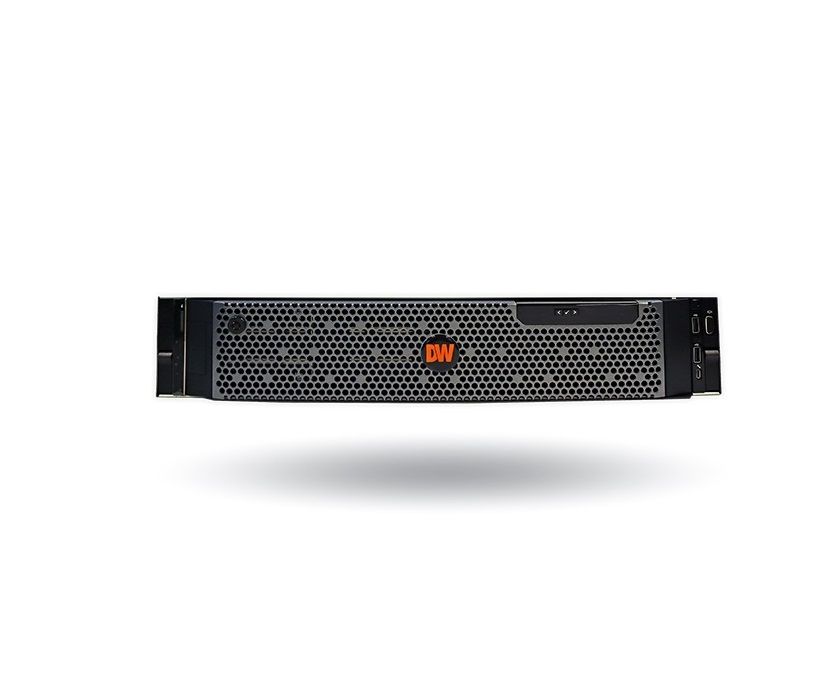

The DW-BJRR2U100TS6 from Digital Watchdog is a state-of-the-art Blackjack Rack 2U 12-bay NVR server that boasts impressive performance, featuring 16GB RAM and a single Intel Xeon processor. With Windows Server OS and substantial storage capacity of 100TB raw (80TB usable post-RAID5), it is designed to effectively support multiple IP camera recordings up to 600Mbps throughput. This robust server prioritizes data security and ease of use with its RAID configurations, hot-swappable drives, and on-site warranty service.
DW-BJRR2U100TS6 Key Features
- Max throughput and IP camera support: Records and manages single- and multi-sensor IP cameras of any resolution with exceptional reliability, ensuring smooth operation at up to 600Mbps throughput.
- Next business day onsite hardware repair: Provides worry-free service with onsite support and a certified technician dispatched the next business day if remote troubleshooting fails.
- Keep your drive after replacement: Data security is enhanced by allowing users to keep their drives even when replacements are made, safeguarding crucial data.
- DW Spectrum IPVMS: A customizable IP Video Management platform enables tailored video solutions for various projects, enhancing user experience and functionality.
- Designed and commissioned in the U.S.A: Ensures high quality and performance through rigorous control at the assembly facility in California.
- Dual network cards: Facilitates optimized bandwidth usage by separating surveillance traffic from the main network, enhancing overall system efficiency.
- Dual power supply: Ensures reliability with redundant power options, significantly reducing the risk of downtime.
- Hot-swappable HDDs: Allows for seamless drive replacements without system downtime, maintaining continuous operation.
Detailed Specifications of DW-BJRR2U100TS6
| Feature | Details |
| Raw Storage Capacity | 100TB |
| Usable Storage Capacity | 80TB (RAID5) |
| RAM | 16GB |
| Processor | Intel Xeon |
| Operating System | Windows 10, Windows Server or Ubuntu Linux |
| SSD | 480GB NVMe (RAID1) |
| Recording Licenses | 8 recording channels (Includes two 4-channel licenses) |
| ONVIF Compliance | Supports all ONVIF conformant IP cameras |
| Network Ports | 2x 1G, 4 x 1G Ethernet ports |
| Warranty | 5-year, on-site, Next Business Day, Keep Your Hard Drive warranty |
| Hot Swappable Drives | Yes |
| Power Supply | Redundant dual power supply |
| Design and Assembly | Designed, assembled, and tested in the U.S.A. |
| UL Listed | Yes |
| NDAA/TAA Compliant | Yes |
