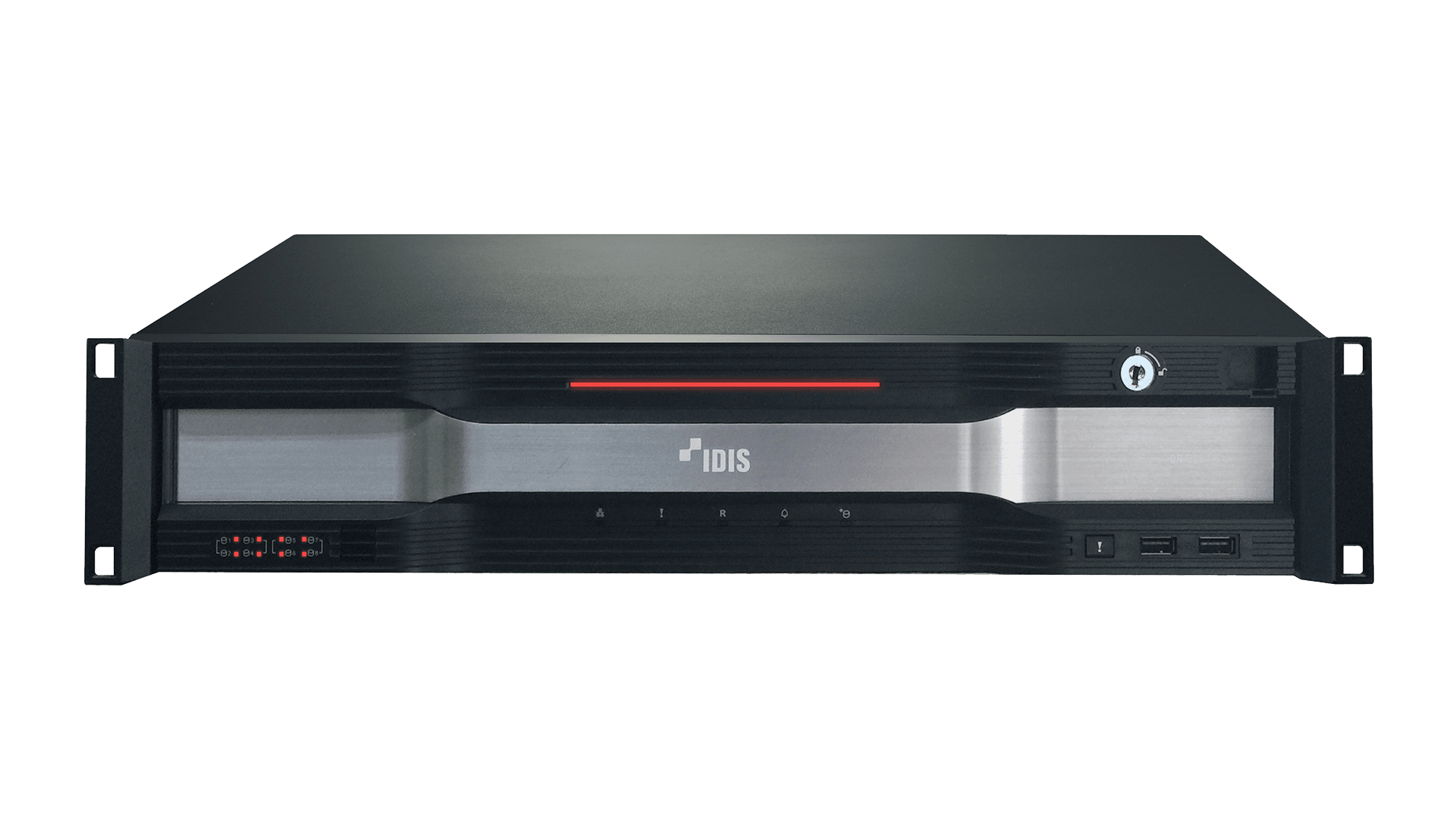

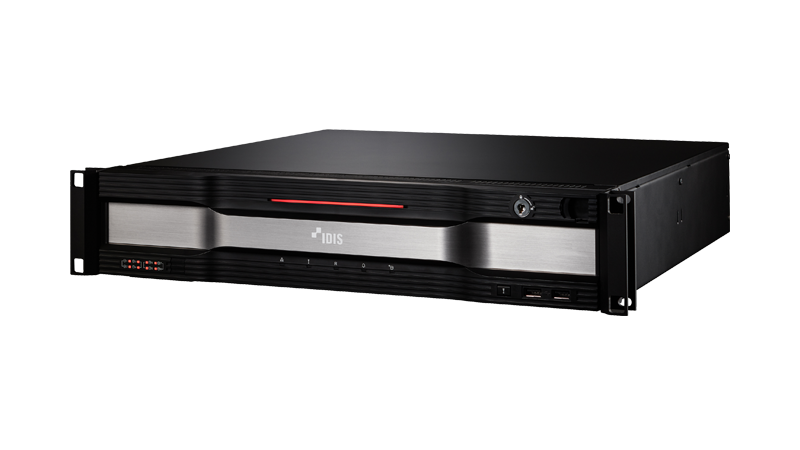

Arecont Vision DR-8564D-72TB 64 Channel, DirectIP H.265 NVR with 72TB
SKU
DR-8564D-72TB
Model No
DR-8564D-72TB
$8,417.87
Product Highlights
- Total incoming throughput 540Mbps
- Up to 1920ips UHD real-time recording
- Supports H.265 / H.264 codec
- Supports UHD display
- Up to 1080ips live display
Speak to an expert
The Arecont Vision DR-8564D-72TB is a high-performance 64-channel DirectIP NVR that offers outstanding video recording capabilities with a massive 72TB storage capacity. Equipped with advanced H.265 compression technology, this NVR delivers exceptional video quality while maximizing storage efficiency. Its robust features make it an ideal choice for demanding surveillance applications, ensuring seamless integration and reliable performance.
Arecont Vision DR-8564D-72TB Camera Features
- Total Incoming Throughput: 540Mbps - Ensures high data transfer rates for smooth and uninterrupted video streaming.
- Real-Time Recording: Up to 1920ips UHD - Captures crystal-clear video in real-time, providing detailed surveillance footage.
- Codec Support: H.265 / H.264 - Optimizes video compression for enhanced storage efficiency without sacrificing quality.
- UHD Display Support: Allows for high-definition playback, making it easy to review footage with stunning clarity.
- Live Display Capability: Up to 1080ips - Provides high-quality live viewing to monitor situations as they unfold.
- Ease of Use: Quick installation and setup with DirectIP cameras - Simplifies the process, allowing for rapid deployment.
- RAID Support: RAID 1, 5, 10 - Offers various configurations for data redundancy and improved performance.
- Redundant Power: Ensures continuous operation even in the event of a power failure.
- Network Configuration: One-click setup via FEN service - Streamlines the process of connecting and managing network settings.
- Third Party Integration: Compatible with Axis, Panasonic, ONVIF cameras - Expands versatility and integration with existing systems.
Arecont Vision DR-8564D-72TB Detailed Specifications
| Feature | Details |
|---|---|
| Total Channels | 64 |
| Video Compression | H.265, H.264 |
| Input Resolution | UHD 1920ips |
| Hard Drive Capacity | 72TB (6 x 12TB) |
| Live Display Capability | Up to 1080ips |
| RAID Configurations | RAID 1, 5, 10 |
| Alarm Inputs/Outputs | 4 Inputs / 1 Output |
| Audio Input/Output | 1 RCA / 1 RCA + 2 HDMI |
| Power Supply | AC 100-240V~, 50/60Hz |
| Power Consumption | 145W x2 |
| USB Ports | 2 x USB 2.0, 1 x USB 3.0 |
| Network Protocol | ONVIF Profile S |
SKU  | DR-8564D-72TB |
|---|---|
| Manufacturer | Arecont Vision |
| NDAA | Compliant |
| IP Channels | 64 Channels |
| Harddrive Size | 72TB |
| Protocols | Arecont Vision Protocols, ONVIF Protocols |
| Features | Alarm Notification by E-mail, Audio, Compression Supported, H.264 Compression, H.265 Compression, Supports the Full HD Output (HDMI), Two-way Audio, Facial Recognition |
Resolution  | Up to 12MP (Depending on IP Camera) |
| Compression | H.265, H.264 |
| Operating temperature | 0°C to 40°C (32℉ ~ 104℉) |
| Dimensions | 482.6mm x 88mm x 529.5mm (19" x 3.5" x 20.8") |
| Voltage | 100-240V |
| Power Consumption | 145W x2 |
| SATA | SATA x 8, eSATA x 4, RAID 1, 5, 10 Supported |
| USB | USB 2.0 x 2, USB 3.0 x 1 |
| Compression Supported | Yes |
| Alarm Notification by E-mail | Yes |
| Supports the Full HD Output (HDMI) | Yes |
| Two Way Audio | Yes |
| H.264 Compression | Yes |
| H.265 Compression | Yes |
