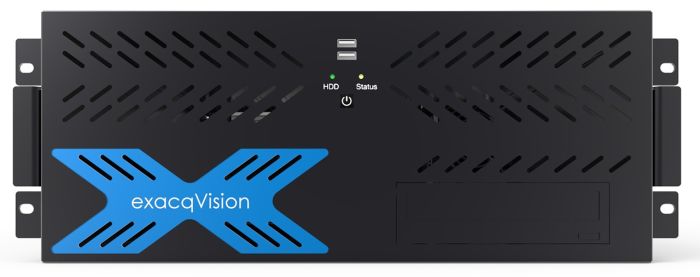

Exacq 3208-80T-R4A Hybrid 4U Recorder with 8 IP Cameras Licenses (64 max) and 32 Analog at 30 FPS, 80TB HDD
SKU
3208-80T-R4A
Model No
3208-80T-R4A
$24,376.00
Product Highlights
- Store your video and data longer with hard drive configurations up to 96 TB
- 550 Mbps of continuously streaming video ensures surveillance vigilance
- Compatible with Illustra and thousands of other IP cameramodels, making it easy to find the right camera
- Solid state drives and optional RAID 5 provides uninterrupted operation
- Pre-loaded with exacqVision Professional VMS software for out-of-box simplicity
Speak to an expert
Introducing the Exacq 3208-80T-R4A Hybrid 4U Recorder, a robust surveillance solution designed to meet the needs of any business, from small to large enterprises. With support for up to 64 IP cameras and 32 analog cameras at 30 FPS, this recorder ensures comprehensive monitoring capabilities. Pre-installed with exacqVision Professional or Enterprise server software and a generous 80TB HDD, it provides both reliability and extensive storage for your security data.
Exacq 3208-80T-R4A Hybrid Recorder Features
- Hybrid Flexibility: Supports up to 64 IP and 32 analog cameras, allowing you to easily scale as your monitoring needs grow.
- High Performance: Streams video at 550 Mbps continuously, ensuring that you never miss a moment of critical footage.
- Comprehensive Compatibility: Works seamlessly with Illustra and thousands of other IP camera models, simplifying camera integration.
- Enhanced Reliability: Utilizes solid-state drives coupled with optional RAID 5 for uninterrupted operation and data protection.
- Out-of-Box Simplicity: Comes pre-loaded with exacqVision Professional VMS software for an easy setup experience.
- Advanced Security Integrations: Supports additional 3rd party integrations for enhanced security measures and intelligence.
Exacq 3208-80T-R4A Recorder Specifications
| Operating System | Windows 10/Ubuntu Linux 20.04 on SSD |
| Camera Support | Up to 64 IP cameras and 32 analog cameras |
| Video Storage Capacity | 80TB HDD capacity, expandable with additional drives |
| Video Output | HDMI, DisplayPort, VGA (3 max simultaneous) |
| Network Connections | Dual NICs for robust connectivity |
| Alarm Inputs/Outputs | 16 alarm inputs and 16 alarm outputs |
| Audio Inputs | 16 audio inputs for comprehensive audio monitoring |
| Maintenance | Front-accessible drive bays for easy servicing |
| Warranty | 3 years hardware warranty with software upgrades |
| Mobile Access | Free exacqVision mobile app for remote viewing |
SKU  | 3208-80T-R4A |
|---|---|
| Manufacturer | Exacq |
| NDAA | Compliant |
| IP Channels | 64 Channels |
| Harddrive Size | 80TB |
| Protocols | EXACQ Protocols |
| Features | Audio, Compression Supported, H.264 Compression, HD Resolution, MJPEG Compression, Remote I/O Control, Supports the Full HD Output (HDMI), Two-way Audio |
Resolution  | 375@HD resolution (Windows), 720@HD resolution (Linux) |
| Compression | H.264, MJPEG |
| Dimensions | 28” x 16.75” x 7” 71.2 x 42.6 x 17.8 cm |
| Voltage | 120/240 VAC |
| USB | 4 x USB 3.2 Gen 2 (back), 2 x USB 3.2 Gen 1 (back) 2 x USB 3.2 Gen 1 (front) |
| Compression Supported | Yes |
| HD Resolution | Yes |
| Remote I/O Control | Yes |
| Supports the Full HD Output (HDMI) | Yes |
| Two Way Audio | Yes |
| H.264 Compression | Yes |
| MJPEG Compression | Yes |
