Exacq 3208-252T-R4ZL-E Rackmount 4U Hybrid NVR with 8 IP Licenses, 32 Channel Analog Inputs, 252TB HDD
SKU
3208-252T-R4ZL-E
Model No
3208-252T-R4ZL-E
$66,674.67
Product Highlights
- Store 252TB with front-accessible storage and expand to over 1.6 PB with exacqVision S-Series networked storage
- Continuously record up to 128 IP and 64 analog cameras at 1900 Mbps per server for surveillance vigilance
- Separate operating system and video storage volumes prevent loss of critical video
- Solid state drives and optional RAID 5 or RAID 6 provides uninterrupted operation
- Pre-loaded with exacqVision Professional software for out of the box simplicity
Speak to an expert
Introducing the Exacq 3208-252T-R4ZL-E Rackmount 4U Hybrid NVR, designed for high-performance video surveillance solutions. This powerful device supports 8 IP licenses and up to 32 channel analog inputs, featuring robust storage options with a massive 252TB HDD. Easy to set up and manage, it ensures reliable security and operational efficiency for large organizations.
Exacq 3208-252T-R4ZL-E Camera Features
- High Storage Capacity: Store 252TB with front-accessible storage and expand to over 1.6 PB with exacqVision S-Series networked storage for extensive video retention.
- Superior Recording Performance: Continuously record up to 128 IP and 64 analog cameras at 1900 Mbps per server, ensuring vigilant surveillance across multiple locations.
- Robust Data Safety: Separate operating system and video storage volumes prevent loss of critical video, providing extra protection against data failures.
- Reliable Uptime: Solid state drives combined with optional RAID 5 or RAID 6 ensure uninterrupted operation, ideal for critical environments.
- Easy-to-Use Interface: Pre-loaded with exacqVision Professional software for out-of-the-box simplicity, facilitating quick deployment and management.
- Wide Compatibility: Compatible with Illustra and thousands of other IP camera models, making it easy to find the right camera for your security needs.
Exacq 3208-252T-R4ZL-E Detailed Specifications
| Model | Exacq 3208-252T-R4ZL-E |
| Form Factor | Rackmount 4U |
| Storage Capacity | 252TB HDD |
| IP Licenses | 8 included |

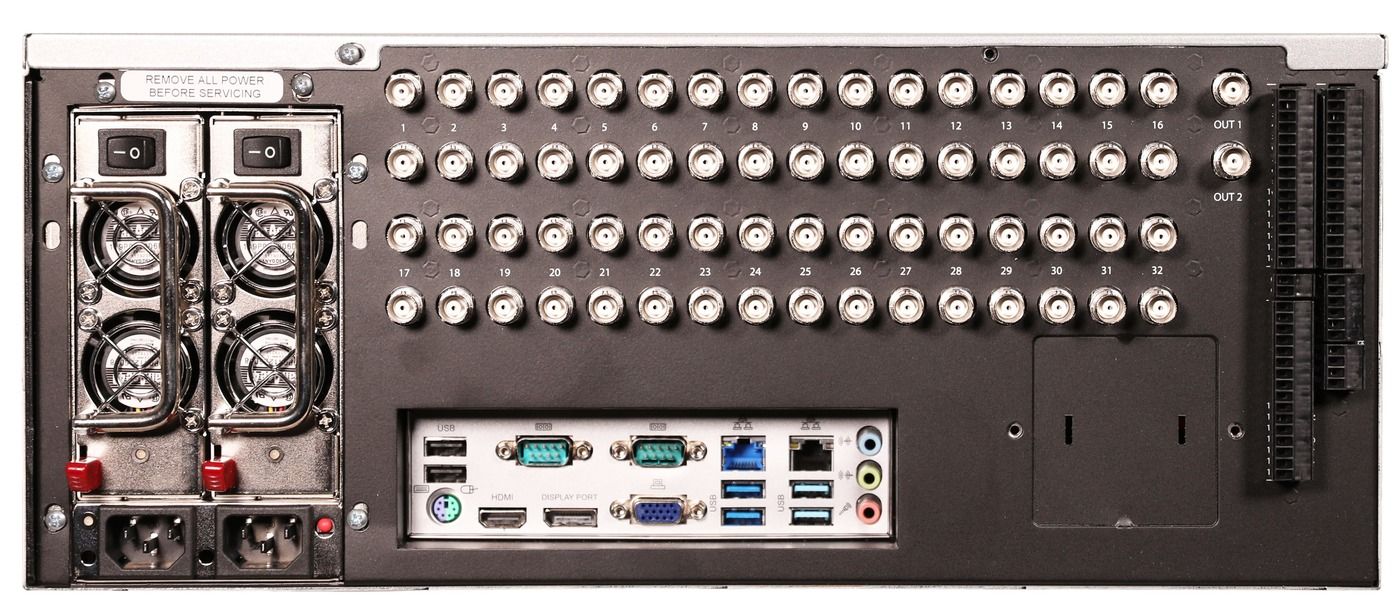

| Analog Inputs | 32 channel inputs with looping |
| Alarm Inputs/Outputs | 16 inputs and 16 outputs |
| Audio Inputs | 4 |
| Redundant Power Supplies | Yes |
| Operating System | Windows 10 or Ubuntu Linux 20.04 |
| Video Outputs | HDMI, DisplayPort, VGA (max 2 simultaneous) |
| RAID Support | RAID 5 or RAID 6 |
| Warranty | 3 years |
| Software Updates | 5 years included |
| Client Software | exacqVision Professional or Enterprise pre-installed |
SKU  | 3208-252T-R4ZL-E |
|---|---|
| Manufacturer | Exacq |
| NDAA | Compliant |
| IP Channels | 128 Channels |
| Harddrive Size | 252TB |
| Protocols | EXACQ Protocols |
| Features | Audio, Compression Supported, H.264 Compression, H.265 Compression, HD Resolution, MJPEG Compression, Redundant Power, Supports the Full HD Output (HDMI), Two-way Audio |
Compression  | MJPEG, H.264, H.265 |
| Operating temperature | 40° - 95°F (4.5° - 35°C) |
| Dimensions | 27” x 16.875” x 7” (68.6 x 42.9 x 17.8 cm) |
| Voltage | 120/240 VAC |
| USB | 4 x USB 3.2 Gen 2 (back), 2 x USB 3.2 Gen 1 (back), 2 x USB 3.2 Gen 1 (front) |
| Compression Supported | Yes |
| Redundant Power | Yes |
| HD Resolution | Yes |
| Supports the Full HD Output (HDMI) | Yes |
| Two Way Audio | Yes |
| H.264 Compression | Yes |
| H.265 Compression | Yes |
| MJPEG Compression | Yes |
