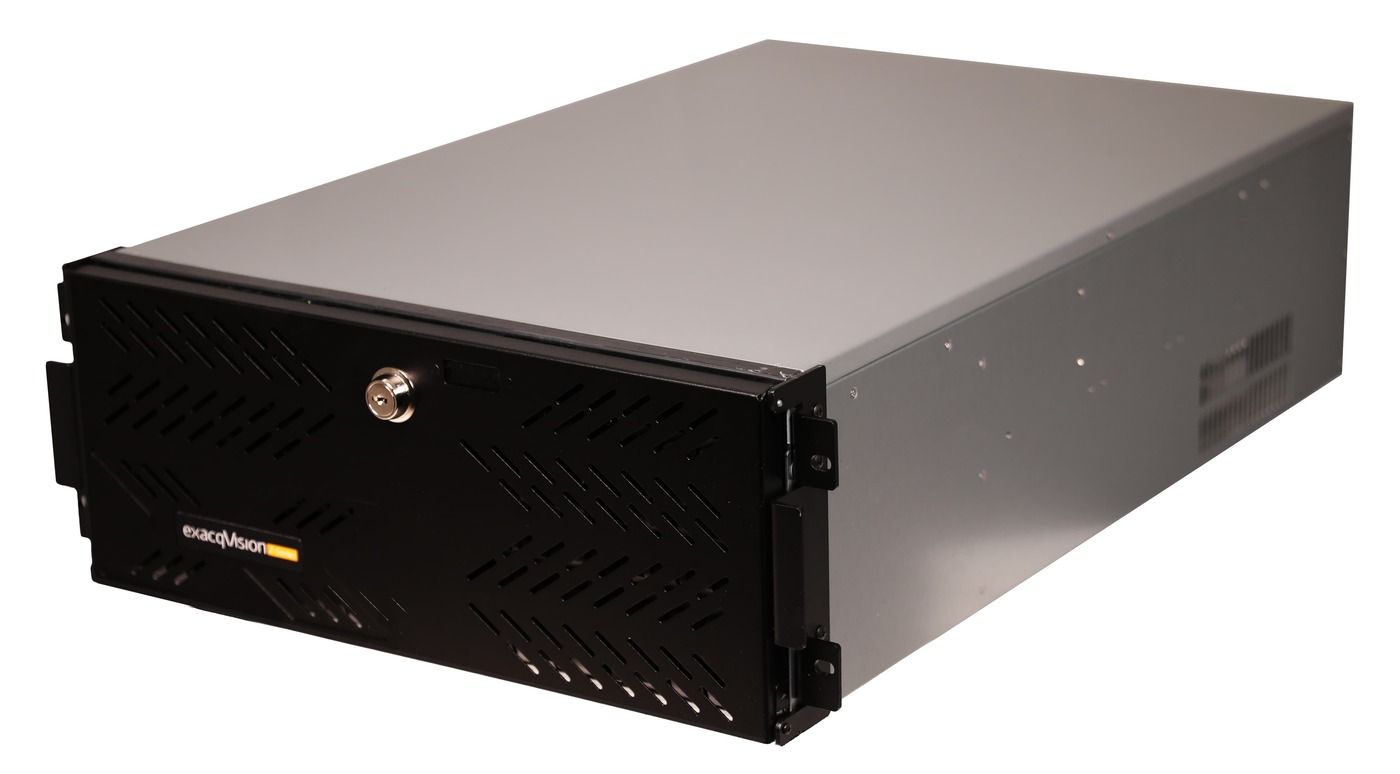

Exacq 3208-252T-R4Z-E Rackmount 4U Hybrid NVR with 8 IP Licenses, 32 Channel Analog Inputs, 252TB HDD
SKU
3208-252T-R4Z-E
Model No
3208-252T-R4Z-E
$66,674.67
Product Highlights
- Store 252TB with front-accessible storage and expand to over 1.6 PB with exacqVision S-Series networked storage
- Continuously record up to 128 IP and 64 analog cameras at 1900 Mbps per server for surveillance vigilance
- Separate operating system and video storage volumes prevent loss of critical video
- Solid state drives and optional RAID 5 or RAID 6 provides uninterrupted operation
- Pre-loaded with exacqVision Professional software for out of the box simplicity
Speak to an expert
Introducing the Exacq 3208-252T-R4Z-E Rackmount 4U Hybrid NVR, a cutting-edge video surveillance solution that combines performance, security, and ease of use. With 8 IP licenses, 32 channel analog inputs, and a massive 252TB HDD, this hybrid NVR is designed for large organizations needing reliable video retention and management. Its built-in redundancy and cloud-based monitoring ensure continuous uptime while the pre-installed exacqVision software allows for quick setup and powerful integration capabilities.
Exacq 3208-252T-R4Z-E Key Features
- High Storage Capacity: Store 252TB with front-accessible storage and expand to over 1.6 PB with exacqVision S-Series networked storage for extensive video retention.
- Robust Recording Performance: Continuously record up to 128 IP and 64 analog cameras at 1900 Mbps per server, ensuring vigilant surveillance without interruptions.
- Data Integrity: Separate operating system and video storage volumes prevent loss of critical video, maintaining data integrity at all times.
- Uninterrupted Operation: Solid state drives and optional RAID 5 or RAID 6 provide uninterrupted operation even during hardware failures.
- Out of the Box Simplicity: Pre-loaded with exacqVision Professional software for quick and easy setup, allowing for immediate deployment and usability.
- Camera Compatibility: Compatible with Illustra and thousands of other IP camera models, making it easy to integrate with existing security systems.
Exacq 3208-252T-R4Z-E Detailed Specifications
| Form Factor | 4U Rackmount |
| IP Licenses | 8 IP Licenses |
| Analog Inputs | 32 Channel with 32 Looping Included |
| Hard Drive Capacity | 252TB HDD |
| Operating System | Windows 10 or Ubuntu Linux 20.04 on SSD |
| Redundant Power Supplies | Yes |
| Video Outputs | HDMI, DisplayPort, VGA (2 Max. Simultaneous) |
| Alarm Inputs/Outputs | 16 Alarm Inputs, 16 Alarm Outputs |
| Audio Inputs | 4 Audio Inputs |
| Warranty | 3 Year Warranty |
| Software Updates | 5 Year Software Updates |
SKU  | 3208-252T-R4Z-E |
|---|---|
| Manufacturer | Exacq |
| NDAA | Compliant |
| IP Channels | 128 Channels |
| Harddrive Size | 252TB |
| Protocols | EXACQ Protocols |
| Features | Audio, Compression Supported, H.264 Compression, H.265 Compression, HD Resolution, MJPEG Compression, Redundant Power, Supports the Full HD Output (HDMI), Two-way Audio |
Compression  | MJPEG, H.264, H.265 |
| Operating temperature | 40° - 95°F (4.5° - 35°C) |
| Dimensions | 27” x 16.875” x 7” (68.6 x 42.9 x 17.8 cm) |
| Voltage | 120/240 VAC |
| USB | 4 x USB 3.2 Gen 2 (back), 2 x USB 3.2 Gen 1 (back), 2 x USB 3.2 Gen 1 (front) |
| Compression Supported | Yes |
| Redundant Power | Yes |
| HD Resolution | Yes |
| Supports the Full HD Output (HDMI) | Yes |
| Two Way Audio | Yes |
| H.264 Compression | Yes |
| H.265 Compression | Yes |
| MJPEG Compression | Yes |
