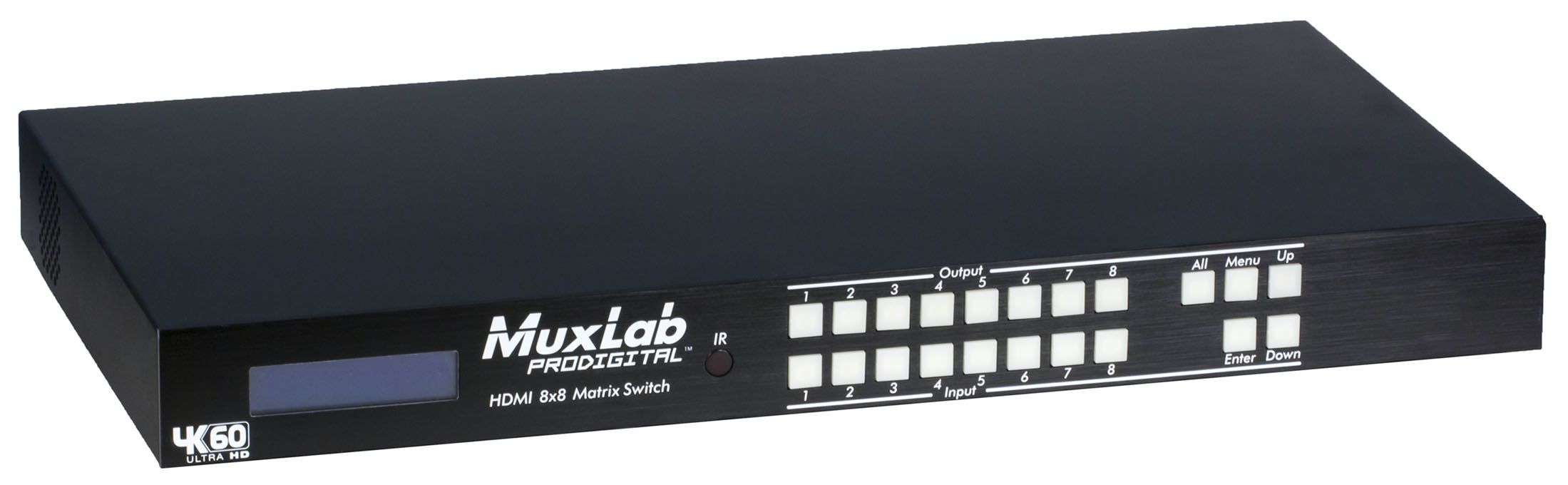

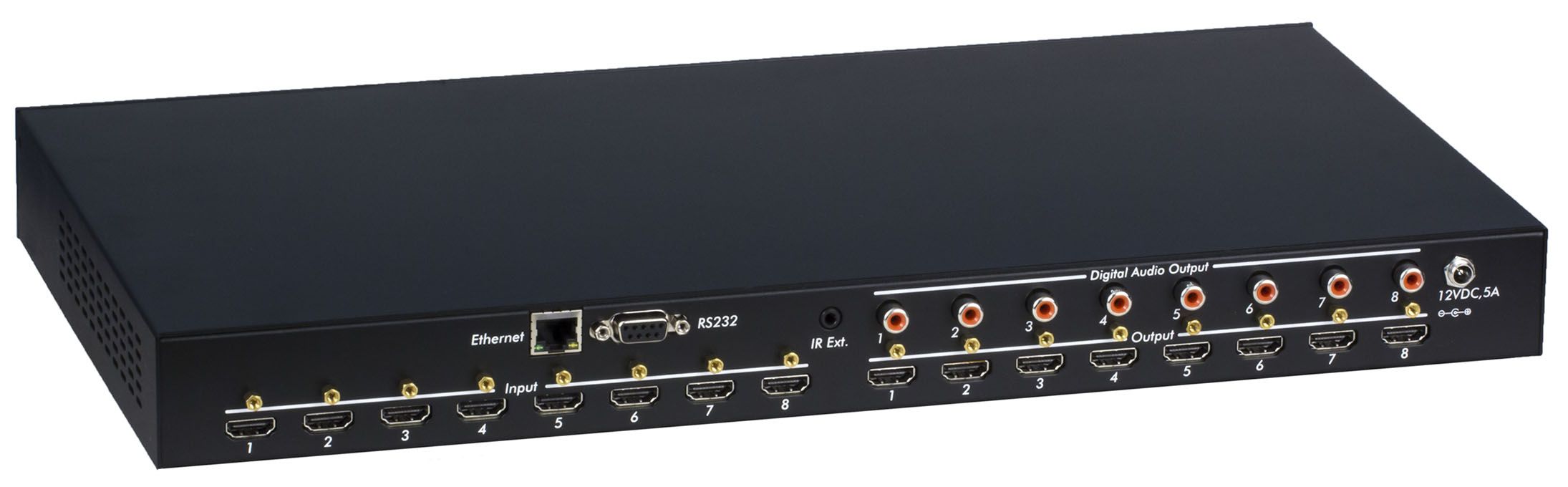

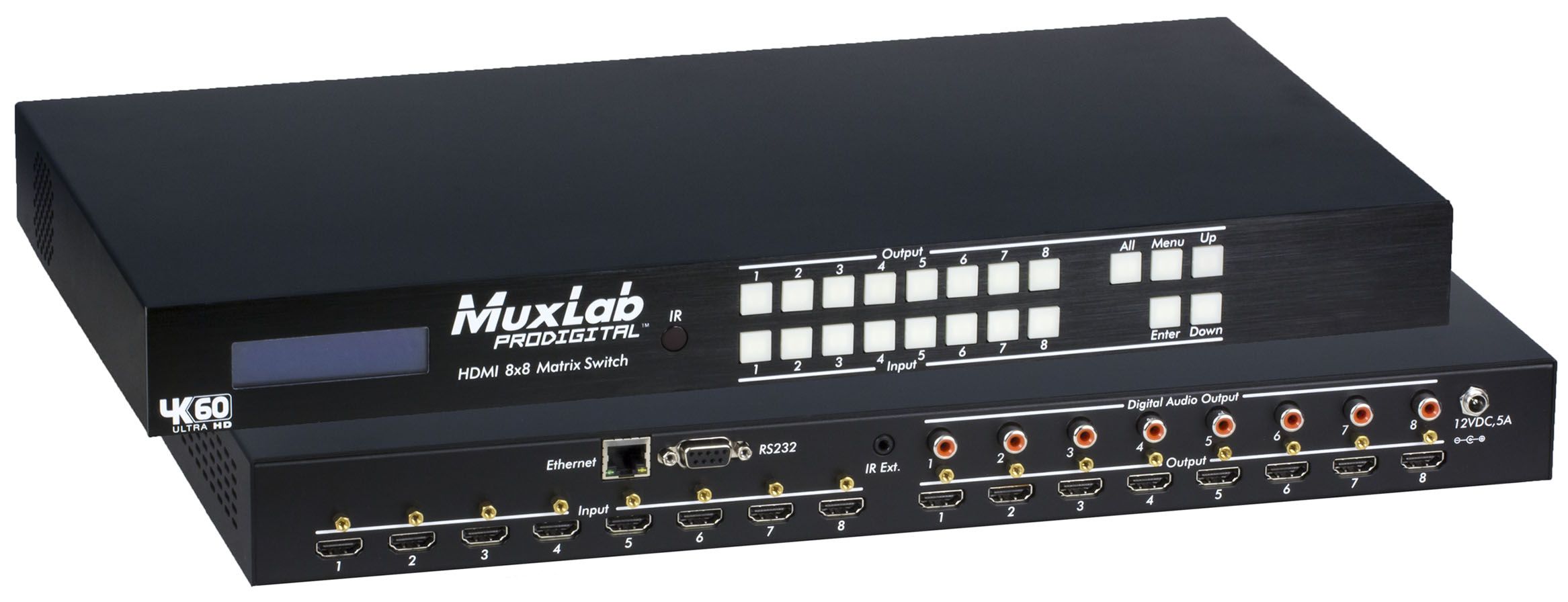

MuxLab 500443 HDMI 8×8 Matrix Switch, 4K/60, US

Model No
500443
$1,637.00
Qty:
Product Highlights
    • Supports HDMI 2.0 (4K/60, 4:4:4)
    • HDCP 2.2 compliant
    • Full HDR support
    • Powerful EDID management
    • Supports independent port scaling and displays with different resolutions

The HDMI 8×8 Matrix, 4K/60 (4:4:4) connects eight HDMI sources to eight displays. This 4K HDMI Matrix Switch provides eight HDMI outputs and each HDMI output is supporting up to 4K/60 (4:4:4) plus all 3D formats and supporting independent EDID control, with scaling capability so that different displays each with different resolutions can be simultaneously supported. It works with Blu-Ray players, Media Players/Streamers, Cameras, Set-Top boxes, Home Theater systems, and game consoles that connect to an HDMI display. Any source is accessible at all times by any display by selecting it via the supplied IR Remote Control, RS-232, TCP/IP or by using the selection buttons on the front panel of the 4K HDMI Matrix Switch.

Features

  • Supports HDMI 2.0 (4K/60, 4:4:4)
  • HDCP 2.2 compliant
  • Full HDR support
  • Powerful EDID management
  • Supports independent port scaling and displays with different resolutions
  • Supports LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus, Dolby Atmos, DTS-HD Master Audio & DTS:X
  • Supports a Coax digital audio out (S/PDIF)
  • Available Window’s GUI control software
  • Controllable via front panel, IR, RS232 and Telnet
  • Fits on a standard 19″ rack
SKU  500443
Manufacturer  MuxLab
Format  Digital
In-Outputs  8 - 8
Video Inputs  HDMI
Video outputs  HDMI
Mount Options  Stand-Alone
