Vitek VT-104VWD Transcendent 4-Channel Decoder, with High-Performance SOC

High-performance SOC decoding chip plus the stable and reliable Linux OS, The VITEK Transcendent VT-104VWD is a powerful addition to surveillance systems of all sizes and types. This product supports multi-channel standard-definition and high-definition network videos decoded on video wall either independently, or can be managed in an integrated way by a central video surveillance management platform. With an abundance of features including H.264/H.265, device-based superior-subordinate management, window opening, and roaming, the VT-104VWD is ideally suited to use in financial and commercial settings, schools, smart buildings, supermarkets, ports, retail outlets, factories, criminal justice environments.

Features

• Multi-Channel Output: 4 - HDMI@1080P, HDMI1 & HDMI3 Support 4K, providing high-quality video display capabilities for diverse applications.
• Versatile Connectivity: 4 - VGA output, 4 - BNC output, ensuring compatibility with various display systems and enhancing flexibility.
• Multiple Format Support: Support PS, RTP, TS, ES package format (platform running mode), making it adaptable to different streaming requirements.
• Video Format Compatibility: Support NTSC & PAL video formats, catering to a wide range of international standards.
• Advanced Compression: H.265 HP / MP / BP and H.264 HP / MP / BP, allowing for high-efficiency video encoding and reducing bandwidth usage.
• High Frame Rate Decoding: 8CH 8/5MP@30fps or 16CH 4/3MP or 32CH 1080P@30fps or 64CH 720P@30fps or 128 CH D1 or lower @30fps, supporting extensive camera setups without compromising performance.
• Audio Support: G.711A/G.711U with 1 CH Audio Input, 4 CH Audio Output, 1 CH Talkback, enabling comprehensive audio-visual communication.
• Live View and Playback: Support live view and playback decoding, ensuring real-time monitoring and review capabilities.

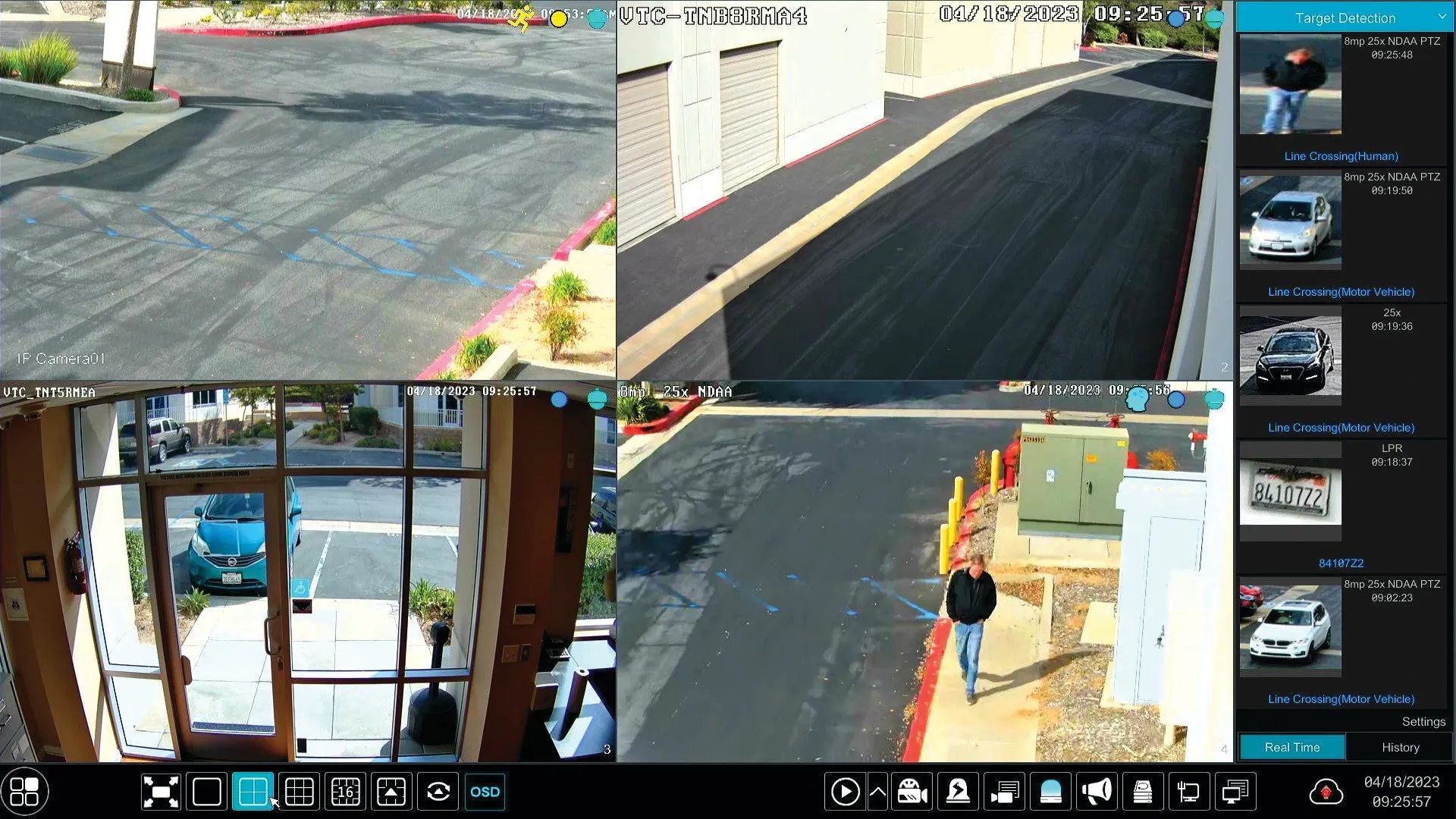

• Flexible Display Modes: 1 / 4 / 9 / 16 / 25 / 36 screen display mode, allowing for customizable viewing experiences based on user needs.
• Advanced Viewing Features: Splicing, picture-in-picture, roaming for versatile viewing configurations, enhancing user interaction.
• Sequential Viewing: View cameras or camera groups in sequence, aiding in systematic surveillance.
• Stream Acquisition: A&V streams can be acquired actively and passively, offering flexibility in management and monitoring.
• Protocol Integration: A&V streams can be directly acquired from IPC / DVR / NVR by SDK private protocol or from NVMS platform or encoding devices by RTSP / RTP protocol, enhancing interoperability with existing systems.

VITEK VT-104VWD Detailed Specifications
