Kramer VS-88UT-110V 8x8 HDMI, HDBaseT & Audio Matrix Switcher
SKU
VS-88UT-110V
Model No
VS-88UT-110V
$7,924.00
Product Highlights
- Control Volume, Sensors, Locks, and Lighting - Using 4 general-purpose (GPI/O) control ports configured as digital input, digital output or analog input interface
- Control Screens, Drapes, Shades, Blinds and IR sensors - Using 8 contact closure ports
- Compatibility with Kramer Software Solutions - Kramer Network Compatible: Remote control and management over customer IP network. Kramer K-Config™ Compatible: Windows based control program with easy configuration and upload to a room controller over customer IP network
- Advanced EDID Management per Input
- Easy Installation - 19″ enclosure for rack mounting a unit in a 2U rack space with included rack ears and universal 100-240V AC pow
Speak to an expert

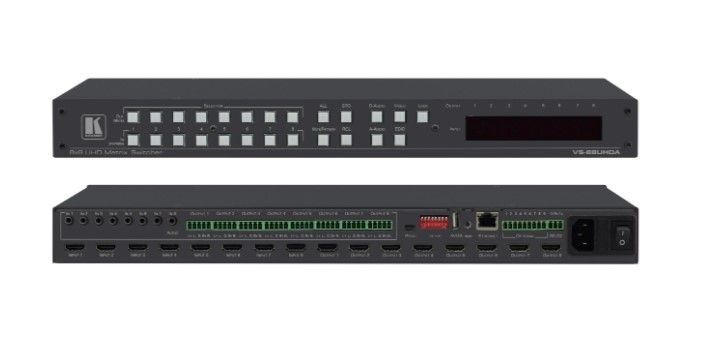

The Kramer VS-88UT-110V is a versatile 8x8 HDMI, HDBaseT, and Audio Matrix Switcher designed to elevate audio-visual presentations. It supports 4K@60Hz (4:2:0) quality and features integrated range extension with a master control system. The unit allows for seamless switching of video, along with audio embedding and outputs to both HDMI and HDBaseT. With exceptional audio handling capabilities and a host of control options, it is ideal for complex AV environments.
Kramer VS-88UT-110V Camera Features
- Versatile All-in-One Solution: Combines a high-performance AV presentation matrix, HDBaseT signal extender, and a powerful master control system into one unit, reducing complexity and saving space.
- High-Performance, Professional AV Matrix: Switches 6 HDMI inputs and 2 HDBaseT signals to 2 4K outputs at up to 10.2Gbps data rate, ensuring compatibility with a wide range of video formats.
- Flexible Audio Options: Offers multiple audio input types with volume control and audio breakaway features for seamless integration with public announcement systems.
- Powerful HDBaseT Extender: Extends signals over long distances, maintaining high quality with advanced reKlocking™ and Equalization Technology.
- Programmable Master Room Controller: Intuitive web interface for scheduling actions and macros streamlines device control across multiple peripherals.
- Diverse Control Port Formats: A vast array of control ports ensures compatibility with multiple devices, enhancing flexibility in AV setups.
- IP Port Extension and Control: Facilitates control of remote devices via Ethernet, improving functional reach.
- Provides Power and Control Together: HDBaseT outputs support Power over Ethernet (PoE), simplifying installation by reducing cable clutter.
- Advanced EDID Management: Customizes signal management for each input, optimizing performance based on connected devices.
- Easy Installation: A 19” rack-mountable design allows for straightforward installation in 2U rack space.
Kramer VS-88UT-110V Detailed Specifications
| Feature | Details |
|---|---|
| Inputs | 6 x HDMI (4K@60Hz), 2 x HDBaseT 2.0 |
| Outputs | 2 x HDMI (4K@60Hz), 2 x HDBaseT 2.0 |
| Audio Support | 4 balanced stereo audio inputs, 2 line-out balanced stereo outputs, amplified audio output |
| Signal Extension | 100m at 4K, 130m at 1080p @60Hz, 180m at ultra mode |
| Control Ports | 1 bidirectional RS-485, 4 RS-232, 4 IR, 4 GPI/O, 8 relays, 2 USB type-A and type-B |
| Power Supply | Universal 100-240V AC |
| Rack Dimensions | 19” for 2U rack space |
| Weight | Approximately X lbs |
| Firmware Upgrade | Via Ethernet with user-friendly tools |
SKU  | VS-88UT-110V |
|---|---|
| Manufacturer | Kramer |
| Video Input | 8 |
| Video Output | 8 |
