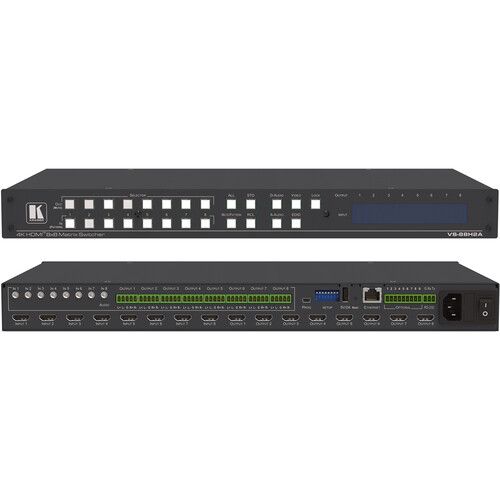

Kramer VS-88H2A 8x8 4K HDR HDCP 2.2 Matrix Switcher with Analog & Digital Audio Routing

The Kramer VS-88H2A is an advanced 8x8 matrix switcher designed for seamless transmission of 4K HDMI signals with HDR support. This robust switcher allows multiple HDMI sources to be routed to any combination of outputs, all while ensuring audio flexibility with both digital and analog audio routing. From built-in signal enhancement technologies to user-friendly control options, the VS-88H2A is engineered for professional AV environments, making it a cost-effective solution for high-quality video distribution.

Features

• High-Performance AV Matrix: Switches 8 4K@60Hz (4:4:4), HDR HDMI signals, ensuring premium quality across all outputs with a maximum data rate of 18G.
• HDMI Support: Capable of handling Deep Color, 3D content, and up to 7.1 uncompressed audio channels, bringing a richer AV experience per HDMI 2.0 specs.
• Independent Audio Routing: Offers versatile audio routing options with an equivalent 24x24 audio matrix, allowing multiple audio inputs and outputs for enhanced flexibility.
• Easy Step-In Collaboration Function: Simplifies connection for users; just plug in a device, press Step-In, and it becomes the active signal, streamlining presentations and meetings.
• EDID Management: Individual input management for EDID allows for optimal resolution and refresh rate settings to be captured and stored from display devices.
• Flexible Content Protection: HDCP compliance can be selectively managed per input to ensure compatibility across devices.
• Quick Access to Common Configurations: Save and recall up to 16 preset configurations for rapid switching based on specific user needs.
• Smart Switching: Detects active sources automatically, providing seamless input selection based on priority or last active connection.
• Embedded Pattern Generator: Built-in pattern generator with selectable patterns for testing purposes.
• Convenient Unit Control and Configuration Options: Front panel controls and remote management via web pages, protocols, or serial commands simplify operation.
• Cost-Effective Maintenance: Easy troubleshooting with input selection indicators and firmware upgrades via Ethernet or mini USB connections.
• Easy Installation: Featuring a 19” rack-mountable design for convenient setup in any AV environment, with included rack ears and universal power supply.

Kramer VS-88H2A Detailed Specifications
