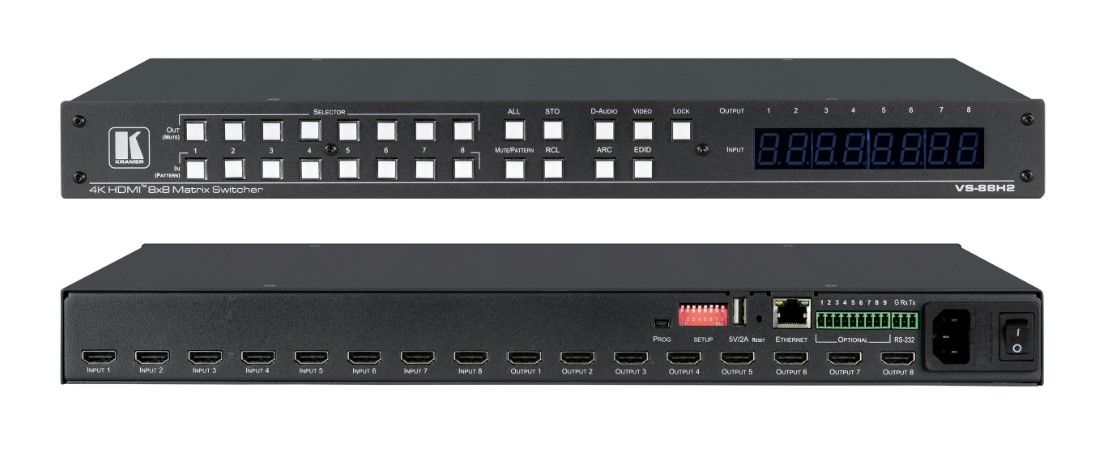

Kramer VS-88H2 8x8 4K HDR HDCP 2.2 Matrix Switcher with Digital Audio Routing

The VS-88H2 is a high-performance 8x8 matrix switcher designed for seamless routing of 4K@60Hz HDR HDMI signals, complete with advanced digital audio capabilities. Its re-clocking and equalization technologies enhance signal quality over long distances, while the flexibility of independent audio routing and easy step-in collaboration makes it perfect for professional A/V installations.

Kramer VS-88H2 8x8 Matrix Switcher Features

• High-Performance AV Matrix: Switches 8 4K@60Hz (4:4:4) HDR signals to outputs at up to 18G data rate, ensuring top-quality video across all devices. This feature is enhanced by Kramer re-Klocking™ and Equalization Technology for reliable signal transmission.
• HDMI Support: Offers Deep Color, 3D support, and up to 7.1 uncompressed audio channels, improving video and sound quality in line with HDMI 2.0 standards.
• Independent Audio Routing: Routes any digital audio input to any output, producing a versatile 16x16 audio matrix, enhancing audio management for all connected devices.
• Easy Step-In Collaboration Function: Simplifies presentations by allowing devices to be connected and activated with a single button press, streamlining user interaction.
• EDID Management: Facilitates individual EDID management per input, capturing and storing display device specifications for optimal compatibility.
• Flexible Content Protection: Provides selectable HDCP per input, ensuring content rights management aligns with your setup requirements.
• Quick Access to Common Configurations: Allows saving of up to 16 preset configurations for immediate access, enhancing user convenience during operation.
• Smart Switching: Detects active sources and acceptors, with automatic input selection based on priority or last connected device, minimizing manual adjustments.
• Embedded Pattern Generator: Offers selectable patterns for testing and troubleshooting, ensuring the functionality of connected equipment.
• Convenient Unit Control and Configuration Options: Local control through an easily navigable front panel and remote functionality via Ethernet or serial connections, making setup and adjustments straightforward.
• Cost-Effective Maintenance: Simplifies maintenance with input selection indicators and firmware upgrades via Ethernet or mini USB, enhancing device longevity.
• Easy Installation: Designed for 19” rack mounting within a 1U space, complete with rack ears and a universal power supply, streamlining setup in different environments.

Kramer VS-88H2 Detailed Specifications
