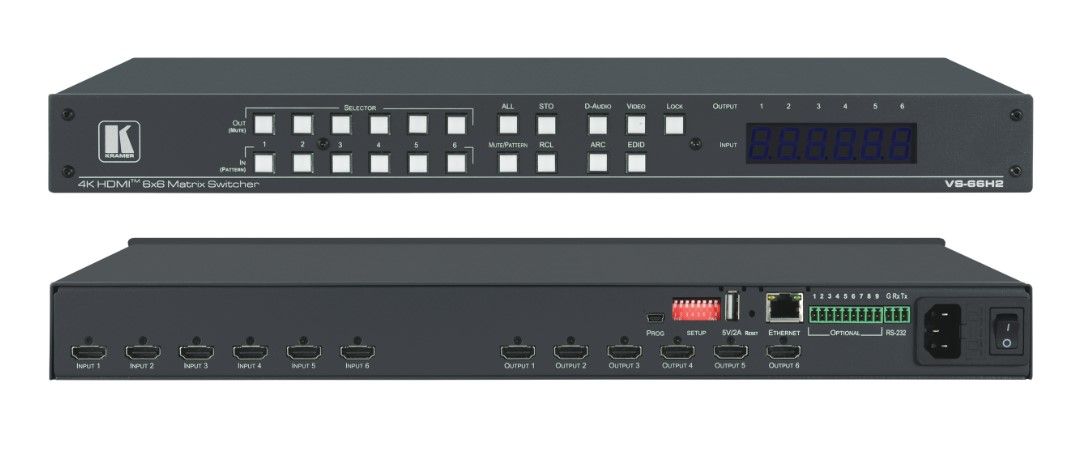

Kramer VS-66H2 6x6 4K HDR HDCP 2.2 Matrix Switcher with Digital Audio Routing

The VS-66H2 is a high-performance 6x6 matrix switcher for 4K@60Hz (4:4:4) HDR signals and digital audio routing. It reclocks and equalizes the signals and can route any one of 6 HDMI, HDCP-compliant sources (selectable) to any or all outputs simultaneously. VS-66H2 offers unmatched audio flexibility where any embedded digital audio input can be routed to any digital output in addition to six ARC sources to produce an equivalent 12x12 audio matrix.

Kramer VS-66H2 Matrix Switcher Features

• High-Performance AV Matrix: Switches 6 4K@60Hz (4:4:4), HDR, HDMI, HDCP (2.2/1.4)-compliant signals to 6 outputs at up to 18G data rate, ensuring optimal signal quality over long distances.
• HDMI Support: Supports Deep Color, 3D, ARC, and up to 7.1 uncompressed audio channels, enhancing the audio-visual experience.
• Independent Audio Routing: Routes any embedded digital audio input to any output, creating a versatile 12x12 audio matrix configuration.
• Easy Step-In Collaboration Function: Simplifies device connectivity, allowing users to quickly present their content by merely plugging in their device.
• EDID Management: Ensures optimal compatibility with different display devices through individual EDID settings.
• Flexible Content Protection: Offers selectable HDCP per input to accommodate various content protection requirements.
• Quick Access to Common Configurations: Saves up to 16 preset configurations for efficient management of settings.
• Smart Switching: Detects active sources and automatically selects inputs based on priority, enhancing user convenience.
• Embedded Pattern Generator: Provides selectable patterns for testing and configuration purposes.
• Convenient Unit Control: Features multiple control options including web pages, RS-232, and front panel for greater flexibility in operation.
• Cost-Effective Maintenance: Input selection indicators streamline troubleshooting and maintenance, with firmware updates possible via Ethernet or mini USB.
• Easy Installation: Designed for 19” rack mounting in a 1U space, facilitating quick setup with universal power supply support.
