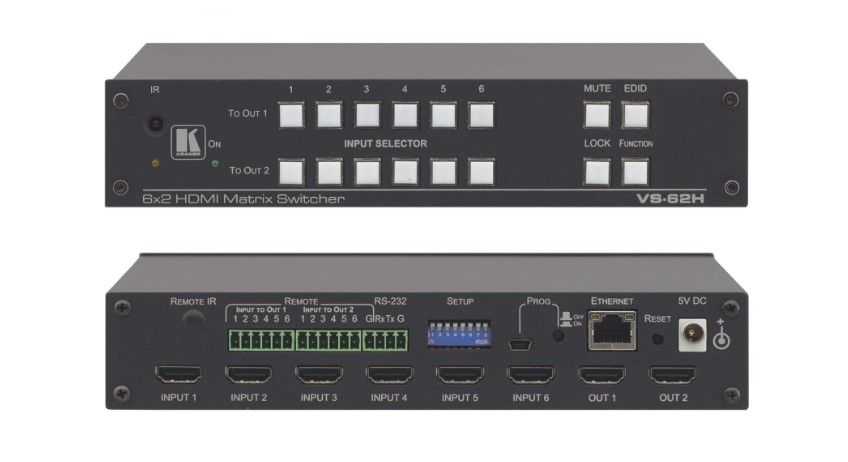

Kramer VS-62H 6x2 4K60 4:2:0 HDMI Automatic Matrix Switcher

The Kramer VS-62H is a top-tier 6x2 HDMI automatic matrix switcher designed for exceptional performance with 4K@60Hz (4:2:0) signals. This versatile switcher not only reclocks and equalizes HDMI signals but also allows for seamless routing of any input to either or both outputs simultaneously. With support for high-resolution displays and advanced features like programmable functionality, it’s the ideal choice for professional setups requiring reliable signal management.

Kramer VS-62H 6x2 HDMI Matrix Switcher Features

• Max. Data Rate: 8.91Gbps (2.97Gbps per graphics channel) - Ensures high-speed data transmission for smooth video performance.
• Max. Resolution: 4K@60Hz (4:2:0) and WUXGA - Supports high-definition graphics for an immersive viewing experience.
• HDCP 1.4 Compliant: Guarantees compatibility with protected content and devices.
• HDMI Support: 3D, Deep Color, x.v.Color™, Lip Sync, Dolby® TrueHD, Dolby Digital Plus, DTS-HD®, and 7.1 PCM - Delivers comprehensive audio and video performance for various formats.
• EDID Capture: Copies and stores EDID from display devices - Simplifies compatibility with connected displays.
• Programmable Step-In Functionality: Enables integration with compatible step-in devices for added flexibility.
• True Video Clock Detection: Ensures accurate video signal delivery without latency.
• Auto Switching Option: For either or both outputs, last-connected or priority switching - Offers convenience in signal management.
• Non-Volatile EDID Storage: Maintains configuration settings even after power loss.
• Kramer reKlocking™ & Equalization Technology: Enhances signal integrity for longer cable runs.
• Lock Button: Prevents unauthorized front panel access to settings.
• Internal Pattern Generator: Useful for testing and setup purposes.
• Kramer Protocol 3000 Support: Integrates with advanced control systems.
• Embedded Web Pages: Offer remote configuration and operation - Facilitates easy management over the network.
• Static or Dynamic DHCP IP Addressing: Provides flexible network configuration options.
• Flexible Control Options: Multiple ways to control including front panel, IR remote, RS-232, Ethernet, and embedded web server.
• USB Port: For upgrading firmware and future-proofing the device.

Kramer VS-62H Detailed Specifications
