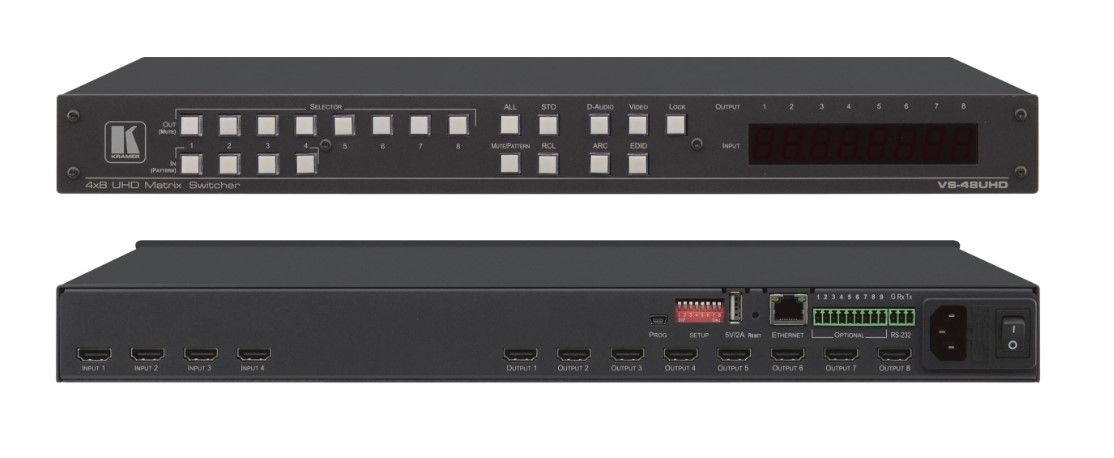

Kramer VS-48UHD 4x8 4K60 4:2:0 Matrix Switcher

The Kramer VS-48UHD 4x8 matrix switcher is designed for versatility and high performance in 4K@60Hz (4:2:0) HDMI signal management. With the ability to route HDMI sources to multiple outputs, it ensures a seamless experience for audio and video distribution. Features like independent audio matrixing and advanced EDID management provide flexibility and convenience, making it an ideal choice for both commercial and residential applications.

Kramer VS-48UHD 4x8 Matrix Switcher Features

• Max. Data Rate: 8.91Gbps data rate (2.97Gbps per graphics channel) - Ensures high-quality signal transmission for 4K video.
• Max. Resolution: 4K@60Hz (4:2:0) - Delivers stunning visuals without lag, ideal for modern displays.
• Independent 12x10 Audio Matrix: With 4 embedded digital inputs + 8 ARC inputs and 8 digital outputs + 2 ARC outputs - Provides flexible audio routing options for complex setups.
• Kramer Step-In Over HDMI Technology: Streamlines the connection process for easier user access.
• HDMI, HDCP, and DVI Compliance: Guarantees compatibility with a wide range of devices.
• Selectable HDCP Off per Input: Provides flexibility to handle non-encrypted content.
• Memory Locations: 12 presets for quick access to common configurations - Saves time during setups or presentations.
• Advanced EDID Management per Input: Enables optimal resolution and audio settings for connected devices.
• Active Source & Acceptor Detection: Automatically detects connected devices for seamless switching.
• Automatic Input Selection: Based on priority selection or last connected input - Simplifies the user experience.
• Firmware Upgrade: Via mini USB, Ethernet, or the RS-232 port - Ensures the device remains up-to-date with the latest features.
• HDMI Support: Deep Color, 3D, ARC, up to 7.1 uncompressed audio channels - Supports the latest audio and video formats.
• Kramer reKlocking™ and Equalization Technology: Rebuilds the digital signal to travel longer distances without loss of quality.
• Embedded Pattern Generator: With selectable patterns - Useful for testing and diagnostics.
• Lock Button: To prevent tampering - Provides security in public or shared environments.
• Kramer Protocol 3000 Support: Ensures compatibility with existing Kramer systems.
• Control Options: RS-232 serial commands, Ethernet port via LAN, embedded web pages for configuration and control - Allows for flexible integration into various control systems.
• Size: Standard 19" (1U). Rack "ears" included - Fits into standard racks for easy installation.

Kramer VS-48UHD 4x8 Matrix Switcher Specifications
