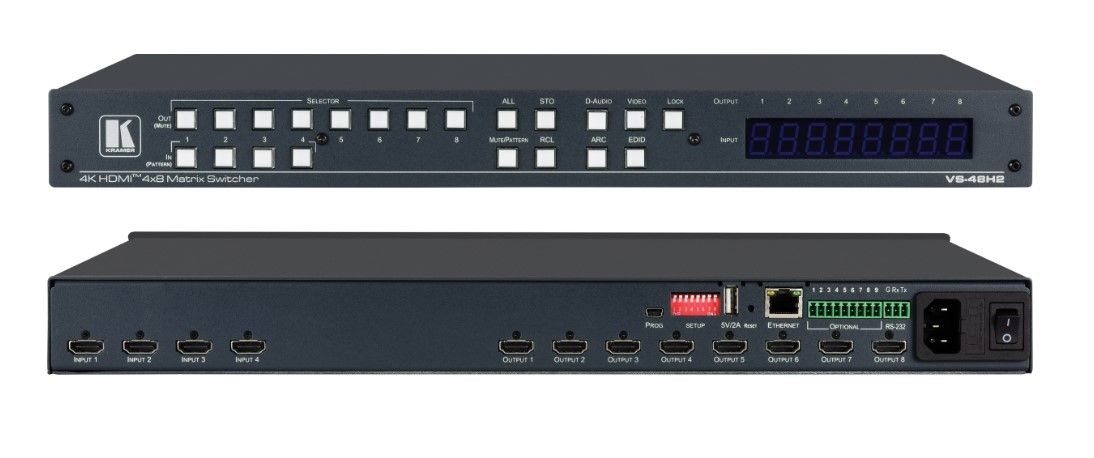

Kramer VS-48H2 4x8 4K HDR HDCP 2.2 Matrix Switcher with Digital Audio Routing
SKU
VS-48H2
Model No
VS-48H2
$3,496.00
Product Highlights
- EDID Management - Individual EDID management per input. Captures and stores the EDID from a display device
- Flexible Content Protection - Selectable HDCP per input
- Quick Access to Common Configurations - Save up to 16 preset configurations
- Smart Switching - Active source & acceptor detection. Automatic input selection based on priority selection or last connected input
- Embedded Pattern Generator - With selectable patterns
Speak to an expert
The Kramer VS-48H2 is a high-performance 4x8 matrix switcher designed for transmitting 4K@60Hz (4:4:4) HDR video signals with unparalleled efficiency. This state-of-the-art device not only re-clocks and equalizes signals but also provides exceptional audio routing capabilities, allowing seamless switching between 4 HDMI sources and delivering audio flexibility through a comprehensive 12x12 audio matrix.
Kramer VS-48H2 Camera Features
Features
- High-Performance AV Matrix: Switches 4 4K@60Hz (4:4:4), HDR, HDMI signals to 8 outputs at up to 18G data rate, ensuring high-quality video transmission over extended distances.
- HDMI Support: Delivers deep color and supports 3D, ARC, and up to 7.1 uncompressed audio channels, making it compliant with HDMI 2.0 specifications.
- Independent Audio Routing: Routes any embedded audio input to any output, creating a versatile 12x12 audio matrix for enriched audio configurations.
- Easy Step-In Collaboration Function: Facilitates instant connectivity; just plug in and press the Step-In button to activate your device on the main display.
- EDID Management: Allows for individual EDID management per input, capturing and storing display device settings for optimal performance.
- Flexible Content Protection: Features selectable HDCP per input to maintain content security across various sources.
- Quick Access to Common Configurations: Saves up to 16 preset configurations for speedy setup and convenience.
- Smart Switching: Utilizes active source and acceptor detection for automatic input selection, ensuring a smooth user experience.
- Embedded Pattern Generator: Provides selectable patterns for testing and troubleshooting purposes.
- Convenient Unit Control and Configuration Options: Offers local control and remote management via a user-friendly web interface, RS-232 commands, and Ethernet.
- Cost-Effective Maintenance: Input selection indicators enhance local maintenance efficiency, plus easy firmware upgrades via Ethernet or mini USB.
- Easy Installation: Designed for a 19” rack-mountable format in a 1U space, complete with rack ears and a universal power supply.
Kramer VS-48H2 Detailed Specifications
| Input Ports: | 4 x HDMI |
| Output Ports: | 8 x HDMI |
| Video Resolution: | 4K@60Hz (4:4:4) |
| Audio Channels: | Up to 7.1 uncompressed audio |
| Data Rate: | Up to 18G |
| EDID Management: | Individual per input |
| Power Supply: | 100-240V AC |
| Rack Size: | 1U |
SKU  | VS-48H2 |
|---|---|
| Manufacturer | Kramer |
| Video Input | 4 |
| Video Output | 8 |
