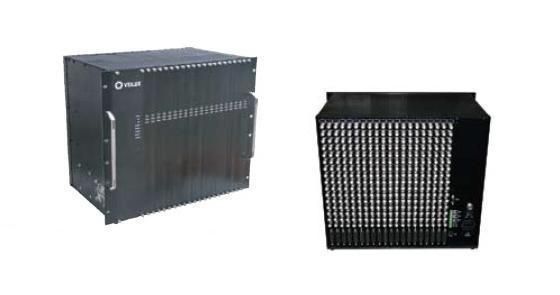

Veilux VMS-9U8032 Enterprise Modular Matrix Switcher (9u Unit) 80 Video Inputs 32 Video Outputs
SKU
VMS-9U8032
Model No
VMS-9U8032
$3,300.71
Product Highlights
- Camera Title Input Through PC, Built-in IP Port
- Plug-in Scalable High Density Architecture for Easy Expansion, 9U Standard Aluminium Alloy Case
- Password Protection to Prevent Unauthorized Operating; System Partitioning with Different Keyboard Priorities
- Video / Audio Port and Communications Port with Surge Protection and Thunder Proof
- Computer Backup for System Set, Heat Backup Mainframe Option Design
Speak to an expert
The VMS-9U8032 from Veilux is an Enterprise Modular Matrix Switcher designed for high-performance video management, featuring 80 video inputs and 32 video outputs. Its scalable architecture and advanced control options make it suitable for various environments, ensuring seamless integration and easy expansion.
Veilux VMS-9U8032 Key Features
- Camera Title Input Through PC: Allows for easy labeling and organization of video sources via a PC interface.
- Built-in IP Control Mode: Enables remote control and operation of the mainframe and video switch via IP, enhancing accessibility and convenience.
- Scalable High Density Architecture: Supports easy expansion with a modular design, accommodating future growth in video inputs and outputs.
- Password Protection: Safeguards against unauthorized access, ensuring system security with different keyboard priority settings.
- Surge Protection: Provides safety for video/audio and communications ports against voltage spikes, enhancing equipment longevity.
- Computer Backup Option: Facilitates system recovery and data safety, ensuring operational reliability in case of failures.
- Multi-Level Ethernet Connections: Supports up to 64 branch keyboards, enabling complex remote programming and control capabilities.
- Menu-Driven Functionality: All matrix functions can be easily set through a user-friendly menu interface.
- Auto Turn On Features: Automated sensor and light features optimize operation efficiency, recording automatically after an alarm is triggered.
- Preset Alarm Modes: Options for timing, manual, and inspection modes enhance security and monitoring flexibility.
- Expandable Capacity: Ability to expand up to 512 video outputs and 9999 video inputs with loop design, ensuring future-proofing for extensive installations.
Veilux VMS-9U8032 Detailed Specifications
| Feature | Details |
|---|---|
| Model | VMS-9U8032 |
| Unit Size | 9U |
| Video Inputs | 80 |
| Video Outputs | 32 |
| IP Control | Built-in IP control mode |
| Expansion Capability | Expandable to 512 channel video outputs, 9999 channel video inputs |
| Password Protection | Yes |
| Surge Protection | Yes |
| Multi-Level Ethernet | Supports 64 branch keyboards, more than 3 levels of connections available |
| Backup Design | Computer backup and heat backup mainframe option |
SKU  | VMS-9U8032 |
|---|---|
| Manufacturer | Veilux |
| Video Input | 80 |
| Video Output | 32 |
