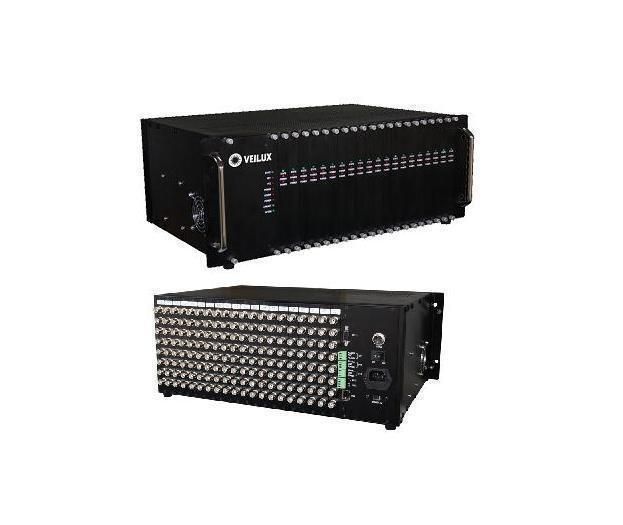

Veilux VMS-4U7232 VMS-4000 Series, Commercial Modular Matrix Switcher 72 Video Inputs & 32 Video Outputs
SKU
VMS-4U7232
Model No
VMS-4U7232
$2,563.86
Product Highlights
- Camera Title Input Through PC, Built-in IP Port
- Plug-in Scalable High Density Architecture for Easy Expansion, 4U Standard Aluminum Alloy Case
- Password Protection to Prevent Unauthorized Operating; System Partitioning with Different Keyboard Priorities
- Video/Audio Port and Communications Port with Surge Protection and Lightning Proof
- Computer Backup for System Set, Hot Backup Mainframe Option Design
Speak to an expert
The VMS-4U7232 from Veilux is a VMS-4000 series, commercial modular matrix switcher featuring 72 video inputs and 32 video outputs. This high-performance unit is designed for scalability and efficient control of video networks, making it ideal for various commercial applications.
Features
- Camera Title Input Through PC: Easily manage video feeds and titles via PC interface, enhancing user experience and organization.
- IP Control Mode: Integrated IP control for seamless operation of the mainframe and video switch, allowing for convenient access and control through Internet Explorer.
- High Density Architecture: Features a plug-in scalable architecture for easy expansion, ensuring you can grow your system effortlessly within a robust 4U aluminum alloy case.
- Password Protection: Enhanced security measures prevent unauthorized operations, giving peace of mind through system partitioning and keyboard priority settings.
- Surge Protection: With built-in surge protection and lightning proofing on video/audio and communications ports, this matrix switcher ensures reliable and safe operation.
- Backup Options: Computer backup capability and hot backup mainframe design offer dependable recovery options and system reliability.
- Surveillance Integration: Combines video/audio switch card, alarm input card, and follow control card into one integrated surveillance mainframe for streamlined functionality.
- Expanded Connectivity: Capable of connecting up to 16 branch keyboards and over 3-level Ethernet connections for remote programming and control, enhancing operational flexibility.
- Menu-Driven Functions: All matrix functions can be set through an intuitive menu system, which simplifies the configuration of input and output routing.
- Auto Functions: Features an auto turn-on pickup sensor and light that activates recording and image switching automatically upon alarm detection.
- Versatile Alarm Modes: Supports multiple alarm modes including timed, manual, and various options for alarm arming/disarming and recording.
Veilux VMS-4U7232 Detailed Specifications
| Model | VMS-4U7232 |
| Video Inputs | 72 |
| Video Outputs | 32 |
| IP Control Mode | Yes |
| Architecture Type | Modular Plug-in Scalable |
| Protection Features | Surge & Lightning Proof |
| Backup Options | Computer Backup & Hot Backup Mainframe |
| Connectivity | 16 Branch Keyboards, 3 Level Ethernet |
| Alarm Modes | Timed, Manual, Normally Armed/Disarmed |
| Dimensions | 4U Standard Case |
| Weight | Not specified |
SKU  | VMS-4U7232 |
|---|---|
| Manufacturer | Veilux |
| Video Input | 72 |
| Video Output | 32 |
