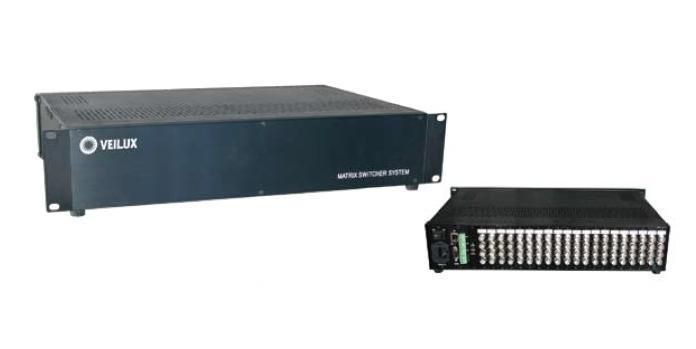

Veilux VMS-2U4008 Basic Modular Matrix Switcher 40 Inputs 8 Outputs

The VMS-2U4008 from Veilux is a Basic Modular Matrix Switcher that offers 40 inputs and 8 outputs for streamlined video surveillance management. Its robust features include easy expansion, remote programming capabilities, and advanced alarm functionalities, making it a versatile solution for various security applications.

Veilux VMS-2U4008 Key Features

• Camera Title Input Through PC: Enables easy identification and management of camera feeds.
• Built-in IP Control Mode: Facilitates remote operation of the mainframe and video switch via IP, supporting Internet Explorer.
• Modular Structure: Offers seamless expansion options within a 2U standard aluminum alloy case.
• Password Protection: Safeguards against unauthorized access and operational mishaps via system partitioning and keyboard priorities.
• Surge Protection: Ensures reliable performance of video/audio ports and communication ports against environmental factors.
• Integrated Surveillance Mainframe: Combines video/audio switch card, alarm input card, and follow control card into one unit for efficiency.
• Multiple Branch Keyboards: Supports connection for up to 16 branch keyboards with advanced Ethernet capabilities for remote operations.
• Menu-Set Functions: Offers intuitive interface for setting functions, inputs, and outputs with a loop design.
• Auto Activation: Features automatic activation of the pick-up sensor and light, along with smart image switching and recording post-alarm.
• Flexible Alarm Modes: Includes various alarm settings such as timed, manual, and conditional recording capabilities.
• Diverse Protocol Support: Compatible with multiple control protocols including PELCO-D, PELCO-P, and others, with adjustable baud rates.
• Backup Options: Facilitates computer backup for system settings with an optional hot backup design for mainframes.

Veilux VMS-2U4008 Detailed Specifications
