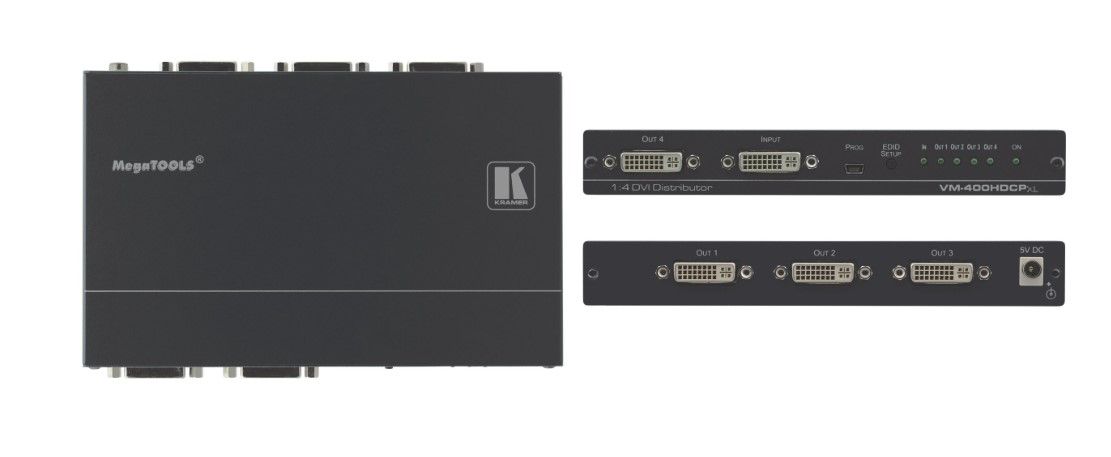

Kramer VM-400HDCPXL 1:4 DVI (HDCP) Distribution Amplifier

The VM-400HDCPxl is a 1:4 distribution amplifier for up to 4K@60Hz (4:2:0) HDMI signals, complying with HDCP 1.4 content protection standard, via single-link DVI-I connections. The unit takes one DVI input, equalizes and reclocks the signal, and distributes it to four identical outputs.

Kramer VM-400HDCPXL Camera Features

Features

• High Performance Distributor: Professional 1:4 DVI distributor for up to 4K@60Hz (4:2:0) video resolution signals, ensuring high-quality visual output through advanced signal processing.
• Secured Operation: Highly-secured operation is ensured by lockable wiring connectivity, preventing accidental disconnections and ensuring reliable performance.
• HDMI Signal Transmission: Supports HDCP 1.4 compliance with deep color, x.v.Color™, lip sync, and advanced audio formats including 7.1 PCM, Dolby TrueHD, DTS-HD for immersive viewing experiences.
• EDID Pass-through: Ensures plug-and-play operation by passing the EDID signals from the source to displays, simplifying setup and reducing compatibility issues.
• User-Friendly Operation: Features like RGB forcing and convenient front panel EDID selection facilitate easy adjustments for maximum compatibility.
• Cost-Effective Field Maintenance: Mini-USB connection allows for straightforward firmware upgrades with the Kramer K-Upload tool, while status indicators aid in quick troubleshooting.
• Easy Installation: Compact MegaTOOLS™ fan-less design supports flexibility for both over-ceiling mounting and side-by-side rack configurations.

Kramer VM-400HDCPXL Detailed Specifications
