Kramer VM-2H2 4K HDMI Distribution Amplifier with HDCP2.2 and HDMI2.0
SKU
VM-2H2
Model No
VM-2H2
$364.00
Product Highlights
- Kramer Equalization & re-Klocking™Technology - Rebuilds the digital signal to travel longer distances
- Force RGB - When the display lacks YCbCr capabilities, the user can force native delivery of the RGB color format in HDMI content to improve picture quality
- Selectable HDCP Authorization - Allows the user to control the appearance of an HDCP or non-HDCP input to the source to permit delivery of protection-free content, such as personal clips and charts, without HDCP encryption. HDCP protected content is not passed in non-HDCP mode
- Field Maintenance - RS-232 connection for simple field firmware upgrade, status indicators for HDMI input and output connected signals, and power indicator, for ease of maintenance and troubleshooting
- Easy Installation - Compact Mega TOOLS™fan-less enclosure for over-ceiling mounting, or side-by-side rack mounting
Speak to an expert

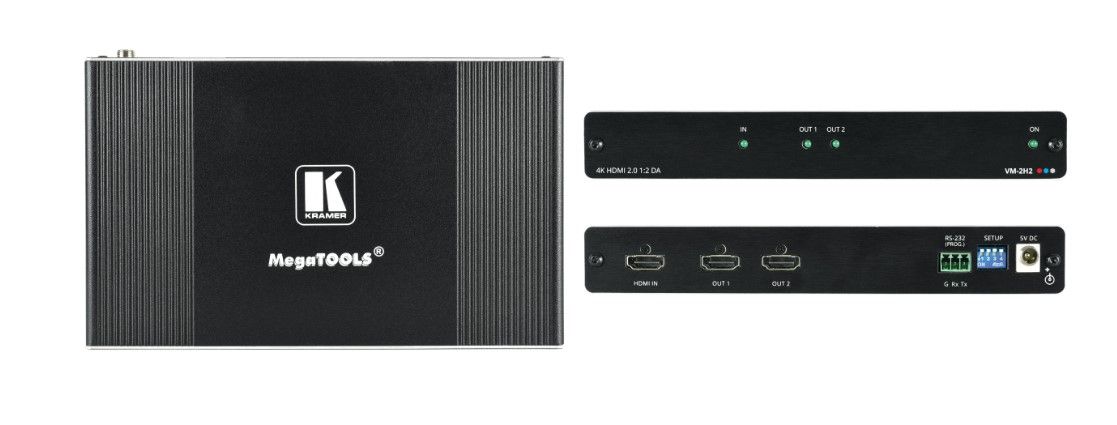

The VM-2H2 is a 1:2 distribution amplifier designed for high-performance 4K HDR HDMI signals, compliant with HDCP 2.2. This device takes one HDMI input, equalizes and reclocks the signal, distributing it to two identical outputs, ensuring your audio-visual experience is seamless and high-quality.
Kramer VM-2H2 HDMI Distribution Amplifier Features
- Max. Data Rate: 17.82Gbps (5.94Gbps per graphic channel) - Enables smooth transmission of high-resolution content without lag.
- Max. Resolution: 4K@60Hz (4:4:4) - Supports the latest Ultra HD formats for stunning visuals.
- HDMI Signal Transmission: HDR, HDCP 2.2 compliant signal - Delivers deep color, 3D support, and advanced audio formats for a rich viewing experience.
- Intelligent EDID Handling: Ensures optimal compatibility between HDMI source and display systems by utilizing connected display EDID or default options.
- Kramer Equalization & re-Klocking™ Technology: Rebuilds digital signals for longer-distance transmission without loss of quality.
- Force RGB: Adjusts color format delivery when displays lack YCbCr capabilities, enhancing image clarity.
- Selectable HDCP Authorization: Manage HDCP compliance for content, allowing the use of unprotected media easily.
- Field Maintenance: RS-232 connection for firmware updates and signal status indicators simplify troubleshooting.
- Easy Installation: Compact design allows for flexible mounting options, either overhead or in racks.
Kramer VM-2H2 Detailed Specifications
| Feature | Details |
|---|---|
| Type | 1:2 HDMI Distribution Amplifier |
| Data Rate | 17.82Gbps |
| Max Resolution | 4K@60Hz (4:4:4) |
| HDCP Compliance | HDCP 2.2 |
| Audio Formats | 7.1 PCM, Dolby TrueHD, DTS-HD |
| EDID Handling | Intelligent EDID with options |
| Equalization & Re-Klocking | Kramer patented technology |
| Control | RS-232 for firmware updates |
| Physical Design | Fan-less enclosure for flexible installation |
SKU  | VM-2H2 |
|---|---|
| Manufacturer | Kramer |
| Format | Digital |
| In-Outputs | 1 - 2 |
| Video Inputs | HDMI |
| Video outputs | HDMI |
| Mount Options | Rack Mountable |
