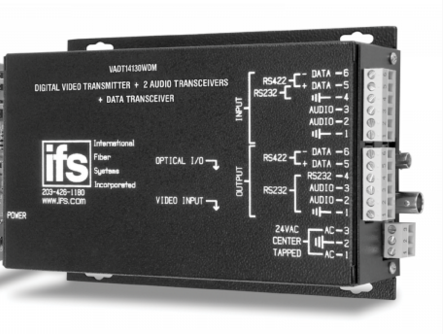

GE Security Interlogix VADT14130WDM Video Transmitter, 2 Channel Data Transceiver, 2 Channel Audio Transceiver, SM

SKU
VADT14130WDM
GE Security Interlogix VADT14130WDM Video Transmitter, 2 Channel Data Transceiver, 2 Channel Audio Transceiver, SM VADT14130WDM by Interlogix
GE Security Interlogix VADT14130WDM Video Transmitter, 2 Channel Data Transceiver, 2 Channel Audio Transceiver, SM VADT14130WDM by Interlogix
Model No
VADT14130WDM
$2,511.00
Qty:
Product Highlights
    • 10-Bit Digitally Encoded Video Transmission
    • Exceeds RS-250C Short-Haul Transmission NTSC, PAL, SECAM Compatible
    • Full Color Compatibility
    • NTCIP Compatible
    • 20-Bit Digitally Encoded Stereo Audio

The VADT14130WDM is a powerful video receiver/2 channel audio and data transceiver w/ sync from Interlogix which promotes transmission of digitally encoded 20-bit stereo audio, digitally encoded 10-bit video, Genlock, and bi-directional data transmission over 1 multimode or single mode fiber. The VADT14130WDM data transceiver comes with NTSC/SECAM/PAL compatibility, full color compatibility, no infield electrical/optical adjustments required, as well as hot-swappable rack modules. The VADT14130WDM transceiver also features a 5 Hz - 10 MHz bandwidth, a 67dB SNR, a 43 mile distance, plus a 600ohm impedance, and a compact size. This professional transceiver is suited for delivering exceptional use, and is suited for use in demanding transmission applications.

Features

  • 10-Bit Digitally Encoded Video Transmission
  • Exceeds RS-250C Short-Haul Transmission NTSC, PAL, SECAM Compatible
  • Full Color Compatibility
  • NTCIP Compatible
  • 20-Bit Digitally Encoded Stereo Audio
  • 600 Ohm Impedance Line-Level Audio
  • No In-field Electrical or Optical Adjustments Required
  • Reverse Sync for Genlock
  • LED Status Indicators For Monitoring All Critical Operating Parameters
  • Hot-Swappable Rack Modules
  • Automatic Resettable Fuses on all Power Lines
  • Tested and Certified by an Independent Testing Laboratory forFull Compliance with the Environmental Requirements Ambient Operating Temperature, Mechanical Shock, Vibration, Humidity with Condensation, High-Line/Low-Line Voltage Conditions and Transient Voltage Protection) of NEMA TS-1/TS-2 and the Caltrans Specification for Traffic Signal Control Equipment
  • Distances up to 43 Miles (69 km)
SKU  VADT14130WDM
Manufacturer  Interlogix
Fiber Optic Transmission use  Audio, Serial Data, Video
Channels  5 Channel
Connection Type  FC, SC, ST
Format  Single Mode
Mounting Options  Stand Alone, Surface Mount
There are no related videos.
Downloads & Manuals
SKU
VADT14130WDM
Availability: In stock
