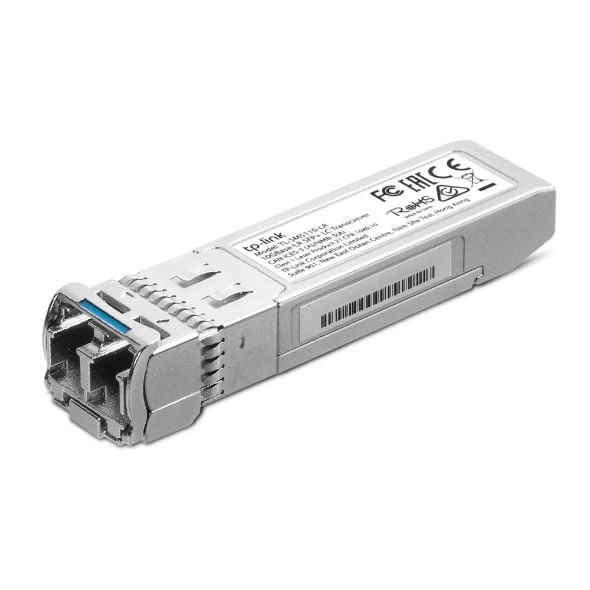

TP-Link SM5110-LR 10GBase-LR SFP+ LC Transceiver
SKU
SM5110-LR
Model No
SM5110-LR
$32.82
Product Highlights
- Compatible with SFP+ MSA, IEEE 802.3ae, SFF-8472
- Up to 10.3125 Gbps transmission speed and 10 km transmission distance
- Digital Diagnostic Monitoring (DDM)
- Supports Hot Swappable
Speak to an expert
TP-Link TL-SM5110-LR Camera Features
The TL-SM5110-LR is designed to extend transfer distances based on 10Gbps Ethernet connectivity. It is a 10GBASE-LR high-performance 1310 nm single-mode SFP+ transceiver. It supports full duplex, 10G Ethernet connections up to 10 km with 9/125µm fiber cables respectively.
Features
- Compatible: Compatible with SFP+ MSA, IEEE 802.3ae, SFF-8472, ensuring broad compatibility with existing infrastructure.
- High Speed: Up to 10.3125 Gbps transmission speed and 10 km transmission distance, providing fast data transfer for demanding applications.
- Monitoring: Digital Diagnostic Monitoring (DDM) allows for real-time monitoring of the transceiver's performance.
- Hot Swappable: Supports Hot Swappable functionality for easy upgrades and replacements without any downtime.
TP-Link TL-SM5110-LR Detailed Specifications
| Feature | Details |
|---|---|
| Product Type | 10G SFP+ LC Transceiver |
| Wavelength | 1310 nm |
| Transmission Distance | Up to 10 km |
| Connector Type | LC |
| Transmission Speed | Up to 10.3125 Gbps |
| Duplex Mode | Full Duplex |
| Compliance | SFP+ MSA, IEEE 802.3ae, SFF-8472 |
| Feature Support | Digital Diagnostic Monitoring, Hot Swappable |
SKU  | SM5110-LR |
|---|---|
| Manufacturer | TP-Link |
| Fiber Optic Transmission use | SFP Module |
| Format | Single Mode |
| Channels | 1 Channel |
| Connection Type | LC |
| Mounting Options | Modules |
