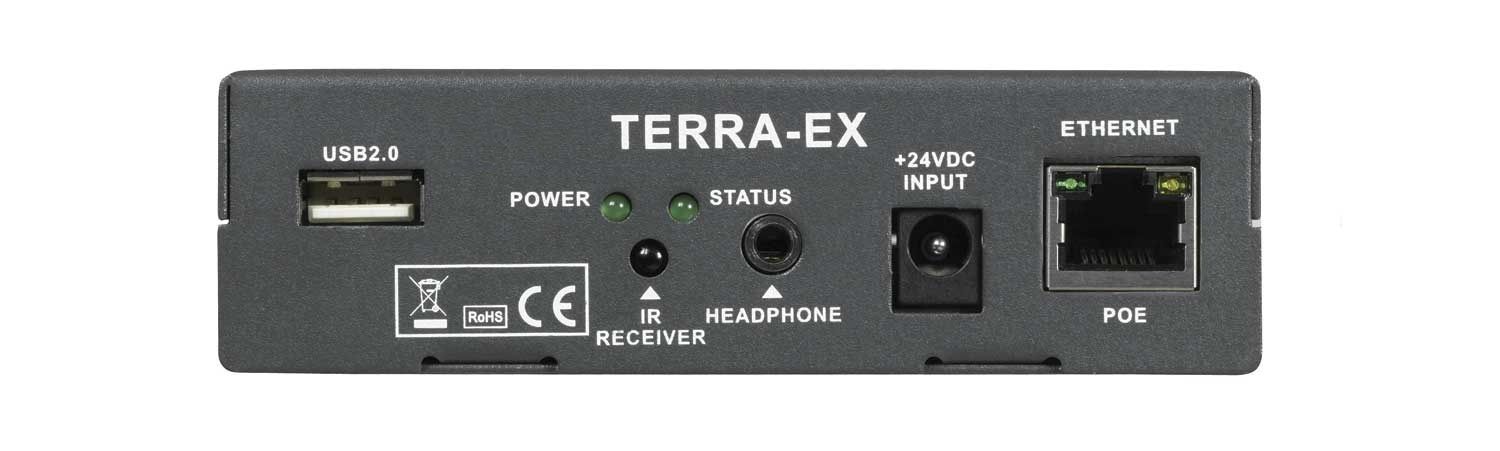

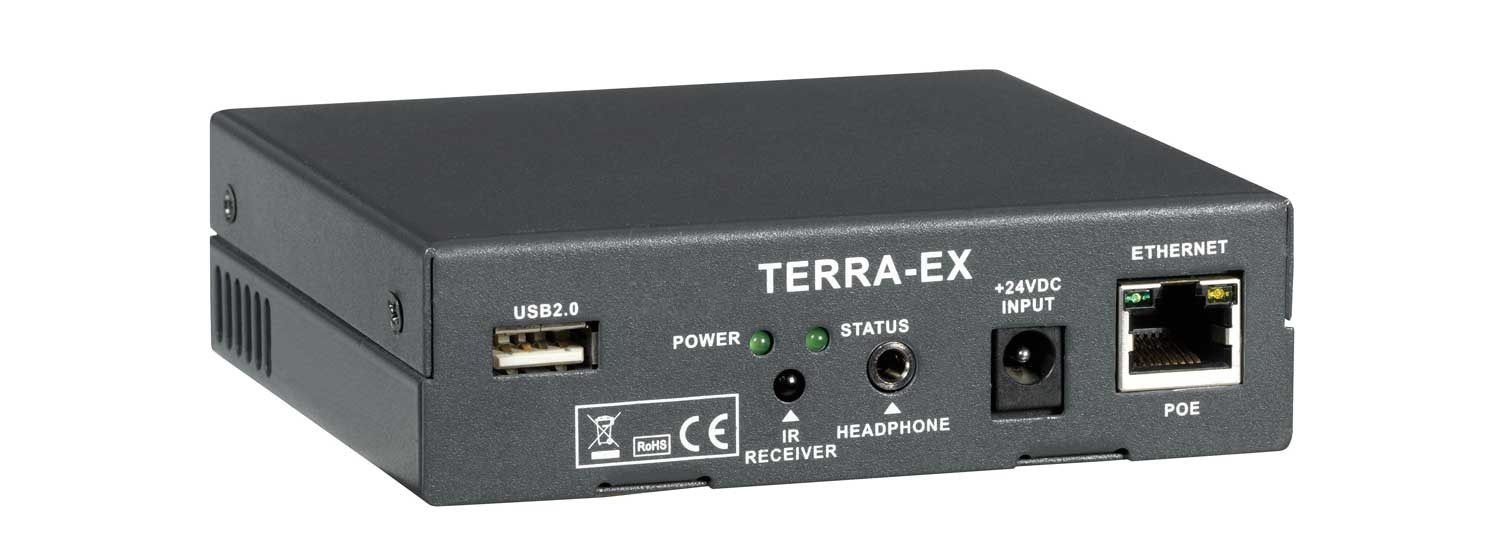

Bogen TERRAEX IP Audio Decoder

The Bogen TERRAEX IP Audio Decoder is an advanced solution for your audio output needs, offering high-quality sound management features including two balanced outputs, PoE capability, and a USB interface for easy playlist management. Designed to be cost-effective and flexible, it is ideal for various applications, especially in-store scenarios where sound output quality and system simplicity are crucial. The included scheduler and the ability to modify volume and channels via a remote control enhance its practical usage.

Bogen TERRAEX IP Audio Decoder Features

• Audio Outputs: 2 balanced independent lines outputs ensure high-quality sound distribution for clarity and performance.
• Headphone Output: 1 headphone output on mini-jack allows for easy monitoring of audio without disturbing the environment.
• Audio Performance: Maximum output level of +5 dB and a bandwidth of 20 Hz - 20 kHz provide excellent audio fidelity.
• Power Over Ethernet: Ethernet interface including PoE saves installation costs and simplifies wiring by using existing network infrastructure.
• Power Supply Flexibility: 24 VDC power supply option available if PoE is not accessible, ensuring uninterrupted operation.
• Audio Decoding: Supports G.711, G.722, and MP3 formats, providing versatile playback options for different audio sources.
• USB Accessibility: Optional USB port for connecting a USB memory stick allows for convenient playlist backup and pre-recorded announcements.
• LED Indicators: Power & Status LED helps in easily identifying the device's operational status at a glance.
• Remote Control Functionality: 1 IR receiver option facilitates easy local adjustment of volume and channel settings.

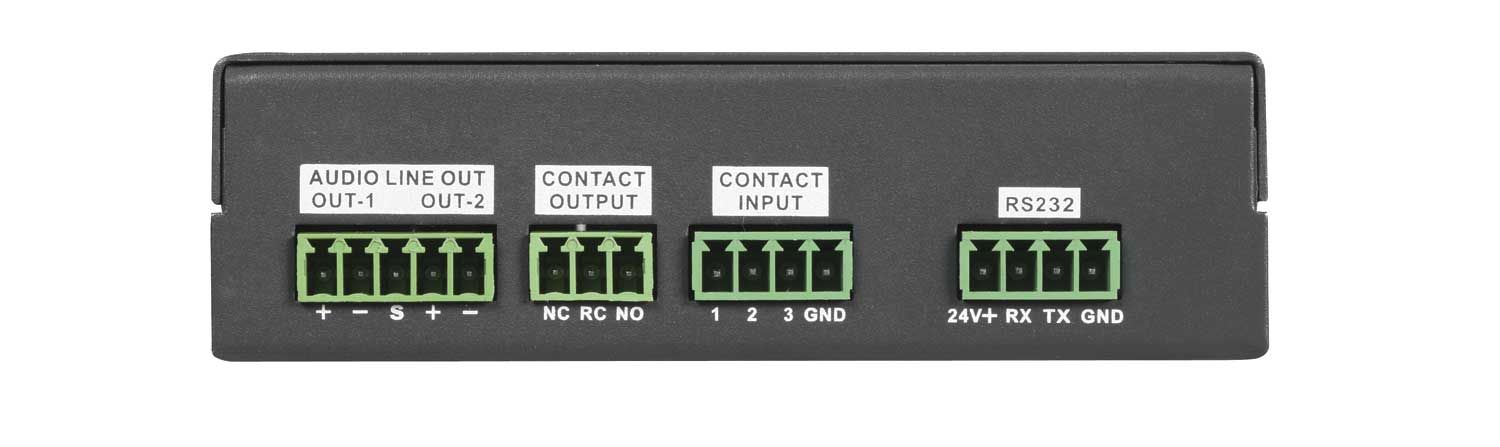

• Input/Output Contacts: 3 contact inputs and 1 relay output enhance the device's interactivity with other systems.
• RS-232 Interface: 1 RS-232 on Euro Block provides additional control and integration capabilities.
• Energy Efficiency: Power consumption of only 2 watts ensures low operating costs while maintaining performance.
• Compact Size: Weighing only 433 g and measuring 104 mm in depth, 32 mm in height, and 109 mm in width, it fits seamlessly into any setup.

Bogen TERRAEX IP Audio Decoder Specifications
