Bogen TERRA-IEXU 2 Channel Audio Over IP Encoder/Decoder with USB

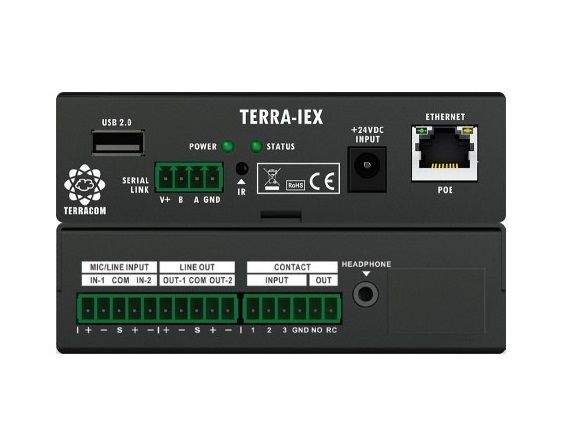

The TERRA-IEXU from Bogen is a 2 channel audio over IP encoder/decoder that serves as an ideal audio source for your IP network. This device encodes mic/line balanced inputs or an optional S/PDIF input into unicast/multicast formats while providing 2 independent balanced outputs for full-duplex communication. Equipped with a USB slot for playlist backup or IP streaming sources, the TERRA-IEXU allows for local volume and channel adjustments via an IR remote control.

Bogen TERRA-IEXU Key Features

• Audio Inputs: 2 Mic/line balanced inputs facilitate connection to various audio sources for versatile use.
• Audio Outputs: 2 independent balanced line outputs offer reliable full-duplex communication capabilities.
• USB Slot: 1 USB slot allows for playlist backup and helps in streaming audio over IP.
• Headphone Output: 1 headphone output on mini-jack provides direct listening options for monitoring.
• Options for SPDIF: Equipped with a SPDIF transceiver (optional) for high-quality audio input.
• Audio Performance: Maximum level +5 dB, bandwidth from 20 Hz to 20 kHz ensures high-quality audio transmission.
• Network Connectivity: Ethernet interface including POE (Power Over Ethernet) for easy installation and setup.
• Power Supply: 24 VDC power supply available for installations without POE.
• Audio Encoding: Supports G.711, G.722, and MP3 audio encoding/decoding for diverse audio format handling.
• Power & Status LED: Provides essential information about the device’s operational status.
• IR Receiver: Optional IR receiver for remote control functionality enhances usability.
• Contact Inputs & Relay Output: Includes 3 contact inputs and 1 relay output for additional operational flexibility.
• RS 232 Connectivity: Features RS 232 support on Euro Block for robust communication options.
• Energy Efficient: Operates on low power consumption of just 3 W.
