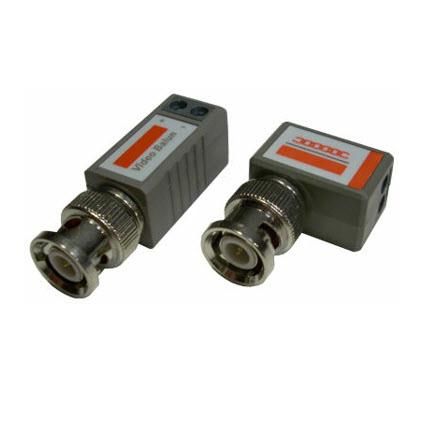

SecurityTronix ST-CCTV-VB-KIT 1 Channel Composite Video Balun Kit

The ST-CCTV-VB-KIT baluns are designed for CCTV signal transmission over unshielded twisted pair (UTP) wire. These baluns are an alternative solution to coaxial and fiber based systems, providing for fast, easy installation, saving time and money. While allowing for substantial savings on the cost of the cable itself the ST-CCTV-VB-KIT baluns provide superb quality on long range transmission. Since these baluns are passive video transceivers, no power is required. Transmission range for color video is 1,300 feet (400 meters) while black & white video can travel up to 1,900 feet (600 meters) via unshielded twisted pair wire. Both units are sold as a kit which includes a transmitter and a receiver.

SecurityTronix ST-CCTV-VB-KIT - Key Features

• Composite video over twisted pair: Enables efficient transmission of video signals without degradation.
• Alternative to fiber or coaxial based systems: Offers flexibility and cost-effective solutions for video surveillance.
• Fast, easy installation: Streamlines the setup process, reducing labor costs and installation time.
• Substantial savings on cable costs: Utilizes affordable UTP wiring instead of expensive coaxial or fiber optics.
• Superb quality on long range transmission: Maintains high-quality video over great distances.
• No power required: Passive design saves on energy costs and simplifies installation.
• Transmits color video up to 1,300 feet (400 meters): Ideal for extended camera placements without loss of quality.
• Transmits black & white video up to 1,900 feet (600 meters): Extended range for black and white video feeds enhances surveillance capabilities.

SecurityTronix ST-CCTV-VB-KIT - Detailed Specifications
