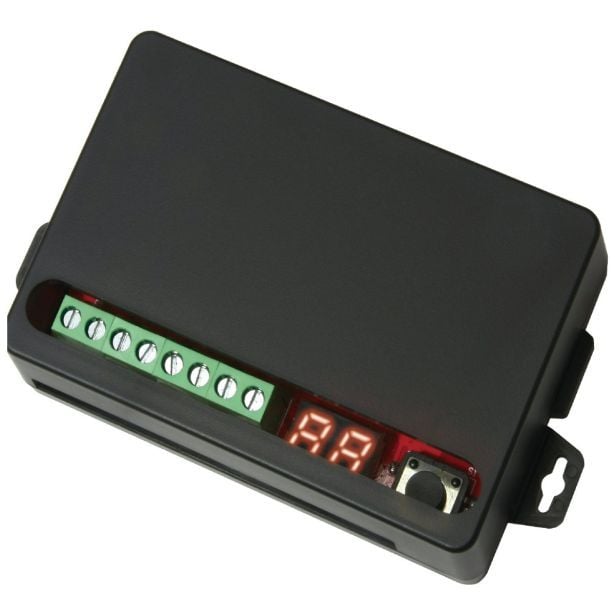

Seco-Larm SK-910RD1 1-Channel RF Receiver

The Seco-Larm SK-910RD1 1-Channel RF Receiver is a versatile device designed to remotely control various appliances like garage doors, lights, and gates. With dual-frequency support and independent programmable channels, this receiver provides unmatched flexibility and compatibility, ensuring seamless operation with a wide range of ENFORCER transmitters.

Seco-Larm SK-910RD1 Camera Features

Features

• Flexible Voltage: Operates on 10~24 VAC/VDC for versatile power options.
• Dual Frequency Reception: Simultaneously receives 315 and 433.92MHz signals with optional Extended Range Antenna for enhanced operation.
• Extended Range: Achieve a range of up to 500ft (150m) or 1,000ft (300m) with the Extended Range Antenna for extended operational capability.
• Programmable Channels: Independently programmable channels with support for up to 15 transmitter button codes per channel for customized control.
• Easy Programming: Pushbutton programming that eliminates the need for jumpers or switches, making setup convenient and hassle-free.
• Multiple Output Modes: Five output modes/channel to suit different operational needs: timed pulse (0.5~99sec), timed pulse (1~99min), toggle, latch, and follow (validity).
• Broad Compatibility: Works with all ENFORCER SK-series transmitters and compatible with both 315MHz and 433.92MHz frequencies.

Seco-Larm SK-910RD1 Detailed Specifications
