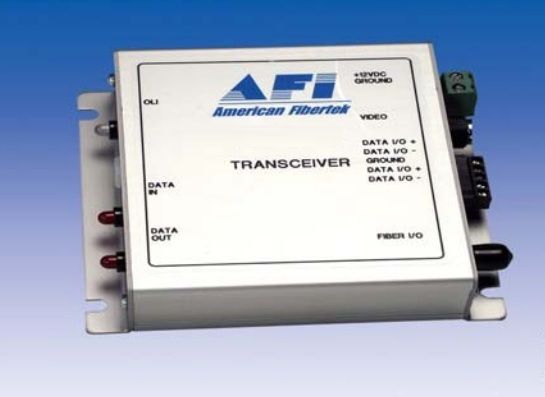

American Fibertek RR-0500SL 20mA Current Loop Data Transceiver, Single-Mode, ST Connector

The American Fibertek RR-0500SL is a low cost, low profile 20mA current loop data transceiver system. Data transmit and receive is accommodated on one single mode optical fiber. These products are compatible with the AMAG M2100 DBU and M2150 8DBC access control equipment. The 0500SLs are factory set to be passive inputs and active outputs.

However, the units have internal jumpers to allow independent field setting of the inputs and outputs to either active or passive, if required. Transceivers are packaged in compact extrusions.

American Fibertek RR-0500SL Camera Features

Features

• 20mA Current Loop Data Transceiver: Provides efficient data transmission over long distances with minimal interference.
• Diagnostic: LED Power Indicator: Ensures easy monitoring of power and data activity levels for both transmit and receive.
• Modular Transceiver: Facilitates flexible installation options to meet specific system requirements.
• Single mode Optics: Allows for optimal performance in data transmission, reducing signal loss.
• Active Output, Passive Input Ports: Enables customizable input/output settings to suit various operational needs.
