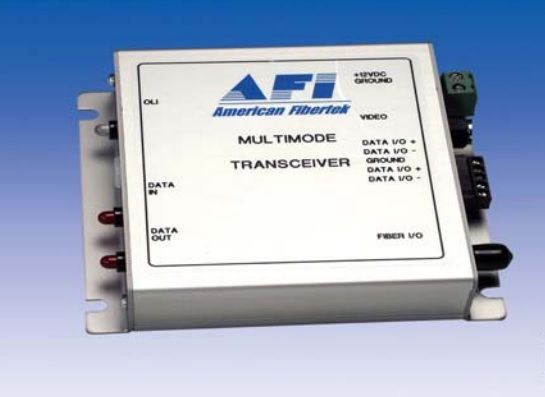

American Fibertek RR-0500 20mA Current Loop Data Transceiver, Multi-Mode, ST Connector

The American Fibertek RR-0500 is a low cost, low profile 20mA current loop data transceiver system. Data transmit and receive is accommodated on one multimode optical fiber. These products are compatible with the AMAG M2100 DBU and M2150 8DBC access control equipment. The 0500s are factory set to be passive inputs and active outputs.

However, the units have internal jumpers to allow independent field setting of the inputs and outputs to either active or passive, if required. Transceivers are packaged in compact extrusions.

American Fibertek RR-0500 Camera Features

Features

• 20mA Current Loop Data Transceiver: Ensures reliable data communication over a long distance.
• Diagnostic LED Indicators: Tx Data Activity & Rx Data Activity - Facilitates easy troubleshooting with clear visual feedback on data transmission status.
• Modular Transceiver: Allows for flexible installations and upgrades as necessary.
• Multimode Optics: Supports various fiber optic connections for versatility in setup.
• Active Output, Passive Input Ports: Offers customization options ideal for specific setups, as ports may be field set active or passive based on user requirements.

American Fibertek RR-0500 Detailed Specifications
