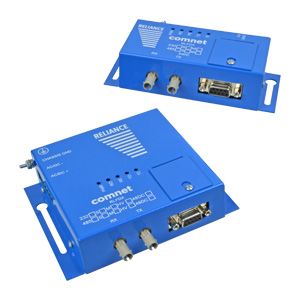

Comnet RLFDX485M2/48DC Substation-Rated RS-422 And RS-485 2/4 Wire Data Link/Repeater, 48VDC

The Comnet RLFDX485M2/48DC Substation-Rated RS-422 and RS-485 2/4 Wire Data Link/Repeater is engineered for rugged environments, providing reliable communication solutions in electrical utility substations and other demanding settings. This high-performance device ensures superior operational safety and enhanced reliability, making it an ideal choice for mission-critical applications.

Comnet RLFDX485M2/48DC Unique Features

• Backward-Compatibility: Fully electrically, mechanically, and optically identical to the Garrettcom/Dymec 5843 series, allowing seamless integration without needing network changes.
• Versatile Transmission: Supports full-duplex, half-duplex, or simplex transmission for RS-232, RS-422, RS-485 2/4-wire data, or TTL logic, enhancing flexibility in various applications.
• Certification: Meets IEEE 1613 Class 2 standards for electrical utility substations, ensuring compliance with industry standards for safety and functionality.
• Diagnostic Features: Equipped with a diagnostic test mode to verify copper and optical connections prior to network activation, minimizing downtime and maintenance tasks.
• Extreme Temperature Range: Operates reliably in temperatures from -40º to +85º C, making it suitable for virtually any environmental conditions without the need for cooling systems.
• Long Optical Distances: Achieves transmission distances of up to 5 km over multimode fiber and 30 km over single-mode fiber, ensuring connectivity across large areas.
• Reliable Power Supply: Features an internal high-reliability power supply with a screw terminal block for direct connection to power sources, providing maintenance-free operation.
• Status Indicators: LED indicators display real-time operational status for easy monitoring and management.
• Durable Enclosure: Housed in a rugged galvannealed and powder-coated panel-mount enclosure, offering protection against harsh environments.
• Ingress Protection: IP-30 rated for protection against 2.5 mm objects, safeguarding internal components from dust and debris.
• Optional Coating: Conformal coating of the circuit boards is available for enhanced humidity protection, ideal for various industrial applications.
• Made in the USA: Quality assurance with products manufactured in the United States.

Comnet RLFDX485M2/48DC Detailed Specifications
