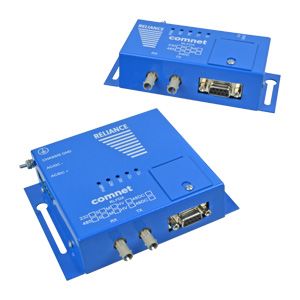

Comnet RLFDX232M2/48DC Substation-Rated RS-232 And TTL Logic Data Link/Repeater, 48VDC

The Comnet RLFDX232M2/48DC Substation-Rated RS-232 and TTL Logic Data Link/Repeater is engineered for robust performance in environments with extreme electromagnetic interference and voltage fluctuations. Offering exceptional compatibility with Garrettcom/Dymec's series, this device ensures reliability and operational safety in critical applications. With versatile connectivity options, long-distance optical transmission, and a hardened design, the RLFDX series is the ideal solution for mission-critical operations in electric utility substations and other demanding settings.

Comnet RLFDX232M2/48DC Key Features

• Compatibility: Fully electrically, mechanically, and optically identical to and backward-compatible with the Garrettcom/Dymec 5843, 5844, 5845, and 5846 Series, allowing for seamless integration.
• Transmission Flexibility: Supports full-duplex, half-duplex, or simplex transmission of RS-232, RS-422, RS-485 2/4-wire data, or TTL logic, providing versatility for various data communication needs.
• Compliant Reliability: Tested and certified to meet or exceed the requirements of IEEE 1613 Class 2 for electrical utility substations, ensuring dependable operation in compliance with industry standards.
• RS-232 Configuration: Features DTE/DCE switching for enhanced compatibility with different devices.
• Diagnostic Capabilities: Built-in diagnostic test mode evaluates copper and optical connections before activating the connected IED or RTU, enhancing troubleshooting efficiency.
• Wide Temperature Range: Operates effectively in temperatures from -40º to +85º C, eliminating the need for forced air cooling and ensuring reliability in harsh conditions.
• Extended Transmission Distances: Achieves optical transmission distances of up to 5 km over multimode fiber and 30 km over single-mode fiber, significantly improving operational range.
• Reliable Power Supply: Includes an internal high-reliability power supply with a screw terminal block for direct connection, ensuring maintenance-free operation.
• Visual Indicators: LED status indicators provide real-time confirmation of operational status, aiding in monitoring and diagnostics.
• Durable Enclosure: Features a rugged galvannealed and powder-coated panel-mount enclosure, constructed for durability in demanding environments.
• Ingress Protection: IP-30 rating offers protection from ingress of objects 2.5 mm and larger, enhancing device reliability.
• Optional Coating: Conformal coating of circuit boards is available for operating in humid conditions with condensation (additional charge applicable).
• USA Made: Proudly manufactured in the USA, ensuring high-quality craftsmanship.

Comnet RLFDX232M2/48DC Detailed Specifications
