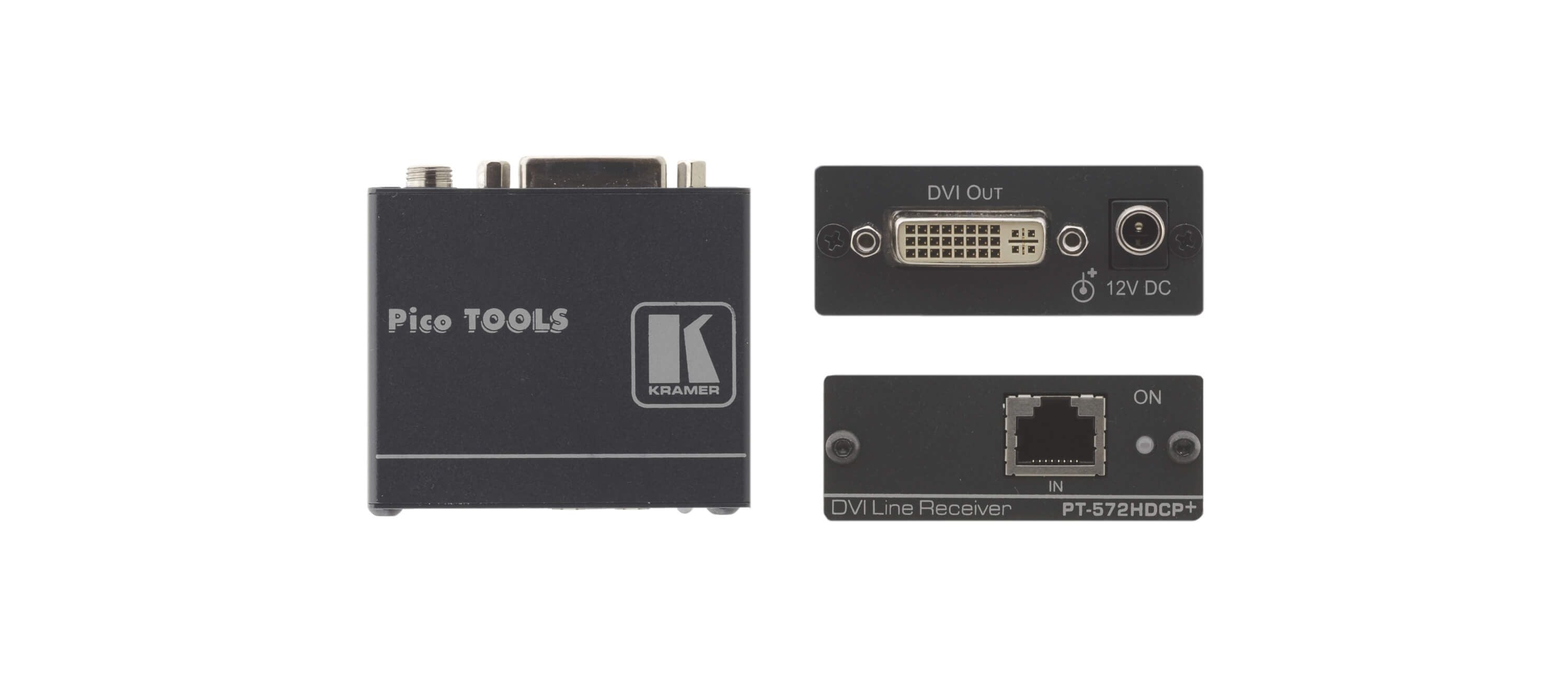

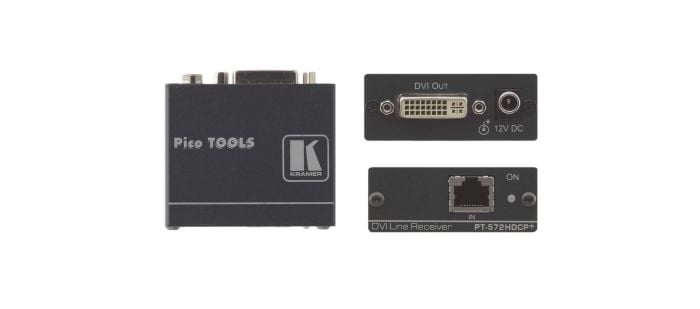

Kramer PT-572HDCP+ DVI Over Twisted Pair Receiver

The Kramer PT-572HDCP+ is a high-performance DVI Over Twisted Pair Receiver designed to deliver outstanding signal quality and flexibility for various applications, including medical environments. This device supports a maximum data rate of 4.95Gbps and features Kramer’s innovative DGKat™ technology, ensuring seamless transmission over twisted pair cables. With easy integration and compliance with industry standards, the PT-572HDCP+ provides excellent value for connecting DVI signals, making it a reliable choice for professionals.

Kramer PT-572HDCP+ Key Features

• Max. Data Rate: 4.95Gbps (1.65Gbps per graphic channel) – Ensures high-quality video output without lag or signal degradation.
• Certified for Medical Applications: Compliant with IEC 60601–1–2 – Guarantees electromagnetic compatibility, making it safe for use in sensitive medical environments.
• HDTV Compatible: Supports high-definition resolutions for superior image quality across various displays.
• HDCP Compliant: Ensures secure content transmission, preventing unauthorized copying of digital media.
• DGKat™ Signal Integration: Kramer’s unique technology for transmitting TMDS and control signals over twisted pair cables offers greater flexibility in installations.
• System Range: Up to 90m (295ft) at 1080i @60hz or up to 70m (230ft) at 1080p @ 60hz – Allows versatility in placement without compromising performance.
• EDID PassThru: Automatically passes EDID signals between source and display – Simplifies setup and ensures compatibility with various displays.
• Power Connect™ System: Powers the system through a single connection when devices are within 270ft (90m) of each other – Reduces cable clutter and simplifies installation.
• Ultra–Compact PicoTOOLS™: Four units can be rack mounted side–by–side in a 1U rack space – Saves space in equipment racks for efficient organization.

Kramer PT-572HDCP+ Detailed Specifications
