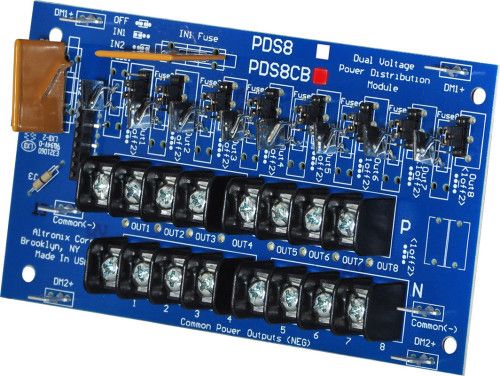

Altronix PDS8CB Dual Input Power Distribution Module

The PDS8CB from Altronix is a dual input power distribution module designed to steer power from either two low voltage AC or DC power sources. With a total of eight PTC protected outputs, it ensures reliable performance while providing essential safety features for your devices.

Altronix PDS8CB Power Distribution Features

• Input Voltage Range: 5VDC to 24VDC up to 9A each or 16VAC to 28VAC up to 9A each - accommodates a wide range of power supply options enhancing versatility.
• Selectable Outputs: Any of the eight PTC protected power outputs can follow either power Input 1 or Input 2 - allows for flexible configuration based on your specific needs.
• Serviceability: Individual outputs may be set to OFF position for servicing - simplifies maintenance and reduces downtime.
• Output Ratings: PTC protected outputs rated at 2A while maintaining total output current within the maximum rating of the power supply - provides protection against output overloads.
• Surge Suppression: Integrated surge suppression - protects connected devices from voltage spikes and extends their lifespan.
• Visual Indicators: Eight individual output LEDs - allows for easy monitoring of power distribution status.

Altronix PDS8CB Detailed Specifications
