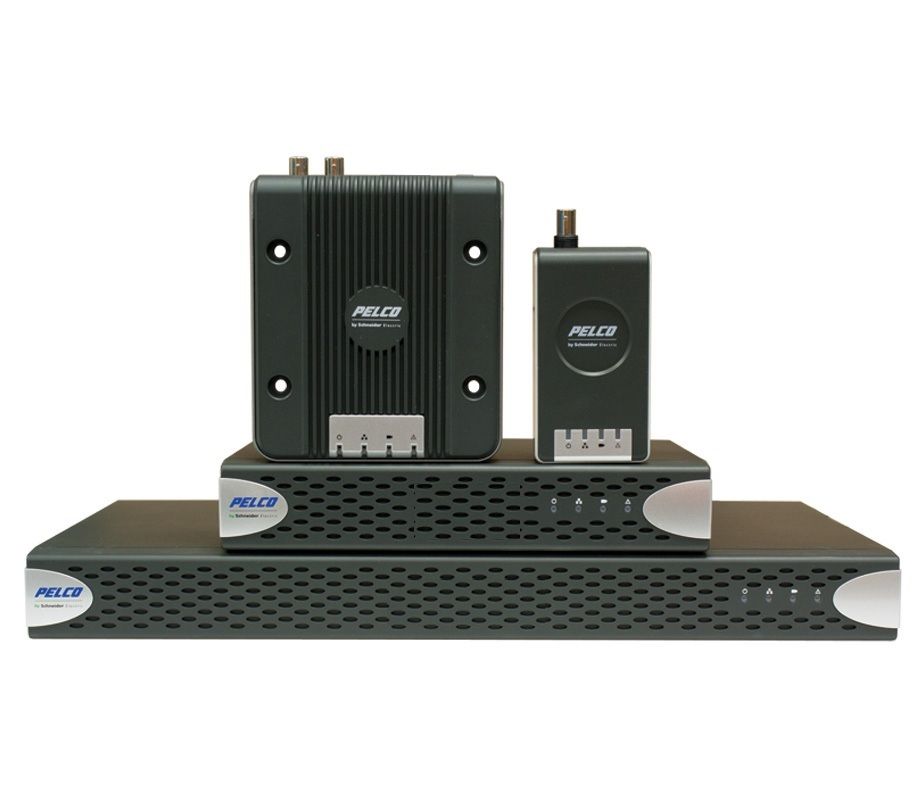

Pelco NET5508-EU 8 Channel H.264 Based Network Video Encoders
SKU
NET5508-EU
Model No
NET5508-EU
$1,191.54
Product Highlights
- Open Standards-Based Architecture
- MJPEG and H.264 Baseline, Main, or High Profile Compression
- Dual-Stream at up to D1; 30/25 Images per Second (ips) per Stream
- Integrated Coaxitron, Panasonic Proteus, and Pelco D and Pelco P PTZ Protocols
- ONVIF Profile-S Conformant
Speak to an expert
The Pelco NET5508-EU 8 Channel H.264 Based Network Video Encoder is designed to seamlessly integrate analog cameras into an IP video surveillance system while significantly enhancing image quality and reducing bandwidth requirements. With advanced H.264 compression technology, this encoder not only optimizes storage needs but also delivers exceptional video clarity, making it an ideal choice for modern security applications.
Pelco NET5508-EU Camera Features
- Open Standards-Based Architecture: Ensures compatibility with various systems and future-proofing investments.
- MJPEG and H.264 Compression: Offers options between Baseline, Main, and High Profile for optimized video quality and bandwidth usage.
- Dual-Stream Capacity: Supports up to D1 resolution at 30/25 ips per stream for flexible video output tailored to specific needs.
- Integrated PTZ Protocols: Supports prominent PTZ protocols, allowing versatile camera control and integration.
- ONVIF Profile-S Conformant: Guarantees interoperability with other ONVIF-compliant devices, enhancing system versatility.
Detailed Specifications for Pelco NET5508-EU
| Channel Support | 8 Channels |
| Compression Formats | H.264 (Baseline, Main, High Profile), MJPEG |
| Max Resolution | 720 x 480 (NTSC), 720 x 576 (PAL) |
| Video Streams | Dual Stream |
| Frame Rate | 30/25 ips per stream |
| PTZ Protocols Supported | Coaxitron, Pelco D, Pelco P, Panasonic Proteus |
| Analytics Features | Motion and Sabotage detection |
| ONVIF Compliance | Profile-S Conformant |
SKU  | NET5508-EU |
|---|---|
| Manufacturer | Pelco |
| NDAA | Compliant |
| No Of Channels | 8 Channel |
Audio Inputs  | 8 Audio Input Channels |
| Resolution | 704 X 288, 352 X 240, 352 X 288, 704 X 240, 704 X 480, 704 X 576, 720 X 480, 720 X 576 |
| Compression Method | H.264, MJPEG |
| Protocols | Coaxitron, Extended Coaxitron, Panasonic Proteus, Pelco D, Pelco P |
| COM Ports | RS-422, RS-485 |
| Features | PTZ Support |
| Frame rate | Up to 30 frames per second |
| Ethernet | BNC |
| Operating System | Linux |
| Video In | BNC, 1Vp-p ±10%; Hi-Z / 75 ohms |
