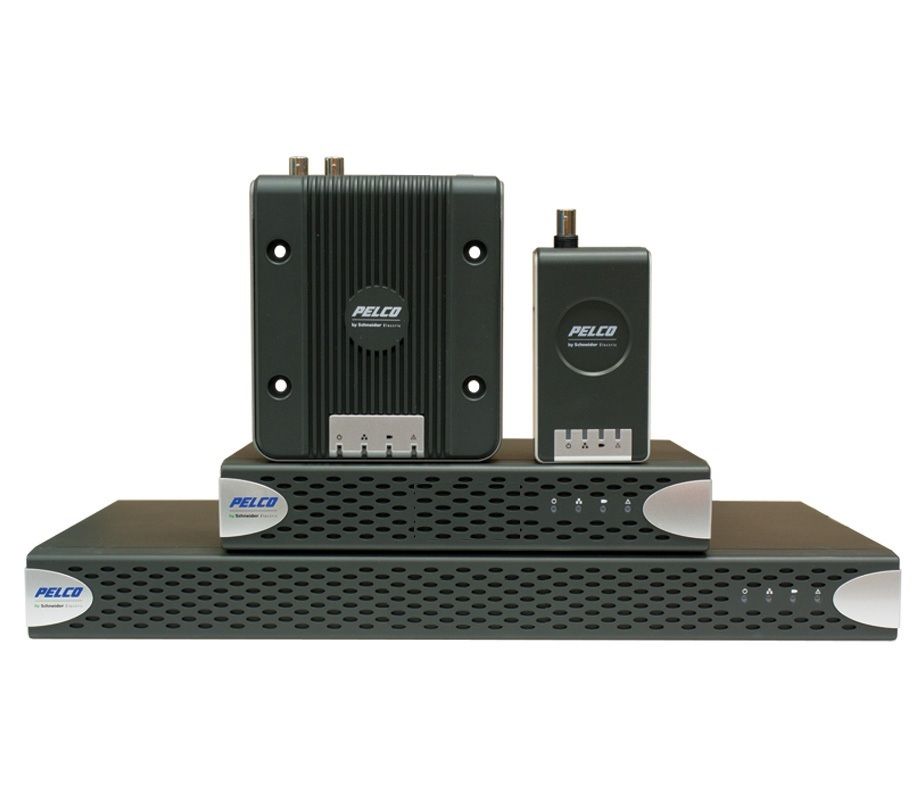

Pelco NET5508-AR 8 Channel H.264 Based Network Video Encoders
SKU
NET5508-AR
Model No
NET5508-AR
$1,128.27
Product Highlights
- Open Standards-Based Architecture
- MJPEG and H.264 Baseline, Main, or High Profile Compression
- Dual-Stream at up to D1; 30/25 Images per Second (ips) per Stream
- Integrated Coaxitron, Panasonic Proteus, and Pelco D and Pelco P PTZ Protocols
- ONVIF Profile-S Conformant
Speak to an expert
The Pelco NET5508-AR is an advanced 8 Channel network video encoder designed to seamlessly integrate analog cameras into modern IP video surveillance systems. With high-performance H.264 compression technology, it ensures superior image quality while significantly minimizing bandwidth and storage needs. This encoder adapts to diverse operational requirements with customizable streaming options and features sophisticated video analytics for enhanced security.
Features
- Open Standards-Based Architecture: Ensures compatibility with a variety of systems and future-proofing for upgrades.
- MJPEG and H.264 Baseline, Main, or High Profile Compression: Offers flexibility in configuring video streams for optimal quality and efficiency.
- Dual-Stream at up to D1; 30/25 Images per Second (ips) per Stream: Enables high-quality video output tailored to different user needs.
- Integrated Coaxitron, Panasonic Proteus, and Pelco D and Pelco P PTZ Protocols: Facilitates seamless control of PTZ cameras, providing enhanced surveillance capability.
- ONVIF Profile-S Conformant: Guarantees interoperability with various security devices and systems.
Pelco NET5508-AR Detailed Specifications
| Feature | Details |
|---|---|
| Model | NET5508-AR |
| Channels | 8 Channel |
| Compression Formats | MJPEG, H.264 (Baseline, Main, High Profile) |
| Stream Configuration | Dual-Stream Support |
| Resolution | Up to D1 (720 x 480 for NTSC, 720 x 576 for PAL) |
| Frame Rate | 30/25 ips per Stream |
| Protocols Supported | Coaxitron, Panasonic Proteus, Pelco D and P |
| Compliance | ONVIF Profile-S |
| Video Analytics | Motion and Sabotage Detection |
SKU  | NET5508-AR |
|---|---|
| Manufacturer | Pelco |
| NDAA | Compliant |
| No Of Channels | 8 Channel |
Audio Inputs  | 8 Audio Input Channels |
| Resolution | 704 X 288, 352 X 240, 352 X 288, 704 X 240, 704 X 480, 704 X 576, 720 X 480, 720 X 576 |
| Compression Method | H.264, MJPEG |
| Protocols | Coaxitron, Extended Coaxitron, Panasonic Proteus, Pelco D, Pelco P |
| COM Ports | RS-422, RS-485 |
| Features | PTZ Support |
| Frame rate | Up to 30 frames per second |
| Ethernet | BNC |
| Operating System | Linux |
| Video In | BNC, 1Vp-p ±10%; Hi-Z / 75 ohms |
