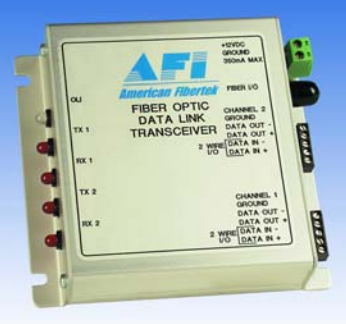

American Fibertek MX-480-ST Multiprotocol Configurable Data Module Rx Multi-mode 2 Fiber

The American Fibertek MX-480-ST transmits and receives one simultaneous channel of data over multimode optical fibers. The system is comprised of two transceivers forming a point-to-point communications link. The system is designed to be completely transparent to data protocol and can be configured as RS-485 (2 wire or 4 wire), RS-422, RS-232 or Manchester Code. For ease of installation, diagnostic indicators provide a quick visual indication of system status.

American Fibertek MX-480-ST Features

• Multi-protocol Data: switch selectable as RS-485 (2 or 4 wire), RS-422, RS-232 or Manchester Code, providing versatility to accommodate various communication needs.
• High Data Rate: Supports speeds up to DC to 115 Kb/s, ensuring efficient transmission of data.
• Activity Indicators: LED indicators for Data Tx and Rx for each Channel, allowing for quick and easy monitoring of system performance.

American Fibertek MX-480-ST Detailed Specifications
