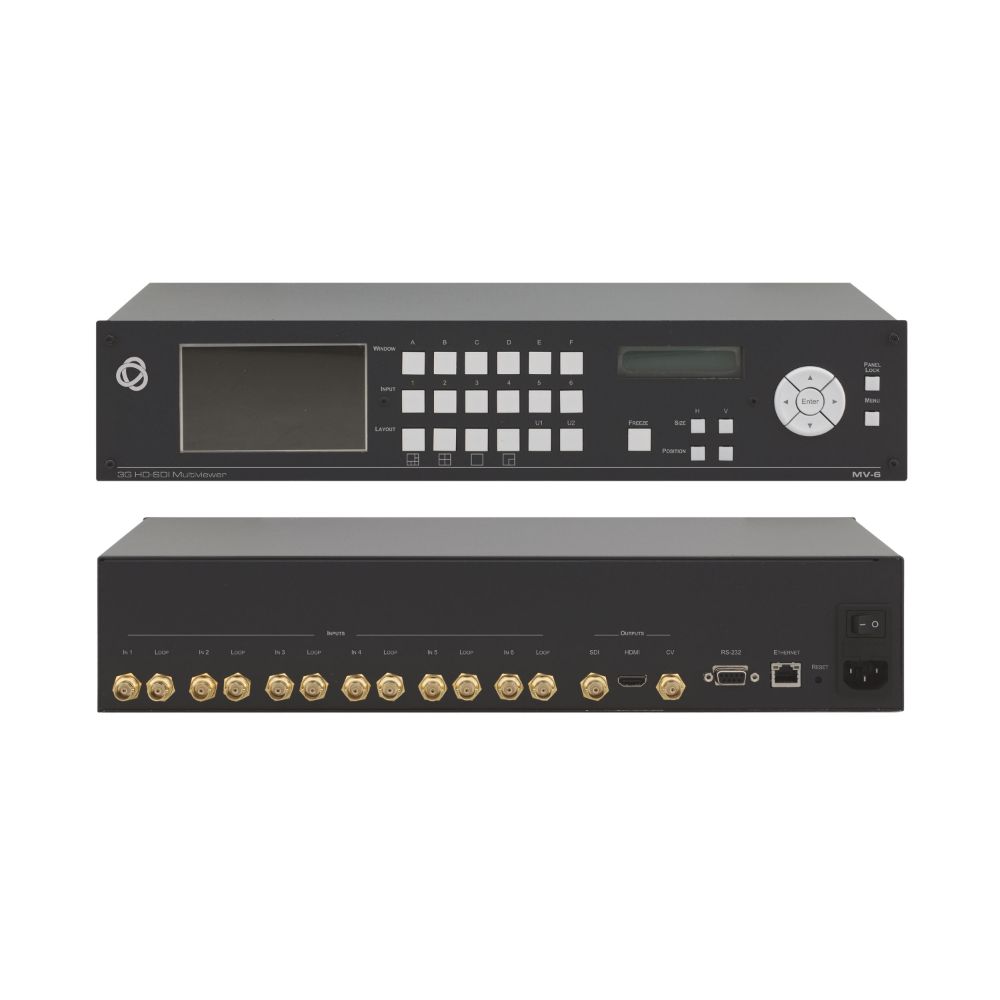

Kramer MV-6 3G HD–SDI Multiviewer

The Kramer MV-6 is a versatile, high-performance multiviewer designed for 3G HD-SDI video signals, allowing for seamless display of up to six inputs in any combination. It outputs images in SDI, HDMI, and CV formats, while supporting both pre-programmed and customizable screen divisions. The MV-6-MD model is specifically certified for medical applications, ensuring reliability in critical environments.

Features

• Max. Data Rate: 3Gbps for high-quality video transmission.
• HDTV Compatible: Supports a wide range of HDTV formats ensuring versatile usage.
• Standards Compliance: Certified for medical applications according to IEC 60601–1–2, guaranteeing safety and reliability.
• Kramer re–Klocking™ & Equalization Technology: Rebuilds digital signals to travel longer distances without loss of quality.
• Multi–Standard Operation: Compatible with SDI (SMPTE 259M), HD–SDI (SMPTE 292M), and 3G HD–SDI (SMPTE 424M) standards.
• Re–Clocking Looping Inputs: Provides stable input for consistent performance.
• Multi–Video Output Formats: Outputs in various formats including 3G HD–SDI, HDMI, and composite, enabling flexibility for different setups.
• Front Panel Preview Screen: 16:9 4.3in color LCD allows for easy monitoring of output.
• Text Overlay: Customizable text labels/icons can be added in each window with various settings for enhanced user experience.
• Screen Handling Buttons: Features for freeze, size, position, and multiple layout options for user flexibility.
• Flexible Control Options: Multiple control methods including front panel, OSD, Ethernet & RS–232, with supplied PC control software.
• Worldwide Power Supply: Operates on 100–240V AC, suitable for global use.
• Medically Certified Version: Contact local Kramer representative for specific model details.
