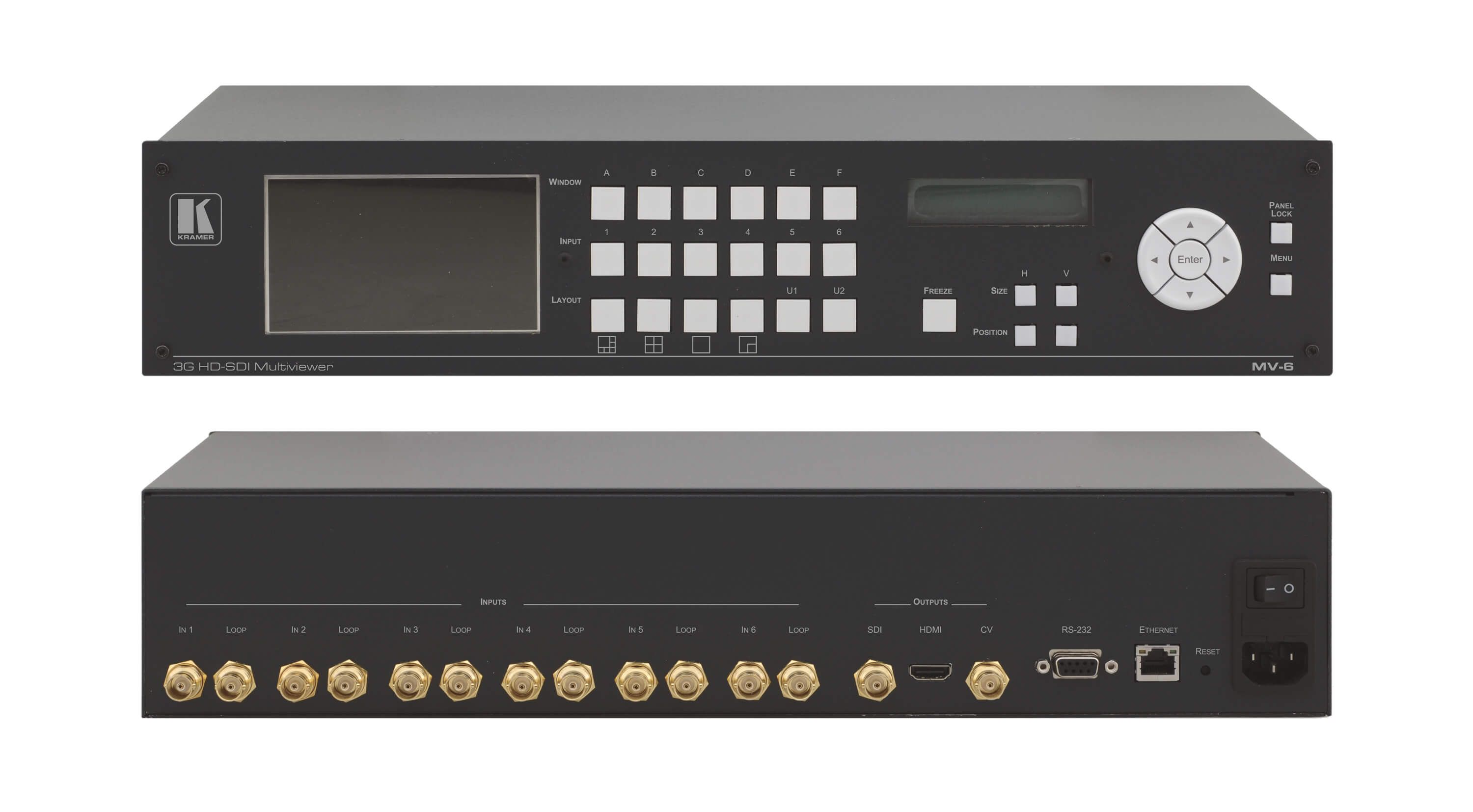

Kramer MV-6-110V 3G HD–SDI Multiviewer

The Kramer MV-6-110V 3G HD-SDI Multiviewer is a high-performance device designed to manage and display up to six 3G HD-SDI video signals simultaneously. With support for various output formats and customizable screen layouts, this multiviewer is an ideal solution for both professional and medical applications, ensuring versatility and reliability in your video operations.

Kramer MV-6-110V Camera Features

Features

• Max. Data Rate: 3Gbps – Supports high-speed video transmission for seamless performance.
• HDTV Compatible: Ensures compatibility with high-definition displays and video sources.
• Standards Compliance: Certified for medical applications according to IEC 60601-1-2 – Guarantees safety and reliability for sensitive environments.
• Kramer re-Klocking™ & Equalization Technology: Rebuilds the digital signal to travel longer distances without degradation.
• Multi-Standard Operation: Supports SDI (SMPTE 259M), HD-SDI (SMPTE 292M), and 3G HD-SDI (SMPTE 424M) – Provides flexibility for different video standards.
• Re-Clocking Looping Inputs: Enhances signal integrity by minimizing jitter and ensuring stable video output.
• Multi-Video Output Formats: Outputs in 3G HD-SDI (SMPTE 424M), HDMI, and composite with scaling and refresh rate adjustments for optimal viewing.
• Front Panel Preview Screen: 16:9 4.3in color LCD displays the output of the unit in real-time for easy monitoring.
• Text Overlay: Allows customization of text labels/icons in each window with adjustable settings for color and alignment.
• Screen Handling Buttons: Offers freeze, size, position, and pre-programmed/user-definable layouts for user convenience.
• Flexible Control Options: Includes a front panel with LCD, OSD, Ethernet & RS-232 connectivity, and PC control software for comprehensive management.
• Worldwide Power Supply: 100-240V AC – Adaptable for use in various international settings.
• Medically Certified Version: Contact local Kramer representative for specific medical certifications.
