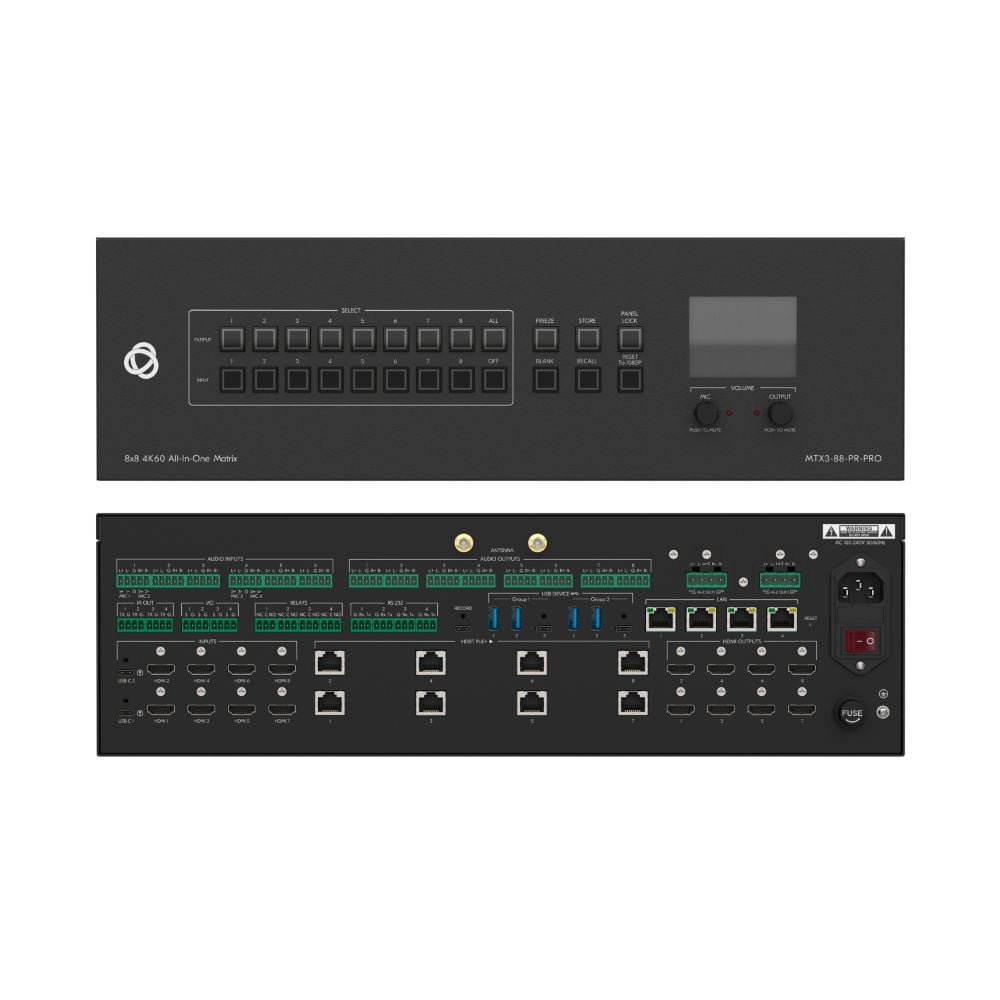

Kramer MTX3-88-PR-PRO 8x8 4K60 All In One Hybrid Presentation Matrix

The MTX3-88-PR-PRO is a high-performance video processing and fast-switching scaling matrix, with independent audio-visual (AV) and USB routing. The matrix has unmatched flexibility with USB-C, HDMI, HDBaseT 3.0 ports, air-casting inputs and network stream output.

The unit is enhanced with audio capabilities including an integrated DSP, integrated dual-zone power amplifier, DANTE and USB audio routing.

The flexibility and processing power of the MTX3-88-PR-PRO makes it a perfect system for numerous deployment scenarios.

Kramer MTX3-88-PR-PRO Key Features

• Premium All–in–one Matrix: High–resolution scaling matrix with multi–signal routing of wired and wireless user interfaces
• Dual–screen USB–C Routing: Capability allowing to connect any Alt–mode DP capable laptop with an extended desktop to be displayed on any selected pair of outputs
• Eight HDBaseT 3.0 Extension Ports: With PoE remote device powering and configurable direction (input or output) for unmatched system flexibility
• Advanced Video Processing: Includes several Multiview presentation layouts and two independent video wall presentations
• Rich Audio Interface Options: Supports analog (line, microphone and speaker), Dante and USB audio devices
• Sophisticated Audio DSP: Configured via an intuitive graphic dashboard style user interface for echo-free, noise-free, and crystal-clear sound
• Fast AV Routing: Provides clean and instantaneous routing between matrix inputs and outputs with transitions under 1 second
• Hybrid–meeting Collaborative Sessions: Controllable multi–signals routing of both AV and USB host inputs for independent or USB-follow–AV mode routing
• Six Local USB Device Ports: Divisible into two groups for enhanced host-device USB routing flexibility
• 60W USB-C Charging: Fast charging capabilities for connected devices
• High–Performance Scaling Experience: Built-in ProcAmp & high–resolution scaling technology for optimal image quality
• Open Standard Streaming: Content sharing and recording via H264/5 over IT LAN and WAN networks
• Room Control: Includes gateways, relays, RS–232 and GPIOs for a smooth room control experience
• Standard Enterprise–Grade Secured Operation: IT–grade authentication for secured LAN connectivity, complying with OWASP–10 standards
• Comprehensive Management: Local panel buttons, remote management via web–UI, and IP–driven API control for service flexibility

Kramer MTX3-88-PR-PRO Detailed Specifications
