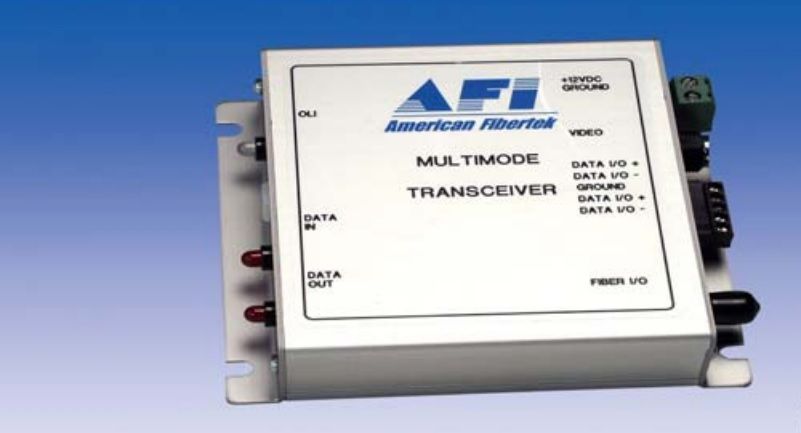

American Fibertek MR-0500 20mA Current Loop Data Transceiver, Multi-Mode, ST Connectors

American Fibertek MR-0500 - Key Features

The American Fibertek MR-0500 is a low cost, low profile 20mA current loop data transceiver system. Data transmit and receive is accommodated on one multimode optical fiber.
These products are compatible with the AMAG M2100 DBU and M2150 8DBC access control equipment. The 0500s are factory set to be passive inputs and active outputs. However, the units have internal jumpers to allow independent field setting of the inputs and outputs to either active or passive, if required. Transceivers are packaged in compact extrusions.

Features

• 20mA Current Loop Data Transceiver - Provides efficient data transmission over a single multimode fiber, enhancing connectivity and reducing installation costs.
• Diagnostic: LED Power Indicator - Easily monitor device status with Tx Data Activity lights, ensuring real-time performance tracking.
• Modular Transceiver - Simplifies upgrades and replacements, promoting user-friendly maintenance.
• Multimode Optics - Facilitates reliable data communication across distances while staying budget-friendly.
• Active Output, Passive Input Ports - Flexible configuration with field-setting capabilities allows customization based on user needs.
