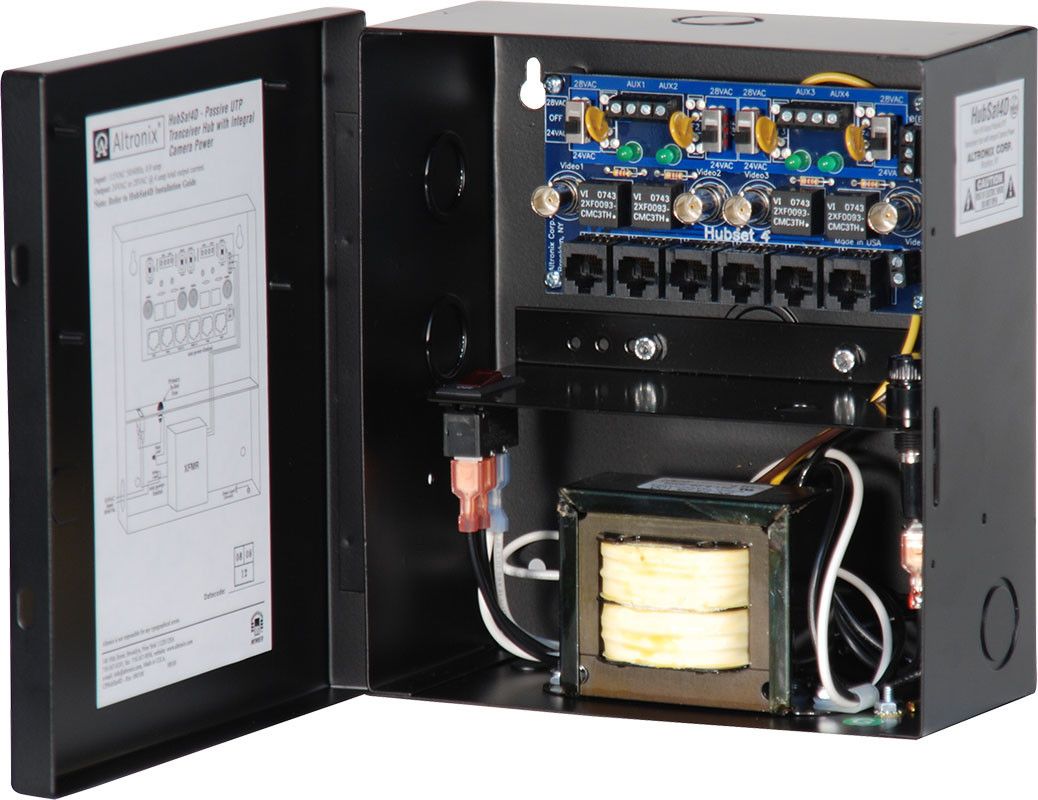

Altronix HUBSAT4DIV 4 Channel UTP Passive Transceiver Hub

Introducing the Altronix HUBSAT4DIV 4 Channel UTP Passive Transceiver Hub, designed to simplify video transmission for surveillance systems. This efficient hub transmits UTP video, RS422/RS485 data, and power over a single CAT-5 or higher structured cable, all while providing up to 750 ft. of range per channel. With its robust features, including integral camera power and surge suppression, the HUBSAT4DIV is the ideal solution for both fixed and PTZ cameras, ensuring reliable performance and elimination of voltage drop issues.

Altronix HUBSAT4DIV Channel Features

• Video Transmission: Four channels of video over twisted pair cable up to 750 ft. per channel, providing long-distance connectivity for multiple cameras.
• Power Options: Individually selectable 24VAC or 28VAC outputs with up to 1A max. per channel, ensuring reliable power supply to each connected camera.
• Data Compatibility: Supports RS422/RS485 data inputs for seamless camera communication and control.
• Surge Protection: Integrated surge suppression and PTC protected outputs enhance safety and reliability in various environments.
• Visual Indicators: Individual power LED indicators for each channel facilitate easy monitoring of power status.
• Temperature Resilience: Operates efficiently within a wide temperature range and humidity levels, suitable for diverse installations.

Altronix HUBSAT4DIV Detailed Specifications
